Architecture |

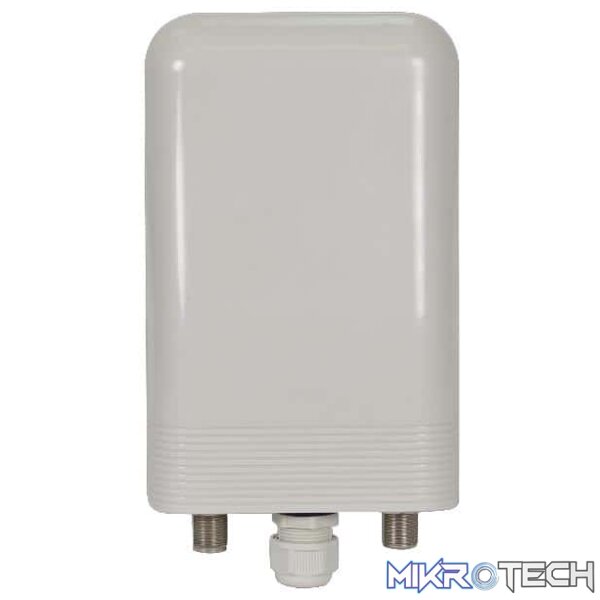

Outdoor Unit with connectors for external antenna (2 x N-Type)
|
---|
Wireless Topology |
PtMP Subscriber unit, PtP unit
|
---|
Max Capacity |
500 Mbps net aggregate throughput (up to 250 Mbps per direction)
250 Mbps net aggregate throughput, upgradable to 500 Mbps with license ket
|
---|
Range |
Up to 40 km / 25 miles (in PtMP mode)
Up to 80 km / 50 miles (in PtP mode)
|
---|
Channel Bandwidth |
Configurable: 10, 20, 40, 80 MHz (for the default band)
|
---|
Dynamic Channel BW selection |
20/40/80 MHz
|
---|
Modulation |
OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
|
---|
Error correction |
FEC k = 1/2, 2/3, 3/4, 5/6
|
---|
Adaptive modulation and Coding |
Supported
|
---|
Duplex technology |
TDD
|
---|
DFS |
Supported (see product specific datasheet for details)
|
---|
Antenna modes |
MIMO 2×2, diversity, adaptive MIMO/diversity
|
---|
Dynamic Bandwidth |
Committed Information Rate (CIR) and Best Effort service level
|
---|
Nomadic mode of operation |
Supported
|
---|
Max TX power |
26 dBm
|
---|
Encryption |
AES128
|
---|
TDD intra site synchronization |
Supported
|
---|
Uplink/Downlink allocation |
Configurable: Symmetric or Asymmetric
|
---|
QoS |
Packet classification to 4 priority queues according to 802.1P or Diffserv
|
---|
VLAN Support |
802.1Q, QinQ, 4094 VLANs
|
---|
ODU management |
IPv4/IPv6 dual-stack, SNMPv1, SNMPv3, HTTP/HTTPS using web browser
|
---|
802.1x |
Supported (for PtMP mode)
|
---|
Option 82 |
Supported (for PtMP mode)
|
---|
DHCP filtering |
Supported (for PtMP mode)
|
---|
IGMP snooping |
Supported (for PtMP mode)
|
---|
PPPoE filtering |
Supported (for PtMP mode)
|
---|
RADIUS authorization |
Supported (for PtMP mode)
|
---|
RADIUS User authentication |
Supported
|
---|
Syslog |
Supported
|
---|
Dimension |
19.5 (w) x 12.5 (h) x 4.0 (d)cm / 7.7" (w) x 4.9" (h) x 1.6" (d)
|
---|
Weight |
0.5Kg / 1.1lbs
|
---|
Power consumption |
13W
|
---|
Power feeding |
Power provided over ODU-IDU cable
|
---|
Operating temperature |
-35°C to 60°C / -31°F to 140°F
|
---|
Humidity |
100% condensing
|
---|
Environmental protection |
EN/IEC 60529, IP67, NEMA Type 4 Enclosure
|
---|
