Product Description
Overview:

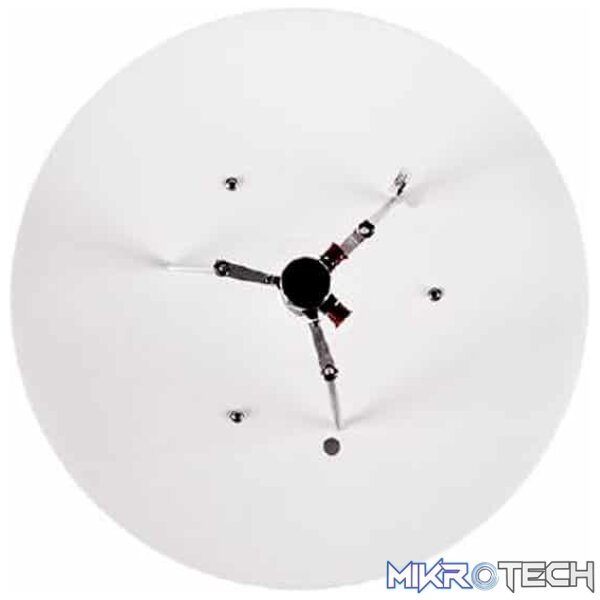

The RW-ANT5828-DISH-DP is a high performance Dual Polarization-Directional antenna, 5.6 degree beam-width, supports 4.9-6.06 GHz frequency range.
Features:
- Lightweight and rugged design
- Dual Linear (Vertical & Horizontal) polarization
- N-TYPE RF connectors
- Easily installed
Product Specifications
| Weight | 22.50 kg |
|---|---|
| Dimensions | 80.000000 × 80.000000 × 21.000000 cm |
| Frequency range | 4.9 – 6.06 GHz |
| Gain | 28 |
| VSWR | 1.7 : 1 (typ) |
| 3db Beamwidth Azimuth | 5.6 ° |
| 3db Beamwidth Elevation | 5.6 ° |
| Polarization | Dual Linear (Vertical & Horizontal) |
| Side-lobes Level | 20 dB |
| Cross polarization | 30 dB |
| F/B Ratio | -35 dB Mechanical |
| Dimensions | Diameter = 700mm; Depth = 500mm |
| Weight | 5 Kg |
| Radome | Plastic Environmental |
| Temperature range | -20 Deg. to +65 Deg. |
| Wind speed | Survival 160 km/h; Operation 110 km/h |
