Product Description
Overview:

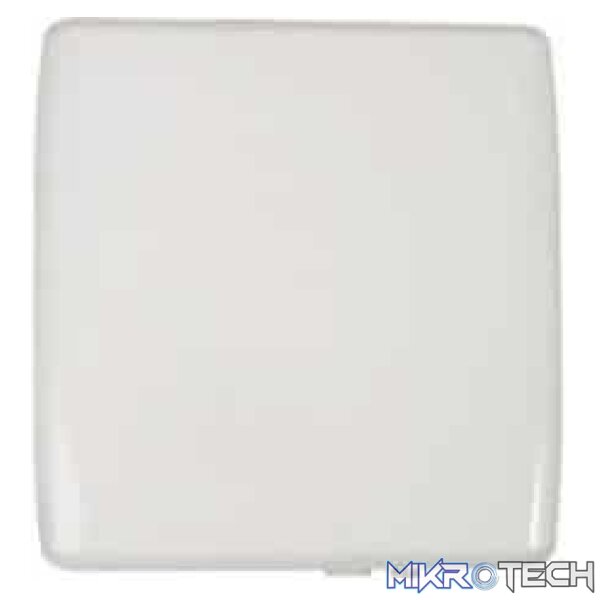

RW-5PG5-9635is a sector Base Station unit (HBS) that includes two radios (3.xGHz and 5.xGHz) in a single unit. The unit provides up to 750 Mbps net aggregate throughput per band (the operational band is user configurable). The unit will be able to provide up to2x750Mbps simultaneously from both bands throughfuture software upgrade.RW-5PG5-9635includes one smart beamforming antennafor each band. It also includes an embedded GPSunit.RW-5PG5-9635supports 3.xGHz and 5.xGHz Universal and FCC bands.
Features:
- Dual band base station radio with smart beamforming antennassupporting 3.xGHz and 5.xGHz band.
- Up to 750 Mbps net aggregated throughput
- Configurable operating band: 3.XGHz or 5.XGHz
- Long range -Up to 40 km / 25miles
- Supports up to 64 HSUs
- CIRor Best-Effort per HSU/SU
- Built-in GPS
- Advanced MIMO, OFDM and Diversity technologies
- Robust and reliable operation in harsh environments
- Ease of operation
Product Specifications
| Weight | 4.50 kg |
|---|---|
| Dimensions | 35.600000 × 37.100000 × 9.500000 cm |
| Architecture | Outdoor unit with a smart beamforming integrated antenna |
| PoE to ODU Interface | Outdoor CAT-5e; Maximum cable length: 75m for 1000BaseT |
| Data Interfaces | 1000BaseT (over PoE) or SFP(1GbE, supports single and multi-mode) |
| Max capacity | 750 Mbps net aggregate throughput |
| Subscriber Units support | Up to 64 |
| Range | Up to 40 km / 25 miles |
| Modulation | MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Adaptive Modulation & Coding | Supported |
| Smart Bandwidth Management (DBA) | Supported |
| Diversity | Dynamic selection between MIMO and Diversity |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 128; |
| Support Indoor units | RADWIN PoE devices (RW-9921-104x) |
| Uplink / Downlink Allocation | Configurable: Symmetric or Asymmetric |
| End to End Latency | Typical: 3.5msec @ 2 HSUs; 20msec @ 64 HSUs |
| Layer 2 | Bridging learning of 5K MAC addresses |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN Support | 802.1Q, QinQ, 4094 VLANs |
| TDD Intra Site Synchronization | Supported |
| TDD Inter Site Synchronization | Supported through built-in GPS receiver |
| ODU Management | IPv4/IPv6 dual-stack; SNMP v1 and v3; HTTP using web browser |
| Channel Bandwidth | Configurable: 10, 20, 40,80 MHz(for the default band) |
| DFS | NA |
| Max EIRP | Max EIRP 44dBm |
| Supported Bands; Band; Radio Compliance | 4.9 GHz Universal; 4.900-4.990 GHz Universal; Universal 5.1 GHz Universal; 5.150-5.335 GHz Universal; Universal 5.4 GHz Universal (default); 5.475-5.720 GHz Universal; Universal 5.8GHz Universal; 5.730-5.845 GHz Universal; Universal 5.8 GHz FCC/IC; 5.730-5.845 GHz FCC/IC; FCC 47CFR Part 15.247 5.9 GHz Universal; 5.730-5.950 GHz Universal; Universal |
| ODU Dimensions | 35.6(w) x 37.1(h) x 9.5(d) cm |
| ODU Weight | 4.5Kg / 9.92 lbs |
| Power Feeding | Power provided over ODU-IDU-POE cable |
| Power Consumption | 55W |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m) |
| US/CAN (cTUVus) | UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22 |
| CE/IEC | EN/IEC 60950-1, EN/IEC 60950-22 |
| FCC | 47 CFR, Part15, Subpart B, Class B |
| ETSI | EN 301 489-1, EN 301 489-4, 301 489-17 |
| CAN/CSA-CEI/IEC | CISPR 22-2010 Class B |
| Gain | 19dBi |
| VSWR | 2.0:1 |
| 3 dB Azimuth Beamwidth | 90Deg.(typ) |
| Polarization | Dual Linear vertical and Horizontal |
| Sidelobes Level | -20dB(typ) |
| Cross Polarization | -30dB(typ) |
| F/B Ratio | -25dB |
| Port To Port Isolation | 35dB(typ) |
| Lightning Protection | DC grounded |
