Architecture |
Outdoor Unit with an integrated antenna
|
---|
PoE to ODU Interface |
Outdoor CAT-5e, Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT
|
---|
Max Capacity |
500 Mbps net aggregate throughput (up to 250 Mbps per direction)
|
---|
Range |
Up to 40 km / 25 miles
|
---|
Channel Bandwidth |
Configurable: 10, 20, 40, 80 MHz (for the default band)
|
---|
Modulation |
MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
|
---|
Adaptive Modulation & Coding |
Supported
|
---|
Automatic Channel Selection |
Supported upon power up
|
---|
DFS |
Not Supported
|
---|
Diversity |
Supported
|
---|
Max Tx Power |
26 dBm
|
---|
Duplex Technology |
TDD
|
---|
Error Correction |
FEC k = 1/2, 2/3, 3/4, 5/6
|
---|
Encryption |
AES 128
|
---|
Support Indoor units |
RADWIN PoE devices (RW-9921-101X)
|
---|
Uplink / Downlink Allocation |
Configurable: Symmetric or Asymmetric
|
---|
Layer 2 |
HUB Mode
|
---|
QoS |
Packet classification to 4 priority queues according to 802.1P or Diffserv
|
---|
VLAN Support |
802.1Q, QinQ, 4094 VLANs
|
---|
ODU Management |
IPv4/IPv6 dual-stack, SNMPv1, SNMPv3, HTTP/HTTPS using web browser
|
---|
802.1x |
Supported
|
---|
Option 82 |
Supported
|
---|
Non PPPoE filtering |
Supported
|
---|
DHCP Filter |
Supported
|
---|
IGMP snooping |
Supported
|
---|
Nomadic subscribers |
Supported
|
---|
RADIUS Authorization |
Supported
|
---|
RADIUS User authentication |
Supported
|
---|
Syslog |
Supported
|
---|
Band |
CBW 10MHz CBW 20MHz CBW 40MHz CBW 80MHz Radio Compliance [GHz] [GHz] [GHz] [GHz]
|
---|
5.4 GHz Universal (default) |
5.470-5.725 5.465-5.730 5.455-5.740 5.455-5.760 Universal
|
---|
4.9 GHz Universal |
4.900-4.995 4.900-4.995 4.900-4.995 4.900-4.995 Universal
|
---|
6.0 GHz Universal |
5.695-6.055 5.690-6.060 5.680-6.070 5.680-6.090 Universal
|
---|
5.9 GHz Universal |
5.725-5.850 5.725-5.850 5.725-5.850 5.725-5.850 Universal
|
---|
5.1 GHz Universal |
5.145-5.340 5.140-5.345 5.130-5.355 5.130-5.375 Universal
|
---|
5.1 GHz UBR |
5.125-5.880 5.125-5.880 5.125-5.880 5.125-5.880 Universal
|
---|
ODU Dimensions |
32.5(w) x 32.5(h) x 6.4(d) cm
|
---|
ODU Weight |
2 kg / 4.41 lbs
|
---|
Power Feeding |
Power provided over ODU-IDU cable
|
---|
Power Consumption |
13W
|
---|
Operating Temperatures |
-35°C to 60°C / -31°F to 140°F
|
---|
Humidity |
100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m)
|
---|
US/CAN (cTUVus) |
UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22
|
---|
CE/IEC |
EN/IEC 60950-1, EN/IEC 60950-22
|
---|
FCC |
47 CFR, Part15, Subpart B, Class B
|
---|
ETSI |
EN 300 386, EN 301 489-1, EN 301 489-4
|
---|
CAN/CSA-CEI/IEC |
CISPR 22-2010 Class B
|
---|
Gain |
21 dBi
|
---|
VSWR |
2.0 : 1
|
---|
3 dB Azimuth Beamwidth |
10 Deg. (typ)
|
---|
Polarization |
Dual Linear (Vertical and Horizontal)
|
---|
Sidelobes Level |
-12 dB(typ)
|
---|
Cross Polarization |
-25dB (typ)
|
---|
F/B Ratio |
-25 dB
|
---|
Port To Port Isolation |
30 dB (typ)
|
---|
Lightning Protection |
DC Grounded
|
---|

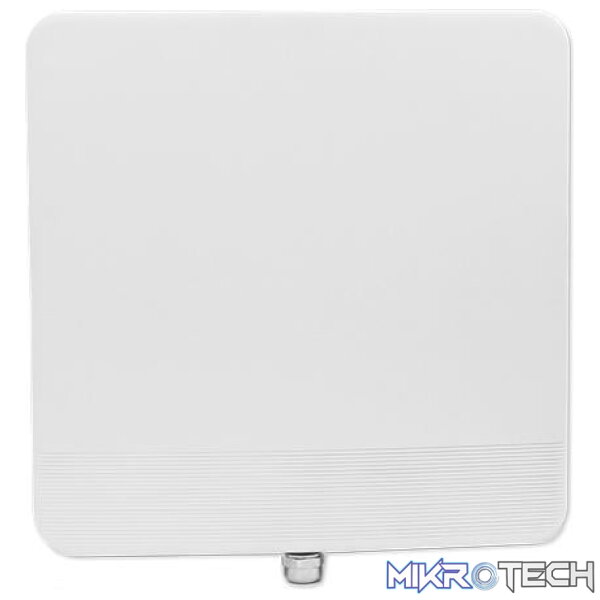

Be the first to review “RADWIN 5000 CPE-Pro 5GHz 500Mbps – 22dBi Integrated Antenna”
