Product Description
Overview:

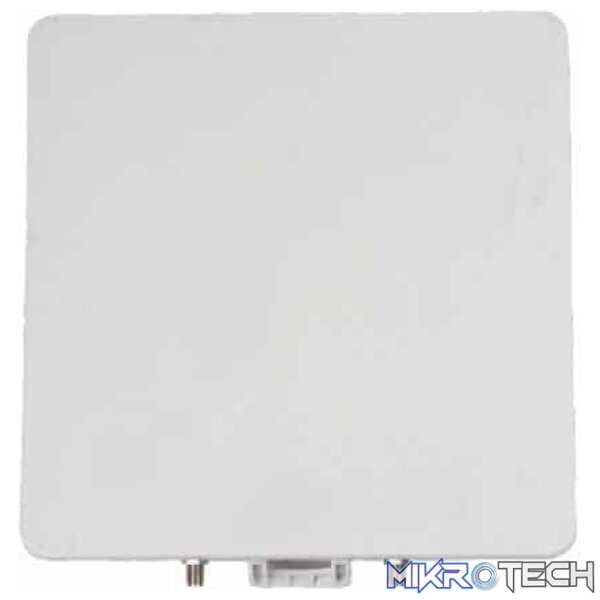

RADWIN 5000 CPE-Pro 5GHz 500Mbps – Embedded. 2 x SMA(F) Straigth for ext. ant.
The RW-5SP500-54-EMB-0 is a SU PRO Model subscriber unit that delivers up to 500 Mbps net aggregate throughput and supports SLA (CIR) or Best-Effort service level.
Product highlights:
- Up to 500 Mbps net aggregated throughput
- Long range – Up to 40 km / 25 miles
- Guaranteed Service Level Agreement (SLA) per HSU
- Exceptional short and constant latency
- Advanced MIMO, OFDM, and Diversity technologies
- Robust and reliable operation in harsh conditions, extreme temperatures, and nonline-of-sight scenarios
- Ease of operation and maintenance
Product Specifications
| Weight | 0.50 kg |
|---|---|
| Dimensions | 18.000000 × 4.000000 × 13.000000 cm |
| Architecture | Outdoor Unit with an embedded antenna and connectorized for external antenna (2 x SMA) |
| PoE to ODU Interface | Outdoor CAT-5e, Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT |
| Max Capacity | 500 Mbps net aggregate throughput (up to 250 Mbps per direction) |
| Range | Up to 40 km / 25 miles |
| Channel Bandwidth | Configurable: 10, 20, 40, 80 MHz (for the default band) |
| Modulation | MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Adaptive Modulation & Coding | Supported |
| Automatic Channel Selection | Supported upon power up |
| DFS | Not Supported |
| Diversity | Supported |
| Max Tx Power | 24 dBm |
| Duplex Technology | TDD |
| Error Correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Encryption | AES 128 |
| Support Indoor units | RADWIN PoE devices (RW-9921-101X) |
| Uplink / Downlink Allocation | Configurable: Symmetric or Asymmetric |
| Layer 2 | HUB Mode |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN Support | 802.1Q, QinQ, 4094 VLANs |
| ODU Management | IPv4/IPv6 dual-stack, SNMPv1, SNMPv3, HTTP/HTTPS using web browser |
| 802.1x | Supported |
| Option 82 | Supported |
| Non PPPoE filtering | Supported |
| DHCP Filter | Supported |
| IGMP snooping | Supported |
| Nomadic subscribers | Supported |
| RADIUS Authorization | Supported |
| RADIUS User authentication | Supported |
| Syslog | Supported |
| Band | CBW 10MHz CBW 20MHz CBW 40MHz CBW 80MHz Radio Compliance [GHz] [GHz] [GHz] [GHz] |
| 5.4 GHz Universal (default) | 5.470-5.725 5.465-5.730 5.455-5.740 5.455-5.760 Universal |
| 5.8 GHz FCC/IC | 5.730-5.845 5.730-5.845 5.730-5.845 5.730-5.845 FCC 47CFR Part 15.407, ISED RSS-247 |
| 4.9 GHz Universal | 4.900-4.995 4.900-4.995 4.900-4.995 4.900-4.995 Universal |
| 6.0 GHz Universal | 5.695-6.055 5.690-6.060 5.680-6.070 5.680-6.090 Universal |
| 5.9 GHz Universal | 5.725-5.850 5.725-5.850 5.725-5.850 5.725-5.850 Universal |
| 5.1 GHz Universal | 5.145-5.340 5.140-5.345 5.130-5.355 5.130-5.375 Universal |
| 5.8 GHz MII | 5.725-5.850 5.725-5.850 5.725-5.850 5.725-5.850 CMIIT RTA |
| 5.1 GHz UBR | 5.125-5.880 5.125-5.880 5.125-5.880 5.125-5.880 Universal |
| ODU Dimensions | 18.2(w) x 18.2(h) x 6.0(d) cm |
| ODU Weight | 0.5 kg / 1.10 lbs |
| Power Feeding | Power provided over ODU-IDU cable |
| Power Consumption | 13W |
| Operating Temperatures | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m) |
| US/CAN (cTUVus) | UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22 |
| CE/IEC | EN/IEC 60950-1, EN/IEC 60950-22 |
| FCC | 47 CFR, Part15, Subpart B, Class B |
| ETSI | EN 300 386, EN 301 489-1, EN 301 489-4 |
| CAN/CSA-CEI/IEC | CISPR 22-2010 Class B |
| Gain | 16 dBi |
| VSWR | 1.7:1 |
| 3 dB Azimuth Beamwidth | 17 Deg. (typ) |
| Polarization | Dual Linear (Vertical and Horizontal) |
| Sidelobes Level | -12 dB(typ) |
| Cross Polarization | -30dB (typ) |
| F/B Ratio | -25 dB |
| Port To Port Isolation | 35 dB (typ) |
| Lightning Protection | DC Grounded |
