Architecture | Outdoor Unit with integrated antenna |
---|
Wireless topology | PtMP Subscriber unit, PtP unit |
---|
POE and ODU interfaces | Outdoor CAT-5e, Maximum cable length: 75m for 1000BaseT |
---|
Max capacity | 500 Mbps net aggregate throughput (up to 250 Mbps per direction)
250 Mbps net aggregate throughput Upgradable to 500 Mbps with license
key |
---|
Range | Up to 40 km / 25 miles |
---|
Channel bandwidth | Configurable: 10, 20, 40, 80 MHz (for the default band) |
---|
Dynamic Channel BW selection | 20/40/80 MHz |
---|
Modulation | OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
---|
Error correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
---|
Adaptive modulation and Coding | Supported |
---|
Duplex technology | TDD |
---|
DFS | Supported |
---|
Antenna modes | MIMO 2×2, diversity, adaptive MIMO/diversity |
---|
Dynamic Bandwidth | Committed Information Rate (CIR) and Best Effort service level |
---|
Nomadic mode of operation | Supported |
---|
Max TX power | 26 dBm |
---|
Encryption | AES128 |
---|
Uplink/Downlink allocation | Configurable: Symmetric or Asymmetric |
---|
Sub convergence layer | Layer2, HUB Mode |
---|
QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
---|
VLAN support | 802.1Q, QinQ, 4094 VLANs |
---|
ODU management | IPv4/IPv6 dual-stack, SNMPv1, SNMPv3, HTTP/HTTPS using web browser |
---|
802.1x | Supported (for PtMP mode) |
---|
Option 82 | Supported (for PtMP mode) |
---|
DHCP filtering | Supported (for PtMP mode) |
---|
IGMP snooping | Supported (for PtMP mode) |
---|
PPPoE filtering | Supported (for PtMP mode) |
---|
RADIUS Authorization | Supported (for PtMP mode) |
---|
RADIUS User authentication | Supported |
---|
Syslog | Supported |
---|
Dimension | 32.5(w) x 32.5(h) x 6.4(d) cm / 12.8" (w) x 12.8" (h) x 2.5" (d) |
---|
Weight | 2 kg/4.41lbs |
---|
Power consumption | 13W |
---|
Power feeding | Power provided over ODU-IDU cable |
---|
Operating temperature | -35°C to 60°C / -31°F to 140°F |
---|
Humidity | 100% condensing |
---|
Enclosure protection | IP67 per EN/IEC 60529, NEMA Type 4 Enclosure |
---|

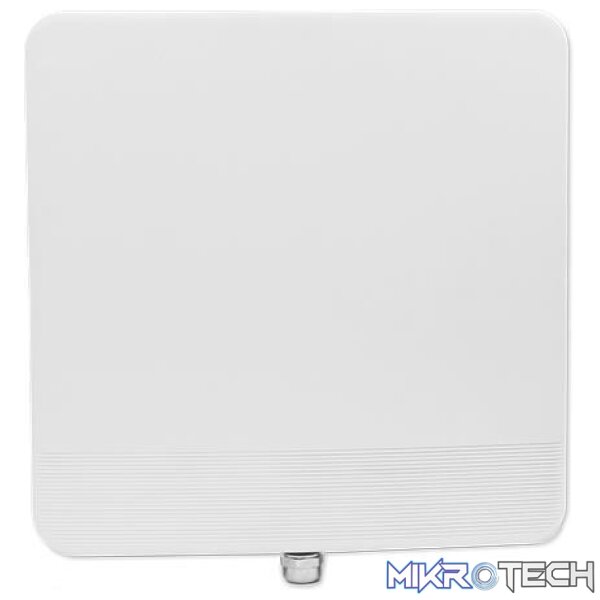

Be the first to review “RADWIN 5000 CPE-Pro 5GHz 250Mbps – 22dBi Integrated Antenna”
