Product Description
Overview:

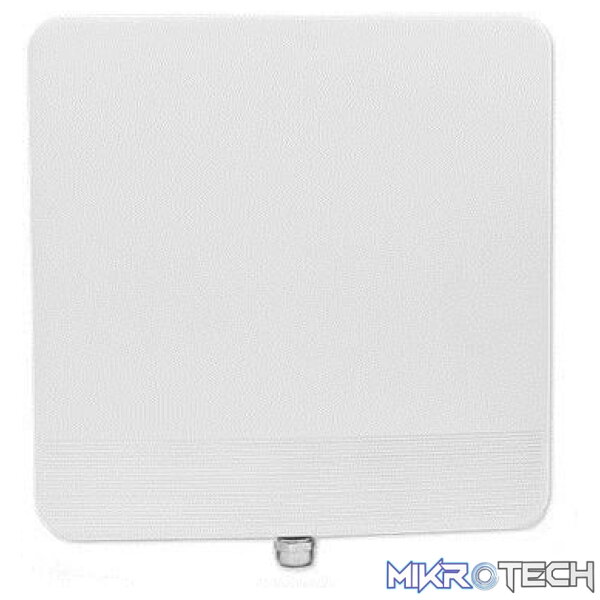

RADWIN 5000 CPE-Air 5GHz 500Mbps – Integrated
The CPE-Air is an attractively priced 500Mbps outdoor Subscriber Unit with an integrated antenna, that operates in the 5GHz band. It is interoperable with all RADWIN 5GHz base stations.
Product highlights:
- Up to 500Mbps Subscriber unit
- 22dBi Integrated antenna
- 4.9-6.0 GHz
- Up to 40 km / 25 miles
- Best-effort service level
- Automated installation via mobile app
- Interoperable with all RADWIN Base stations
- Highly durable – IP 67
Product Specifications
| Weight | 3.06 kg |
|---|---|
| Dimensions | 40.000000 × 39.000000 × 10.000000 cm |
| Architecture | Outdoor Unit with integrated antenna |
| Wireless topology | PtMP Subscriber unit |
| POE and ODU interfaces | Outdoor CAT-5e, Maximum cable length: 75m for 1000BaseT |
| Max capacity | 500 Mbps net aggregate throughput (up to 250Mbps per direction) |
| Range | Up to 40 km / 25 miles |
| Channel bandwidth | Configurable: 10, 20, 40, 80 MHz (for the default band) |
| Dynamic Channel BW selection | 20/40/80 MHz |
| Modulation | OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Error correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Adaptive modulation and Coding | Supported |
| Duplex technology | TDD |
| DFS | Supported |
| Antenna modes | MIMO 2×2, diversity, adaptive MIMO/diversity |
| Dynamic Bandwidth management | Best Effort service level only |
| Max TX power | 26 dBm |
| Encryption | AES128 |
| Uplink/Downlink allocation | Configurable: Symmetric or Asymmetric |
| Sub convergence layer | Layer2, HUB Mode |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN support | 802.1Q, QinQ, 4094 VLANs |
| ODU management | IPv4/IPv6 dual-stack, SNMPv1, SNMPv3, HTTP/HTTPS using web browser |
| 802.1x | Supported |
| Option 82 | Supported |
| DHCP filtering | Supported |
| IGMP snooping | Supported |
| PPPoE filtering | Supported |
| RADIUS authorization | Supported |
| RADIUS user authentication | Supported |
| Syslog | Supported |
| Dimension | 32.5(w) x 32.5(h) x 6.4(d) cm / 12.8″ (w) x 12.8″ (h) x 2.5″ (d) |
| Weight | 1.22Kg / 2.69lbs |
| Power consumption | 13W |
| Power feeding | Power provided over ODU-IDU cable |
| Operating temperature | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing |
| Enclosure protection | IP67 per EN/IEC 60529, NEMA Type 4 Enclosure |
| Gain | 22 dBi |
| VSWR | 2.0 : 1 |
| 3 dB Azimuth beamwidth | 10° (typical) |
| 3 dB Elevation Beamwidth | 10° (typical) |
| Polarization | Dual Linear (Vertical and Horizontal) |
| Sidelobes level | -12 dB(typical) |
| Cross polarization | -25 dB (typical) |
| F/B Ratio | 25 dB |
| Port To Port isolation | 30 dB (typical) |
| Lightning protection | DC Grounded |
