Product Description
Overview:

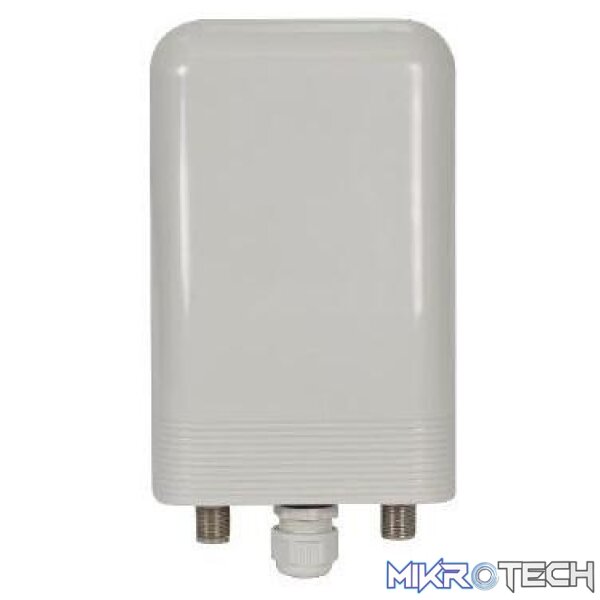

RADWIN 5000 CPE-Air 5GHz 500Mbps – Connectorised, (2 x N-Type for external antenna)
The CPE-Air is a 500Mbps outdoor connectorized Subscriber Unit with N-type connectors for external antenna connection, that operates in the 5GHz band. It is interoperable with all RADWIN base stations.
Product highlights:
- Up to 500Mbps PtMP subscriber unit
- 4.9-6.0 GHz
- Up to 40 km / 25 miles
- Best-effort service level
- Automated installation via mobile app
- Interoperable with all RADWIN Base stations
- Highly durable – IP 67
Product Specifications
| Weight | 1.04 kg |
|---|---|
| Dimensions | 26.000000 × 18.000000 × 10.000000 cm |
| Architecture | Outdoor Unit with connectors for external antenna (2 x N-Type) |
| Wireless Topology | PtMP Subscriber unit |
| Max Capacity | 500 Mbps net aggregate throughput (up to 250 Mbps per direction) |
| Range | Up to 40 km / 25 miles |
| Channel Bandwidth | Configurable: 10, 20, 40, 80 MHz (for the default band) |
| Dynamic Channel BW selection | 20/40/80 MHz |
| Modulation | OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) |
| Error correction | FEC k = 1/2, 2/3, 3/4, 5/6 |
| Adaptive modulation and Coding | Supported |
| Duplex technology | TDD |
| DFS | Supported (see product specific datasheet for details) |
| Antenna modes | MIMO 2×2, diversity, adaptive MIMO/diversity |
| Dynamic Bandwidth management | Best Effort service level |
| Max TX power | 26 dBm |
| Encryption | AES128 |
| Uplink/Downlink allocation | Configurable: Symmetric or Asymmetric |
| QoS | Packet classification to 4 priority queues according to 802.1P or Diffserv |
| VLAN Support | 802.1Q, QinQ, 4094 VLANs |
| ODU management | IPv4/IPv6 dual-stack, SNMPv1, SNMPv3, HTTP/HTTPS using web browser |
| 802.1x | Supported |
| Option 82 | Supported (for PtMP mode) |
| DHCP filtering | Supported (for PtMP mode) |
| IGMP snooping | Supported (for PtMP mode) |
| PPPoE filtering | Supported (for PtMP mode) |
| RADIUS authorization | Supported (for PtMP mode) |
| RADIUS User authentication | Supported |
| Syslog | Supported |
| Dimension | 19.5 (w) x 12.5 (h) x 4.0 (d)cm / 7.7″ (w) x 4.9″ (h) x 1.6″ (d) |
| Weight | 0.5Kg / 1.1lbs |
| Power consumption | 13W |
| Power feeding | Power provided over ODU-IDU cable |
| Operating temperature | -35°C to 60°C / -31°F to 140°F |
| Humidity | 100% condensing |
| Environmental protection | EN/IEC 60529, IP67, NEMA Type 4 Enclosure |
