Power Dynamics – Prm1202 100V 2-Ch Mixer-Amplifier 2-Zone

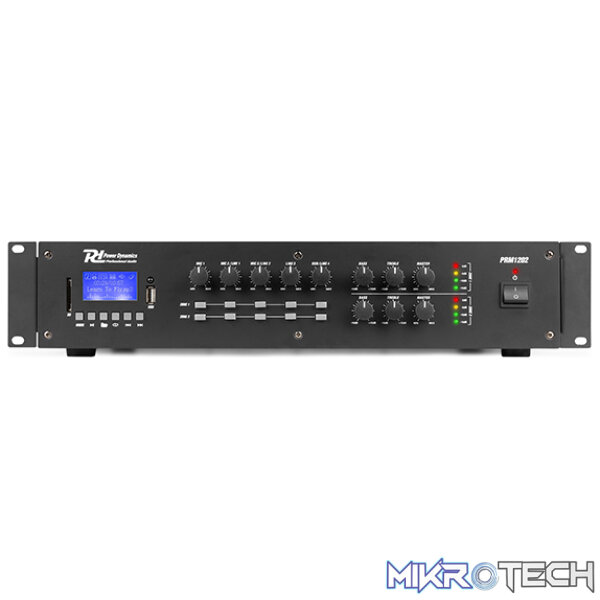

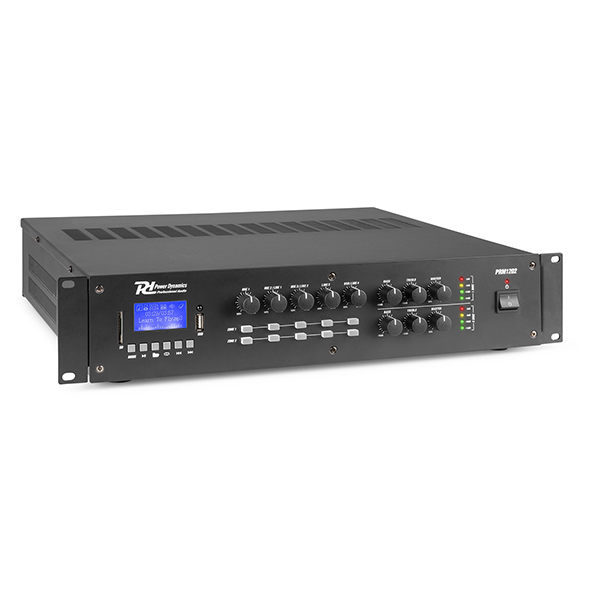

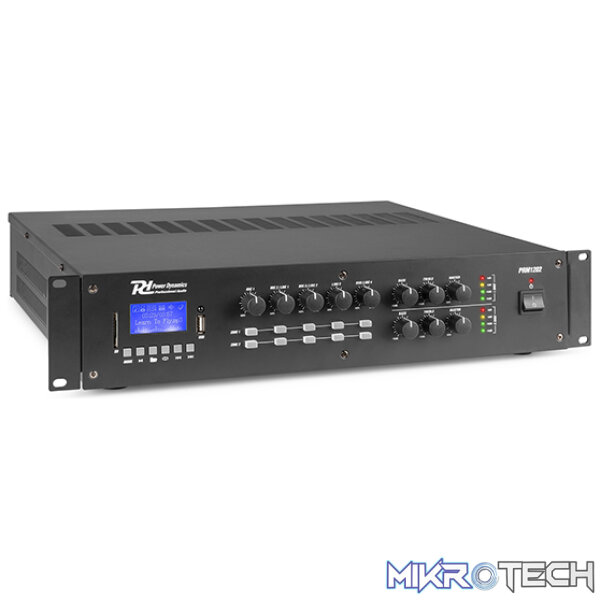

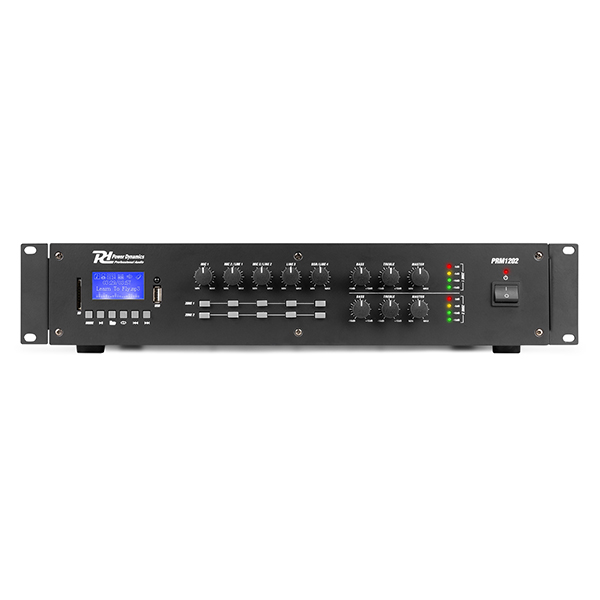

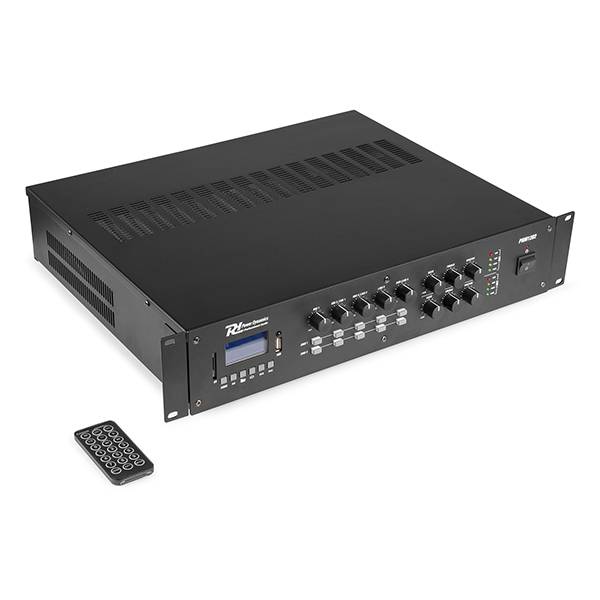

The PRM1202 is a rack-mountable amplifier with 2 separate 120W outputs that can either be used as 100V amplifier or as a standard low-impedance amplifier. This 2 zone amplifier is designed for multi-room systems requiring different audio sources. It’s equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. The PRM1202 is provided with switchable XLR inputs with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.

FEATURES:

• 2-Zone amplifier with 2 independent output zones
• 2x 120W Class-D power Section
• MP3 Player with USB/SD slot
• Using BT wireless technology for audio streaming

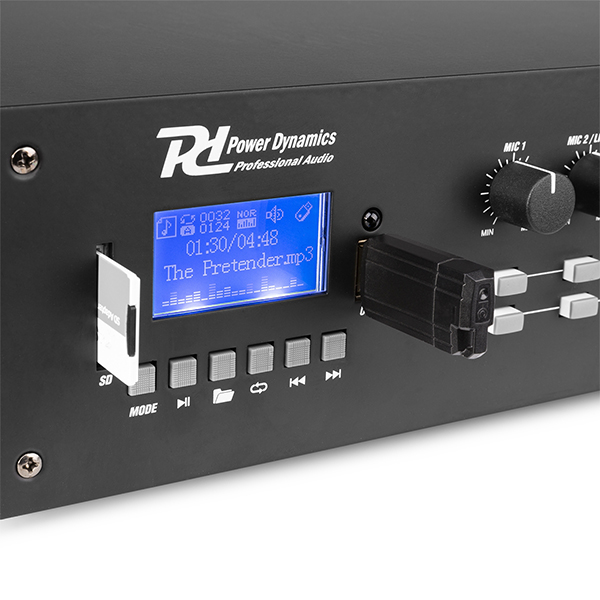

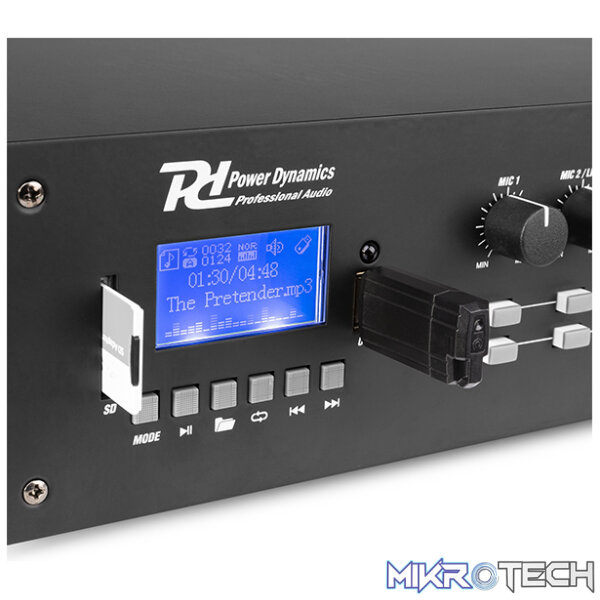

• LCD control panel with ID3 tag
• 2x Mic/line inputs 6.3mm and 2x RCA line input and 1x RCA line output
• XLR Microphone input with switchable phantom power (24V) and VOX priority
• 100V or 4/8 Ohm speaker output

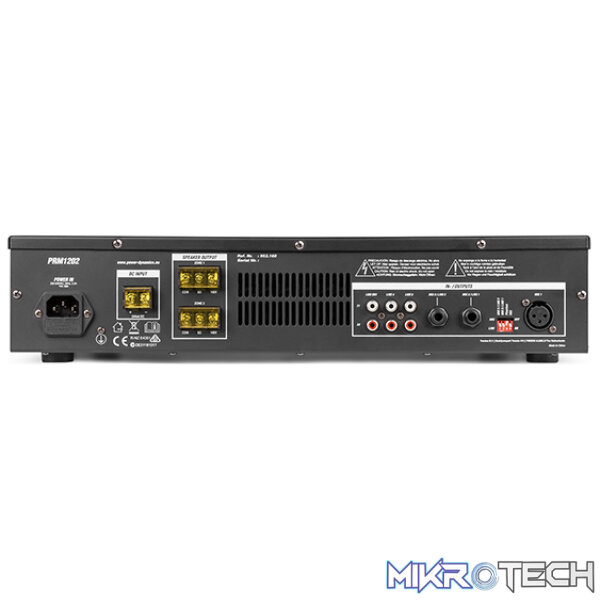

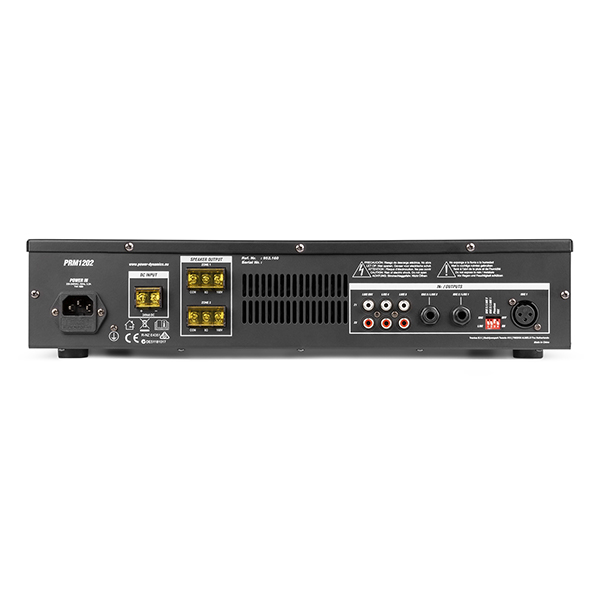

• Zone outputs: 2x Speaker Terminal (100V / 4Ohm / 8Ohm / Com)
• Bass and treble controls
• 19″ Rack mountable (2U)
• Emergency operation by 24V battery (not supplied)
• Overload protected

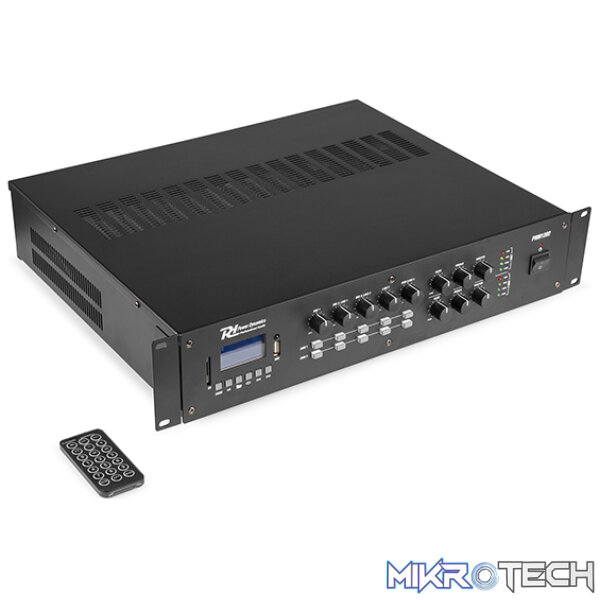

• Including remote control

SPECIFICATIONS:

• Playback options :
  BT streaming, SD, USB
•
  Output power: :
  RMS 240W
•
  Impedance :
  100V, 4 Ohm, 8 Ohm
•
  Frequency response :
  100Hz – 24.000Hz
•
  Power supply :
  100-240VAC 50/60Hz
•
  Dimensions (L x W x H) :
  390 x 385 x 95mm (without feet 88mm)
•
  Weight :
  1.4kg
•
  Accessories :
  Power cable, Remote control
