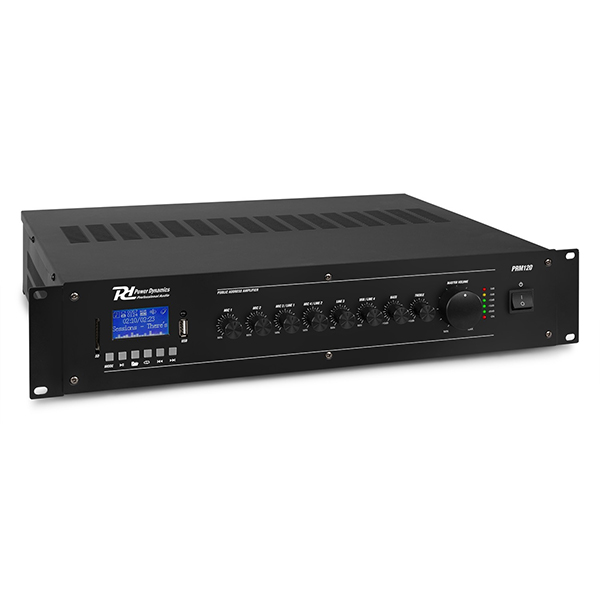

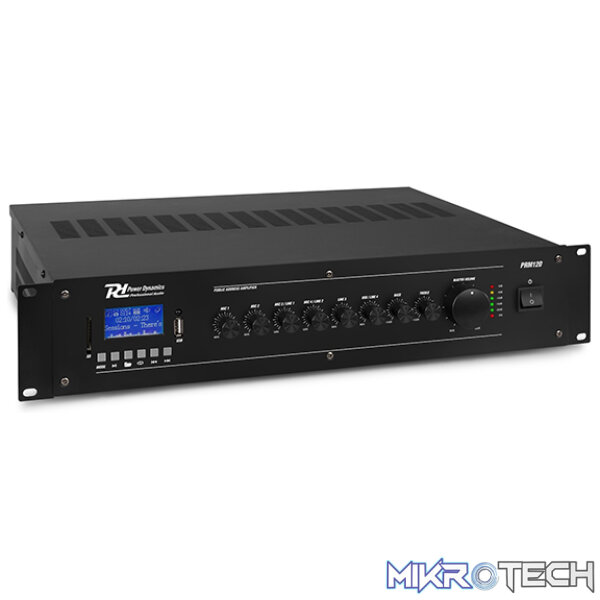

Power Dynamics – Prm120 100V Mixer-Amplifier

The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.

FEATURES:

• 120W 100V amplifier
• MP3 Player with USB/SD slots
• Using BT wireless technology for audio streaming

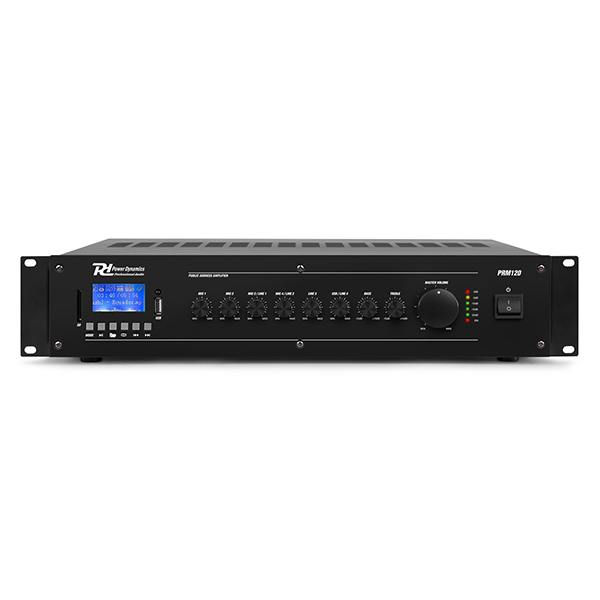

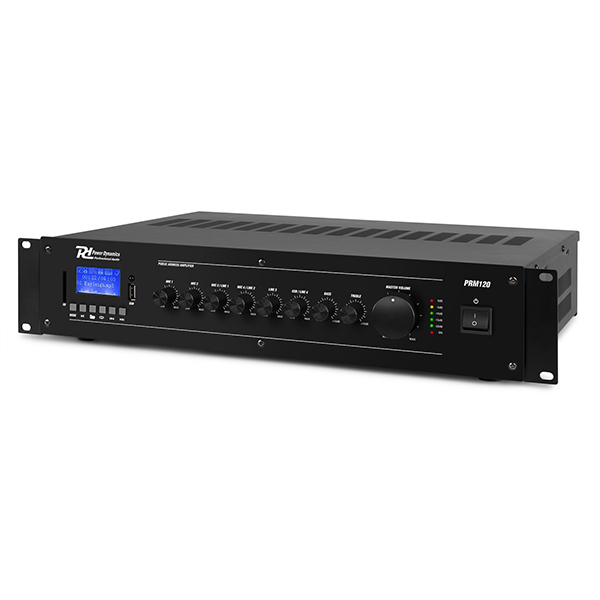

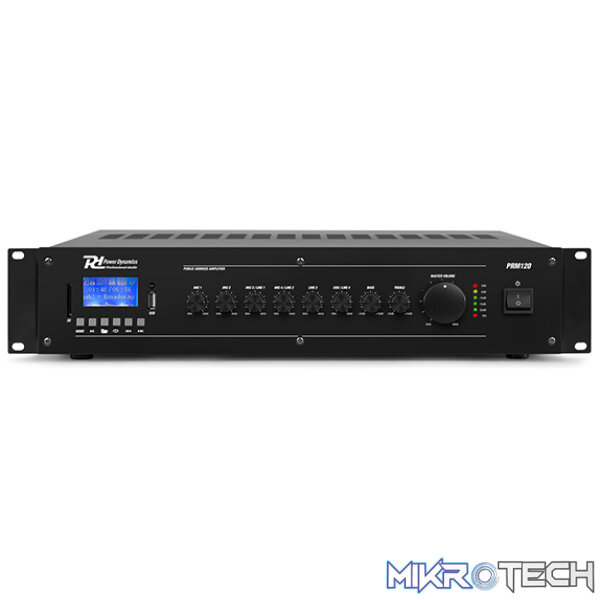

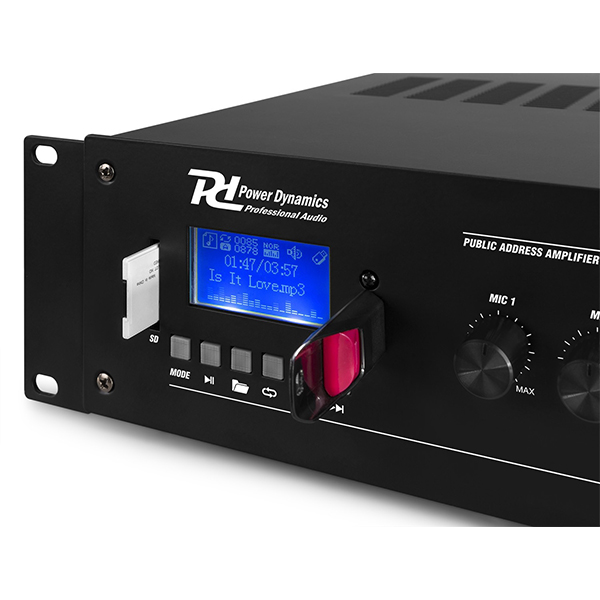

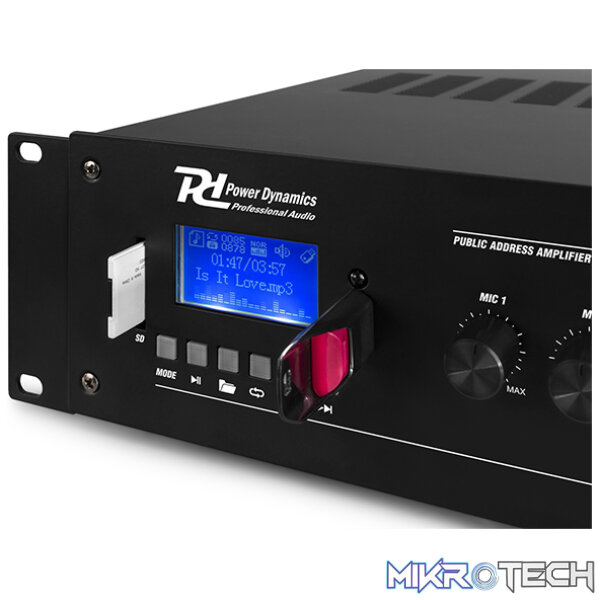

• LCD control panel with ID3 tag

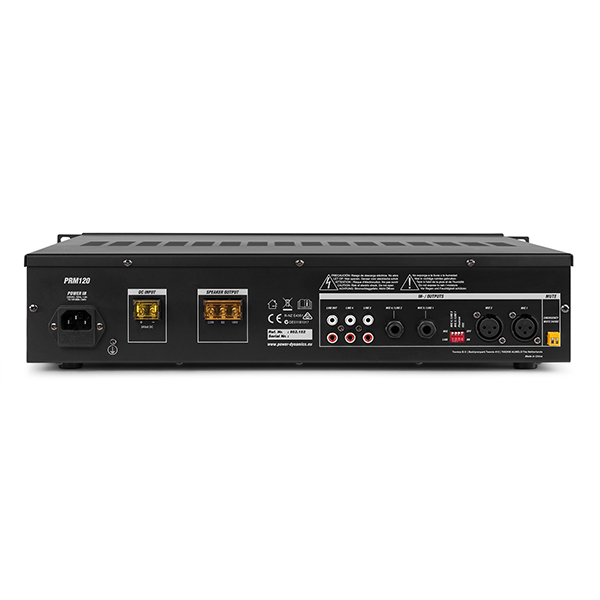

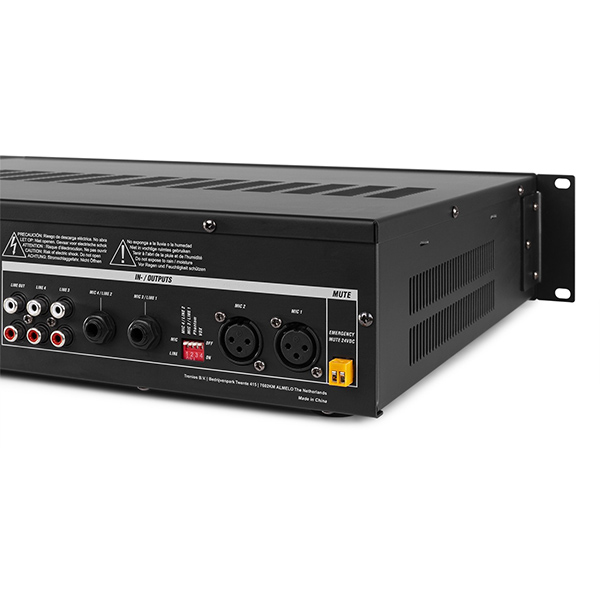

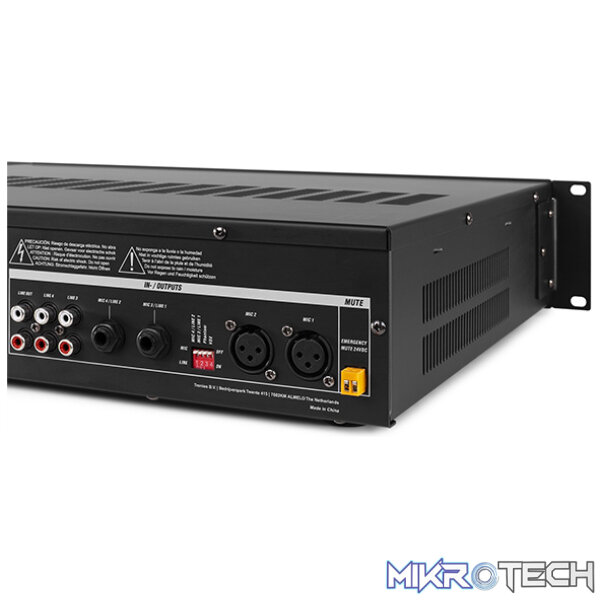

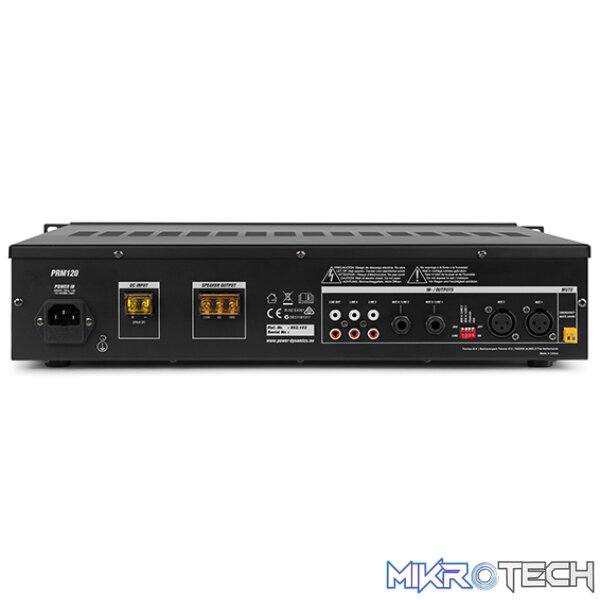

• 2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output
• 2x XLR microphone inputs with switchable phantom power (24V) and VOX priority

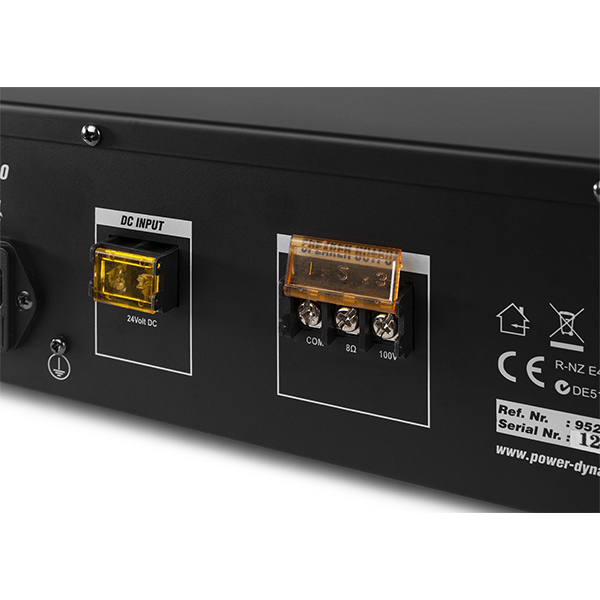

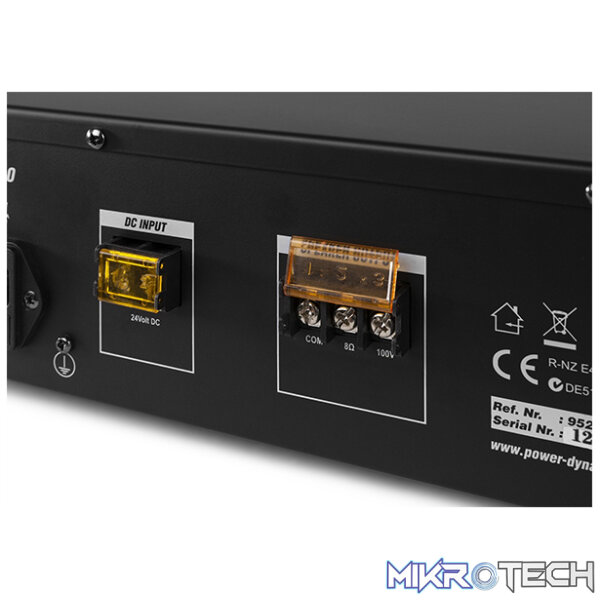

• 100V or 8 Ohm speaker output
• Bass and treble controls

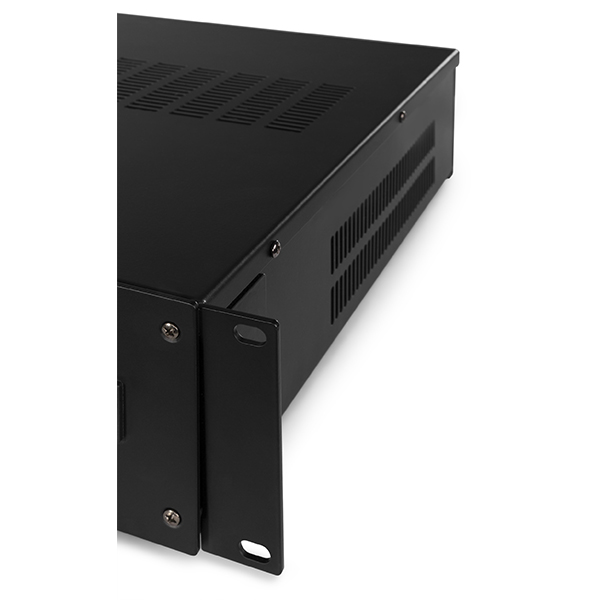

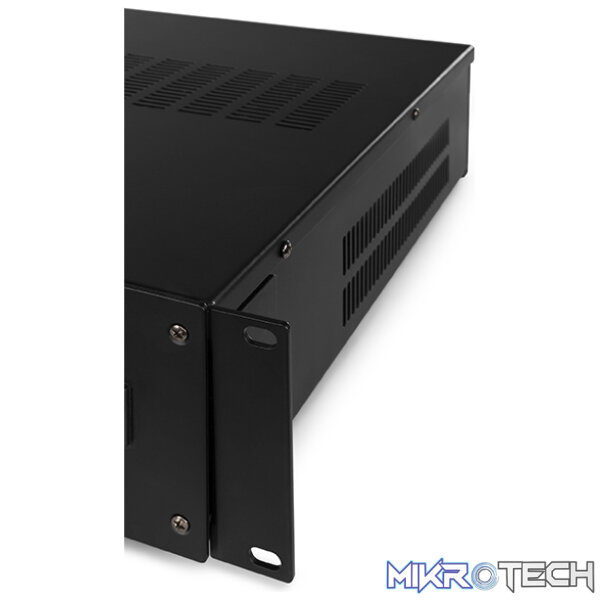

• 19″ Rack mountable (2U)

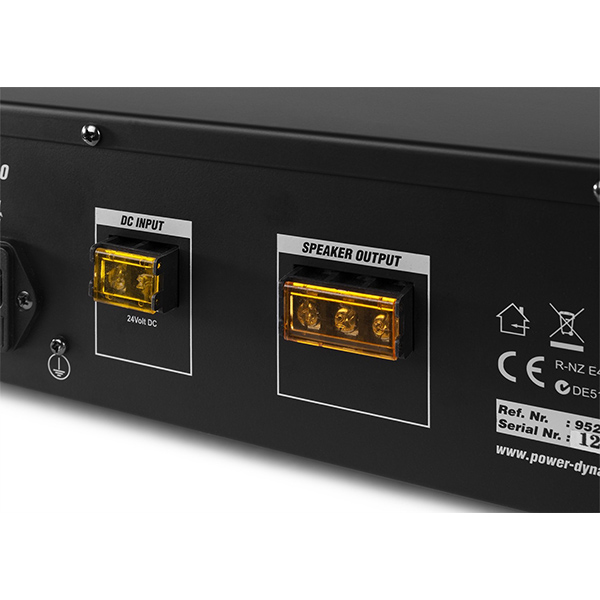

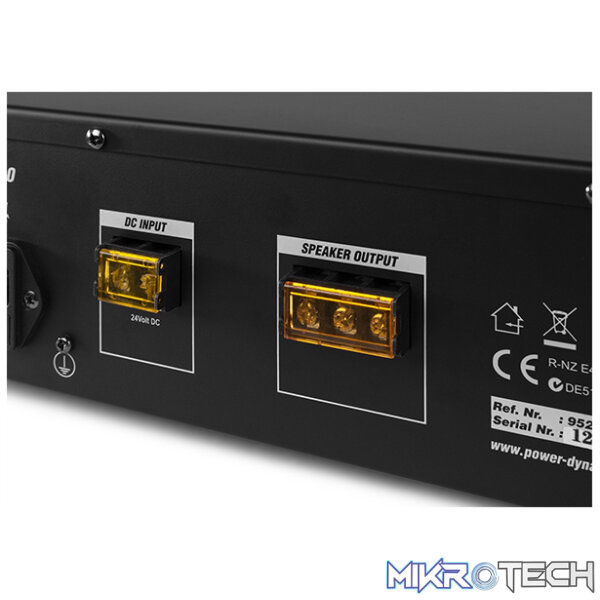

• Emergency operation by 24V battery (not supplied)
• Protections: Overheat, short circuit and power on delay
• Emergency mute input

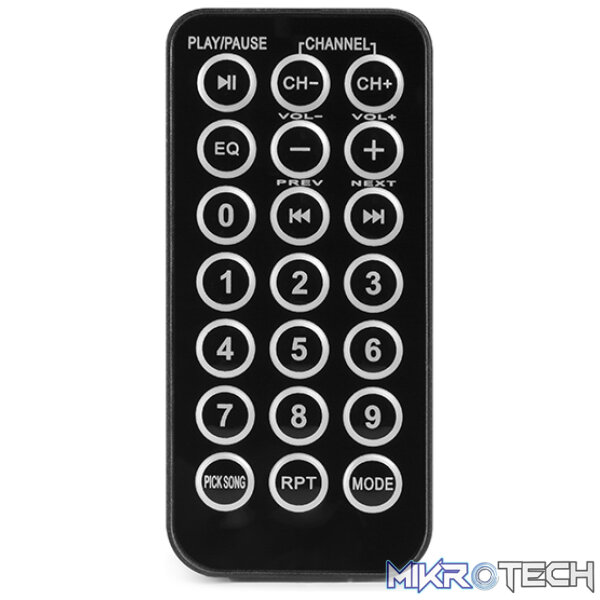

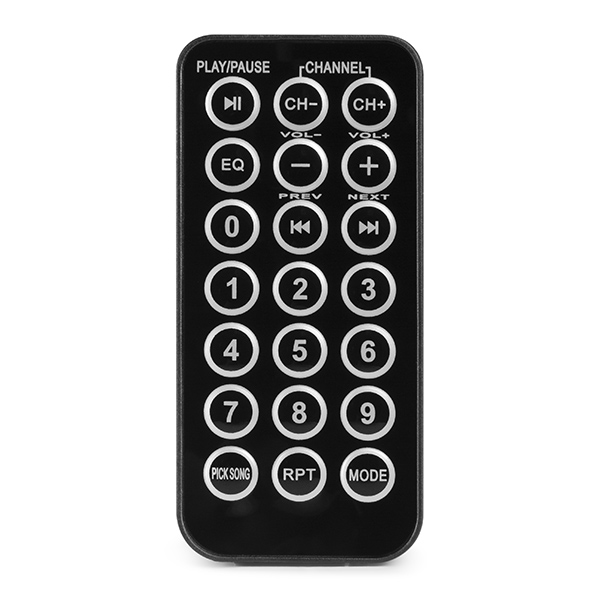

• Including remote control

SPECIFICATIONS:

• Playback options:
  BT Streaming, SD-Card, USB
•
  Output power:RMS:
  120W
•
  Impedance:
  100V, 8ohm
•
  Frequency Response:
  50Hz – 18.000Hz
•
  Signal-to-noise ratio:
  >75dB
•
  Signal-to-noise ratio:Line:
  >85dB
•
  Signal-to-noise ratio:Mic:
  >72dB
•
  Power Supply:
  100-240VAC 50/60Hz
•
  Input level:Line:
  150-470mV, 10kOhm
•
  Input level:Mic:
  5-8mV, 600Ohm
•
  THD:
  <0,5%
•
  Dimensions (L x W x H):
  432 x 88 x 345mm
•
  Weight :
  9.1kg
•
  Accessories:
  Power Cable
