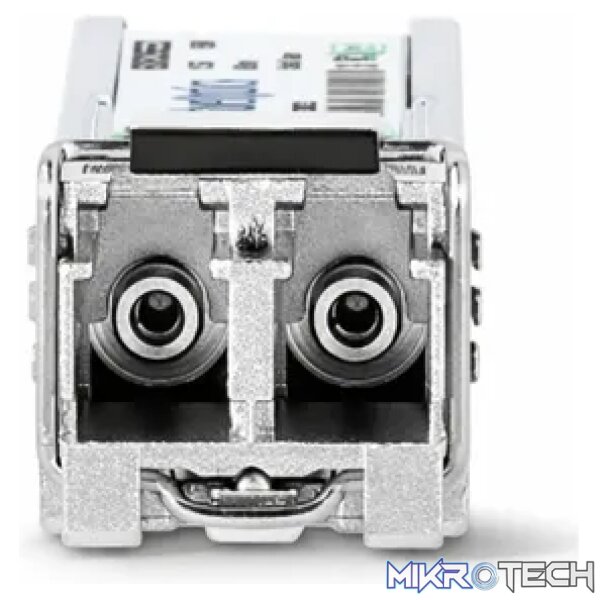

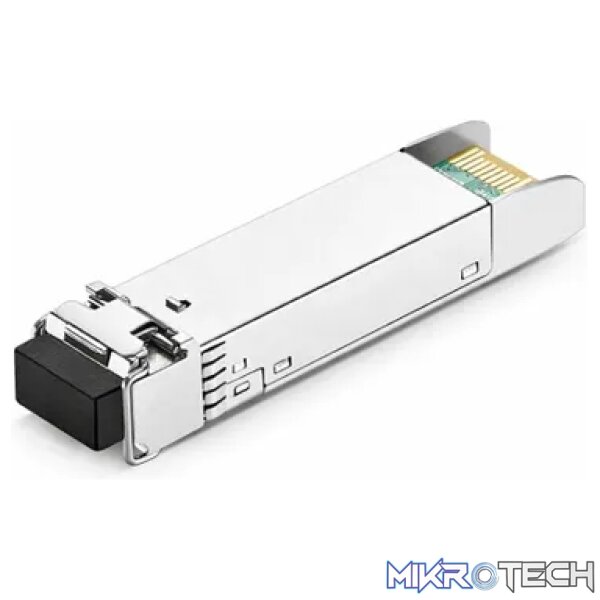

Planet SFP-Port 1000Base-SX Mini-GBIC, Module – 550m – Networking
R358.80 incl. VAT
Only 5 left in stock
Overview
The MGB family SFP Mini-GBIC Gigabit Ethernet module can install into PLANET Switch products with SFP Mini-GBIC interface. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode, LC), up to 120 kilometers (Single-mode, LC).
Application
The MGB family SFP Gigabit Ethernet module can install into PLANET Switch and Media Converter products with 1000Base-SX/LX SFP interface. The distance can be extended from 550m (MM) up to 120 kilometers (Single-mode, LC).
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver to/from any SFP port without having to power down the Switch/Media Converter.
Features
Comply with the IEEE 802.3z Gigabit Ethernet standard
1 X 1000Mbps fiber port
Industry standard small form pluggable (SFP) package
Duplex LC connector
Differential PECL inputs and outputs
Single power supply 3.3V
TTL signal detect indicator
Hot Pluggable
Class 1 laser product complies with EN 60825-1
Plug and Play Installation
Specification
PHY Type: IEEE 802.3z 1000Base-SXFiber Type: Multi-Mode
Connector: LC
Wavelength: 850nm
Maximum Distance: 220m~550m
| Weight | 5 kg |
|---|---|
| Dimensions | 10 × 15 × 10 cm |
