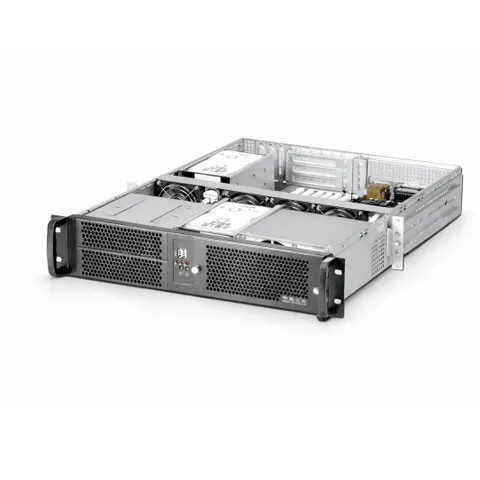

2U 550mm Deep Rackmount Chassis – Components

2U Rackmount Chassis

* Drive capacity: 2 x 5.25? DVD and 6 x 3.5? HOD bay

* Universal patented 2U riser card or low profile rear panel design (international copyright reserved)

* HDD drive bay with anti-vibration function

* Fan connector PCB in the middle fan wall that routes all fan wires into position

* Removable front air filter

* High level SGCC 1.0mm-1.2mm sheet metal

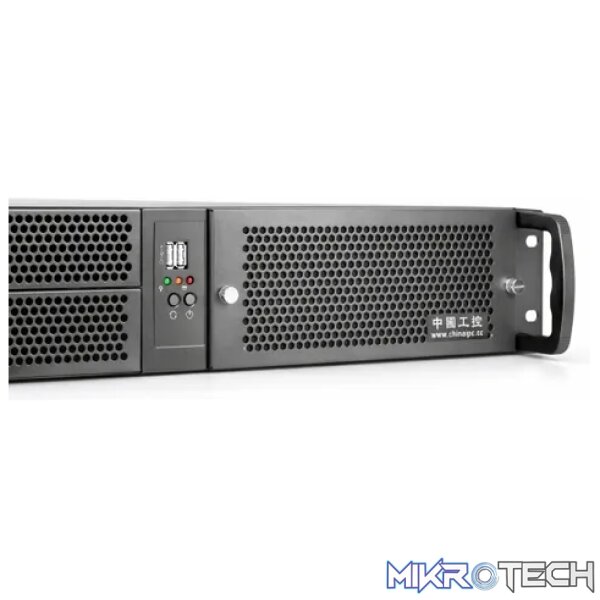

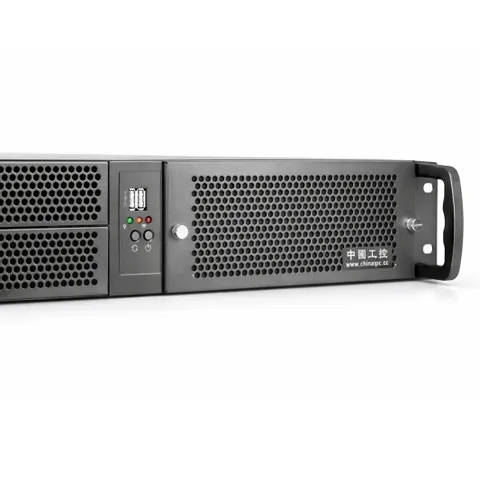

* Equipped two USB 2.0 ports

* Cooling by four brand new Su non EE80251 B 1-000C-G99 80mmx25mm 2ball bearing intake fans

* Room noise without fan activated is 47dBA, tested by 10cm distance to the running fans is 67dBA (including room noise)

* Support standard eATX(12?x10?) and ATX(12?x9.6?) and MicroATX(9.6?x9.6?) and Mini-lTX(6.7?x6.7?) MB

* Support standard PS2 power supply with 80mm fan version (maximum 160mm deep)

* Support patented 3 slot riser + 7 slot Low Profile cards (max. 250mm long)

* Standard paint: black

* Chassis dimension: 19? x 2U x 550mm (21.65? deep)

* Accessory pack: M3 truss head nickel screw x 8pcs, #6 round head nickel screw x 35pcs, #6 stacked MB stand-off x 1 Opes, LPF bracket x 6pcs, LPF cover x 1 pcs

* Package: NW 8 KGM, GW 10 KGM, 2.29 CUFT (68x56x17cm, single box packed)
