Overview:

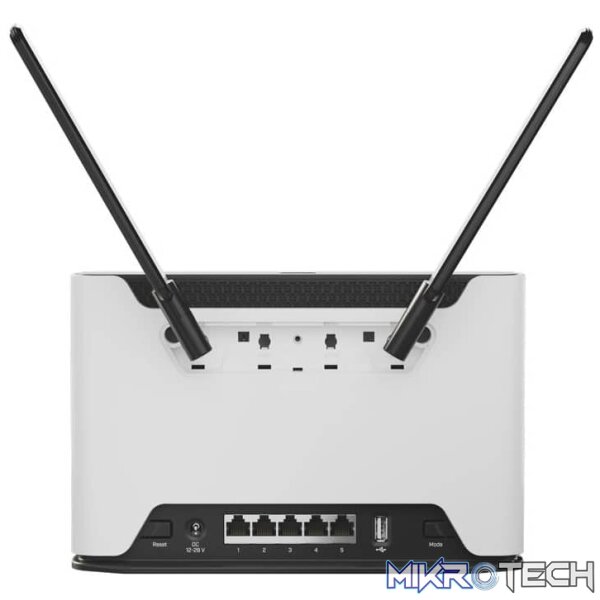

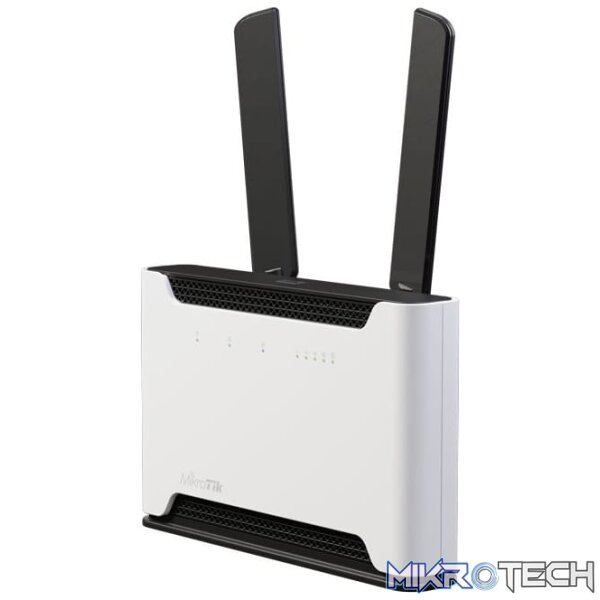

MikroTik Chateau 5G – RBD53G-5HacD2HnD-TC&RG502Q-EA
Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.
Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary. And there is another great feature – you can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run. Lets make more clients happy with MikroTik Chateau 5G!
| Weight | 0.005 kg |
|---|---|
| Dimensions | 24 × 15.6 × 4.4 cm |
| Product code | RBD53G-5HacD2HnD-TC&RG502Q-EA |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| Dimensions | 240 x 156 x 44 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| FAN count | Passive |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) |
| LTE Category | 20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 31 (450MHz) |
| LTE TDD bands | 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| 10/100/1000 Ethernet ports | 5 |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Mode button | Yes |
