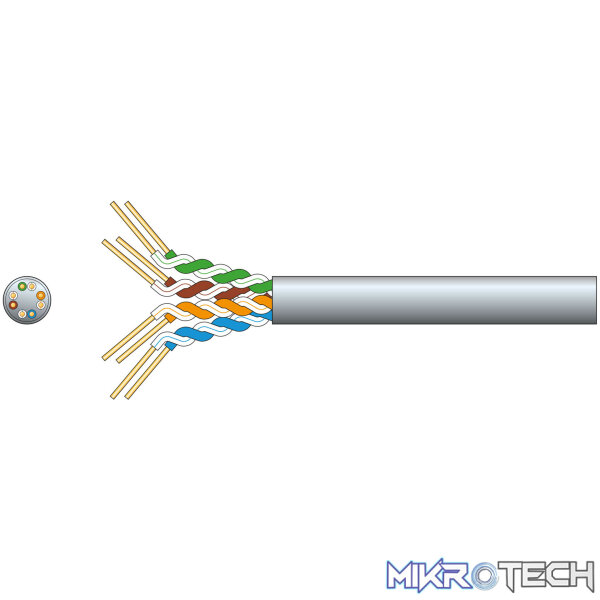

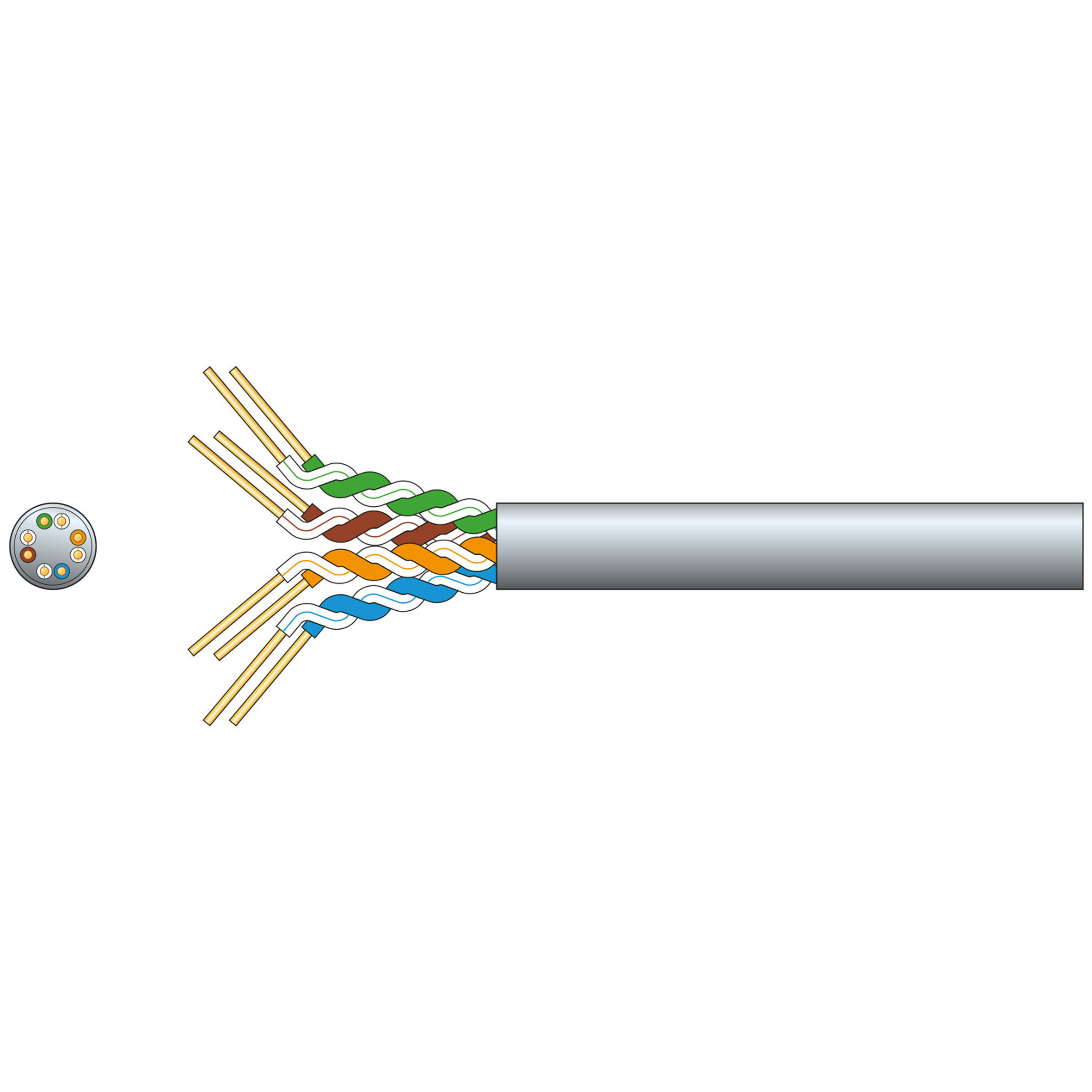

Mercury – Economy U/Utp Network Cable

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.

FEATURES:

• Passes Cat5e fluke test 100m at 100MHz
• Solid copper clad aluminium conductor
• Supplied in an easy-pull dispensing box

SPECIFICATIONS:

• Conductor:
  Solid CCA
• Strands:
  8 x 1/0.51mmØ ±2%
• CSA:
  8 x 0.204mm²
• Cable diameter:
  5mmØ
• Insulation:
  HDPE 0.19mm thickness
• Sheath:
  PVC 0.5mm thickness
• Impedance:
  100 Ohms (±15)
• DC resistance @ 20°C:
  <35 Ohms/100mt
• Return loss:
  >20dB @ 100m
• NEXT:
  >40dB @ 100m
• PSNEXT:
  >38dB @ 100m
• Cable colour:
  Grey
• Length:
  305m
• Weight:
  6kg
