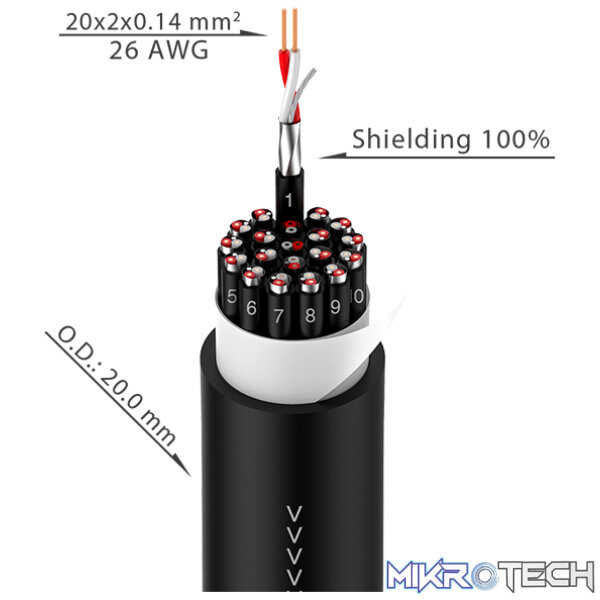

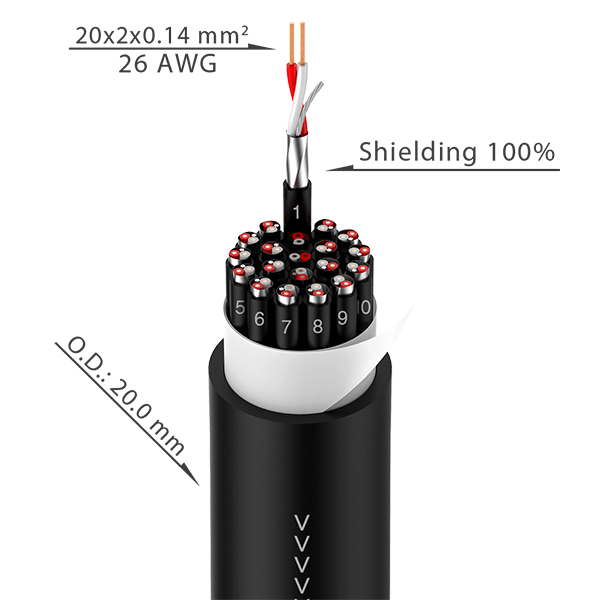

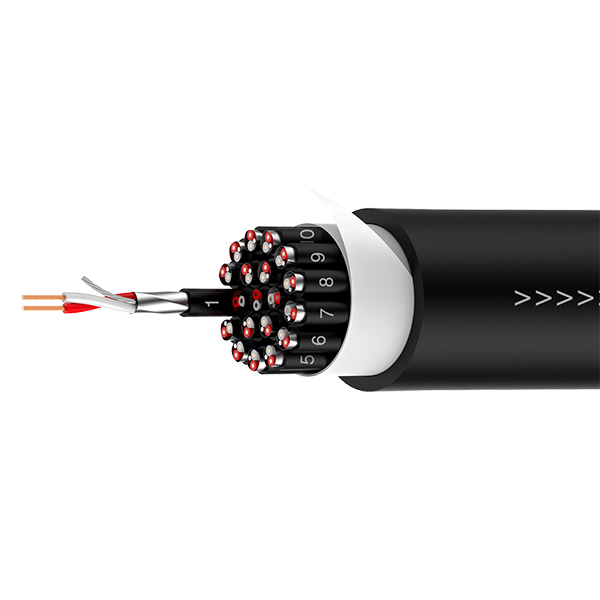

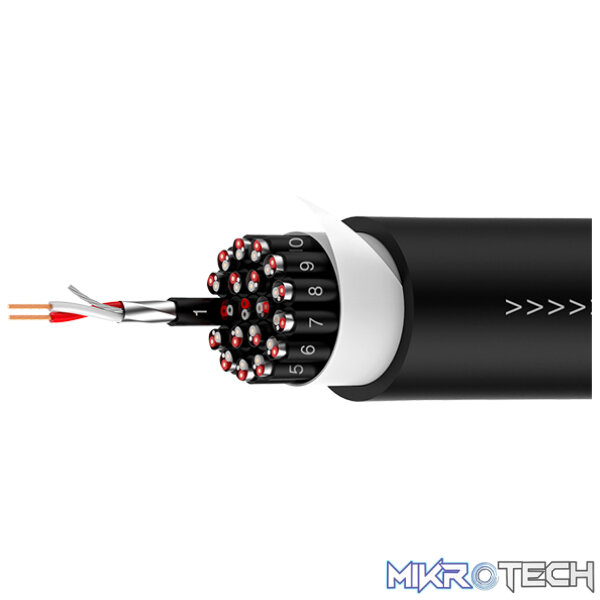

Roxtone – 20 Way Multicore Audio Cable

Multicore audio cable – 26AWG – 12 x 2 x 0,14mm²

FEATURES:

• Each pair is individually insulated with black and number-printed PVC jacket
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding

SPECIFICATIONS:

• PVC jacket, diameter:
  18 mm
•
  Cond. PVC jacket,diameter:
  3,0mm
•
  AWG:
  26
•
  No. of inner conductors:
  20 x 2 x 0.14 mm²
•
  Copper strand per conductor:
  18 x 0,10 mm
•
  Conductor insulation:
  PE 1,1 mm
•
  Shielding:
  AL/PT-foil + drain wire 7 x 0,18 mm tin plated copper
•
  Shielding factor:
  100 %
•
  Temperature range:
  min. -20 °C
•
  Temperature range :
  max. 70 °C
