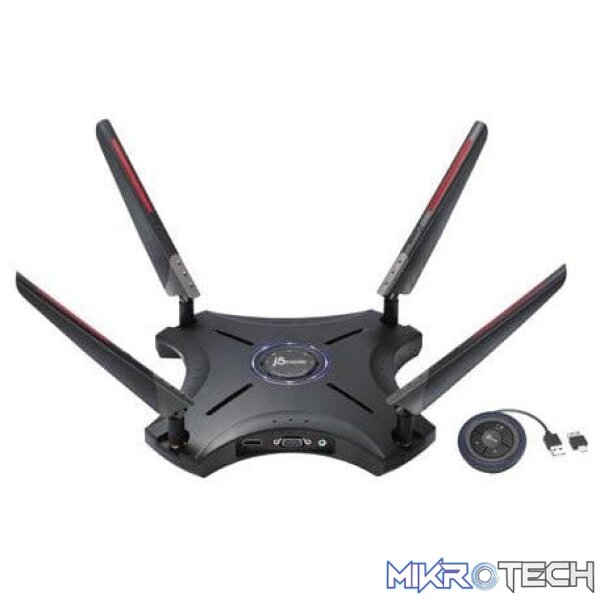

j5create JWR2100 wireless AC1750 Dual Band Gigabit Router with FHD video outputs
R6,239.99 incl. VAT
Only 5 left in stock
Product Description
Overview:
For multi-person conference applications, the Wireless ScreenWave Router supports up to 9 simultaneous displays. The 9 input sources can be connected at any time for content display. It covers the entire array of platforms, whether it is PC, Mac, iOS, or Android, all can achieve seamless access, at any time. JWR2100 is also an AC router with wireless 5G/2.4G and wired Gigabit Ethernet connections, so it allows you to access the Internet while using wireless display connections.
Features:
Wireless Display Functions
- Supports wireless display
- Split screen shares 9 connected laptop or mobile devices on one presentation screen
- HDMI/VGA interfaces
- USB connect kit for PC/Mac
- Free App for Android and iOS mobile devices
- One button to start or switch to full screen without driver installation
- Perfect for the office & classroom
AC Router Functions
- Wireless-AC dual-band technology
- Speed/PHY Rate AC2100 (AC 4 x 4 + N 2 x 2)
- MU-MIMO supports beamforming
- Detachable antenna x4 (5 dBi)
- Backward compatible with 802.11a/b/g networks
- 10/100/1000 Base-T Gigabit Ethernet port x1 and 10/100/1000 Base-T Gigabit switch ports x4
- USB 2.0 port for Samba and FTP file server and printer supported
- Guest network access
- PPTP VPN server
- QoS function
- Parental controls
- DoS protection and Firewall
- WEP,WPA2-PSK, WPA-PSK,WPA-Enterprise and WPA2-Enterprise encryption
- Smart utility allows for easy use with iPad® , tablets, smartphones, and computers
System Requirements:
- Microsoft Windows 10, 8.1, 8, 7 (32-bit or 64-bit)
- CPU: Intel Core i3 Dual Core 2.8 GHz
- RAM: 2 GB memory or higher
- Mac OS 10.6 or later
- Android 5.0 or later
- iOS X 8.0 or later
Product Specifications
| I/O Ports | HDMI VGA 3.5 mm Audio Jack WAN x 1 (RJ-45) LAN x 4 (RJ-45) DC 12V in USB 2.0 |
|---|---|
| MIMO | IEEE 802.11ac 4×4 IEEE 802.11n 2×2 |
| Mu-MIMO | Yes |
| Encryption | WEP WPA2-PSK WPA-PSK WPA-Enterprise WPA2-Enterprise WPS |
| Data Rate | 802.11a: 54 Mbps 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 1732 Mbps |
| Antenna | External antenna x 4 (5 dbi) |
| Frequency | 2.4 GHz/5 GHz |
| Distance of connection | 30m (100 ft) Maximum |
| Network Standard | IEEE 802.3/3u/3 ab |
| Ports | WAN x 1(AUTO-MDIX) LAN x 4 |
| Type | Type-A |
| Port | USB 2.0 x 1 |
| Output Resolution | HDMI 1920 x 1080 VGA 1920 x 1080 |
| Input Resolution | 1920 x 1200 |
| Numbers of Input source | 9 |
| Numbers of screen display | 9 |
| Noise level | 28 dB |
| Audio | Speaker supported (Windows, Android) |
| Frame rate | Android: 20 – 30 FPS Windows: 30 – 35 FPS Mac: Will differ based on CPU/GPU performance |
| Throughput | Wireless 5G: 304 Mbps (1 x 1) Wireless 2.4G: 130 Mbps (1 x 1) Wired: 730 |
| Power Consumption | Shutdown: 5W Operation (typical): 15W Maximum: 24W |
| AC Input | 110V – 240V (50 – 60 Hz) |
| DC Output | 12V / 2A |
| LED Indicator | Wi-Fi x 2 (2.4G/5G) WAN x 1 LAN x 1 WPS x 1 USB 2.0 x 1 VIDEO x 1 POWER On: Blue Flash: Error |
| Management | Authority Management Internal Management Remote Management |
| QoS | WMM (Wi-Fi Multimedia (WMM), is a Wi-Fi Alliance interoperability certification) User can define IP / MAC / connected port rule Upload and download bandwidth management, ACK/SYN/FIN/RST/ICMP is Highest priority. |
| Wireless Network Specs | Wireless On/Off, MU-MIMO |
| Guest Network | 2.4 GHz Guest Network x 1 5 GHz Guest Network x 1 |
| Intelligent Antenna | Beamforming |
| VPN | PPTP server PPTP client L2TP client |
| Firewall | Firewall SPI intrusion detection DoS protection Access Control Parental control Network service filter URL filter Port filter |
| Operation | +0°C to +40°C (+32°F to +104°F) 0 to 90% relative humidity non-condensing |
| Storage | -20°C to +60°C (-4°F to +140°F) 0 to 90% relative humidity non-condensing |
| Multi-media Server | Image: JPEG Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov |
| Printer Server | Multifunctional printer support (Windows only) LPR protocol support |
| File Server | Samba and FTP server |
