Overview:

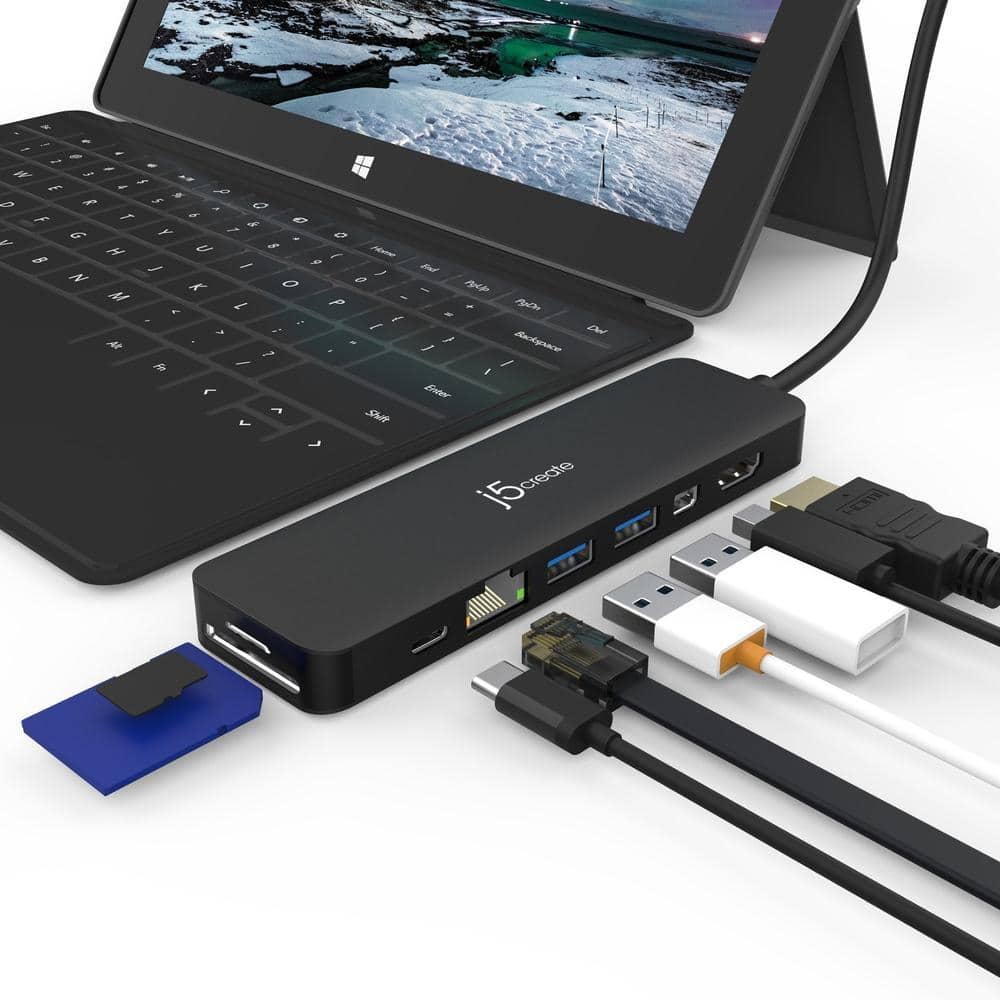

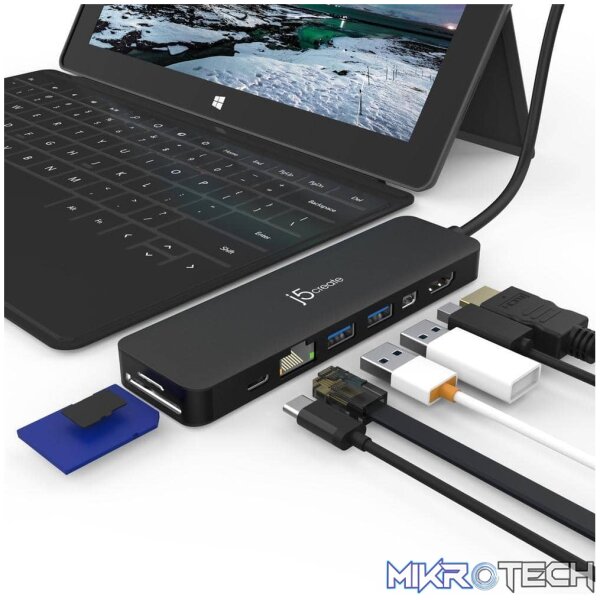

This 8-in-1 ULTRADRIVEMINIDOCK for Surface Pro 4, 5, 6 expands your connectivity options to 4K mini DisplayPort, 4K HDMI, USB Type-A 3.0 x2, USB-C, RJ45 Gigabit Ethernet, and memory card reader/writer. The adapter features high quality HDMI that supports resolutions up to 4K @ 30 Hz and its mini DisplayPort supports resolutions up to 4K @ 60 Hz, with both serving as the output for an additional external display (only one output supported at a time). Along with its USB-C port that supports Gen1 5G data transfer, the two USB Type-A 3.0 ports can connect USB devices such as keyboards, mice, etc. as well as a memory card reader/writer for quick transfer of your files and photos. It also gives you the ability to add a Gigabit Ethernet connection to your computer for increased internet speeds and stability.
The 8-in-1 ULTRADRIVEMINIDOCK is easy-to-operate with a plug-and-play design; there is no driver or external power required. Just hook it up and enjoy your large display.
Features:
- Compatible with Surface Pro 4, 5, 6

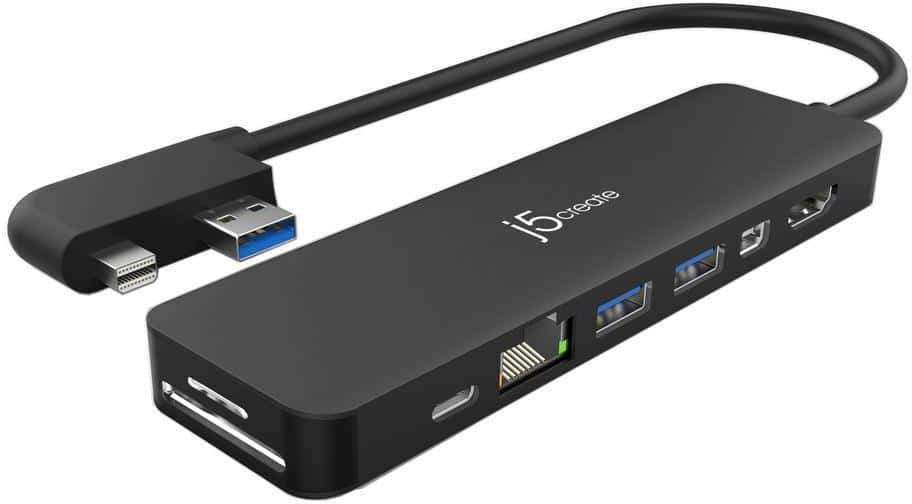

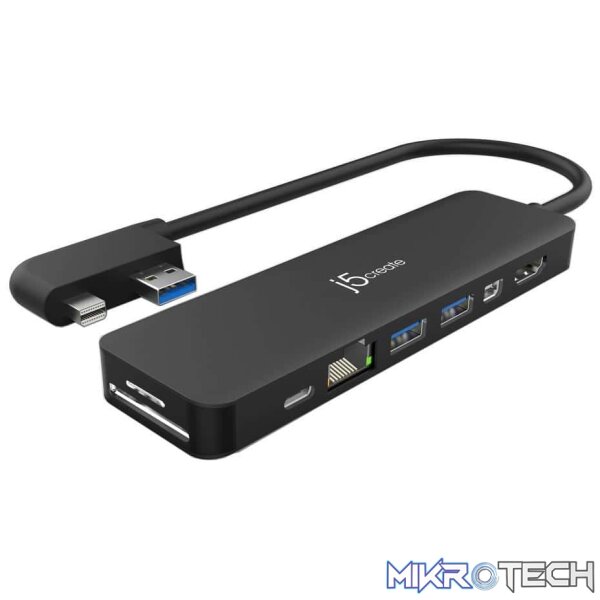

- Dedicated built-in cable with right-angle mini DisplayPort and USB Type-A 3.0 port base. With this innovative 90-degree L-shaped design, its more comfortable, sturdier, and less hassle to connect on the side of your Surface Pro.

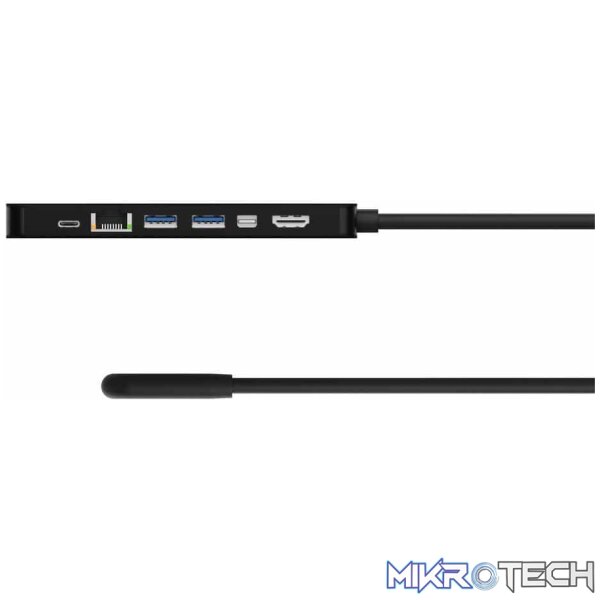

- Output via USB-C x1, USB Type-A 3.0 x2, HDMI, mini DisplayPort, RJ45 Gigabit Ethernet, and memory card reader/writer.
- Supports HDMI with a resolution up to 4K at 3840 x 2160 @ 30 Hz and mini DisplayPort with a resolution up to 3840 x 2160 @ 60 Hz. The HDMI and mini DisplayPort ports cannot be used simultaneously.
- Gigabit Ethernet port with a speed of 1000 Mbps
- USB-C and USB Type-A 3.0 ports x2 with a data transfer speed up to 5 Gbps
- Plug-and-play with no software needed
| Input | USB Type-A 3.0 and mini DisplayPort male connector |
|---|---|
| Output | HDMI female connector x 1 mini DisplayPort female connector x 1 Gigabit Ethernet RJ-45 female connector USB-C 3.1 Gen1 port female connector x 1 USB Type-A 3.0 port female connector x 2 Memory card reader/writer female |
| Display | HDMI display resolution: 3840 x 2160 @ 30 Hz mini DisplayPort resolution: 3840 x 2160 @ 60 Hz (only one output is supported at once) |
| USB | USB-C Type-A 3.1 port x 1 (USB 3.1 Gen 1/5 Gbps) USB Type-A 3.0 port x2 (USB 3.0, 5 Gbps) |
| Ethernet | Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x |
| Memory | SD/microSD 3.0 memory card reader/writer |
| Power Mode | BUS-Powered |
| Housing Material | Aluminum |
| Dimensions | Main body: 13.2 (W) x 1.8 (H) x 3.8 (D) cm Cable length: 250 mm |
| Color | Black: JDD321B Silver: JDD321S |
| Weight | Approximately: 76g |
