Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE
J5 Create JCSD337 USB-C Dual 4K Speakerphone Dock Pro
R3,379.99 incl. VAT
Only 7 left in stock

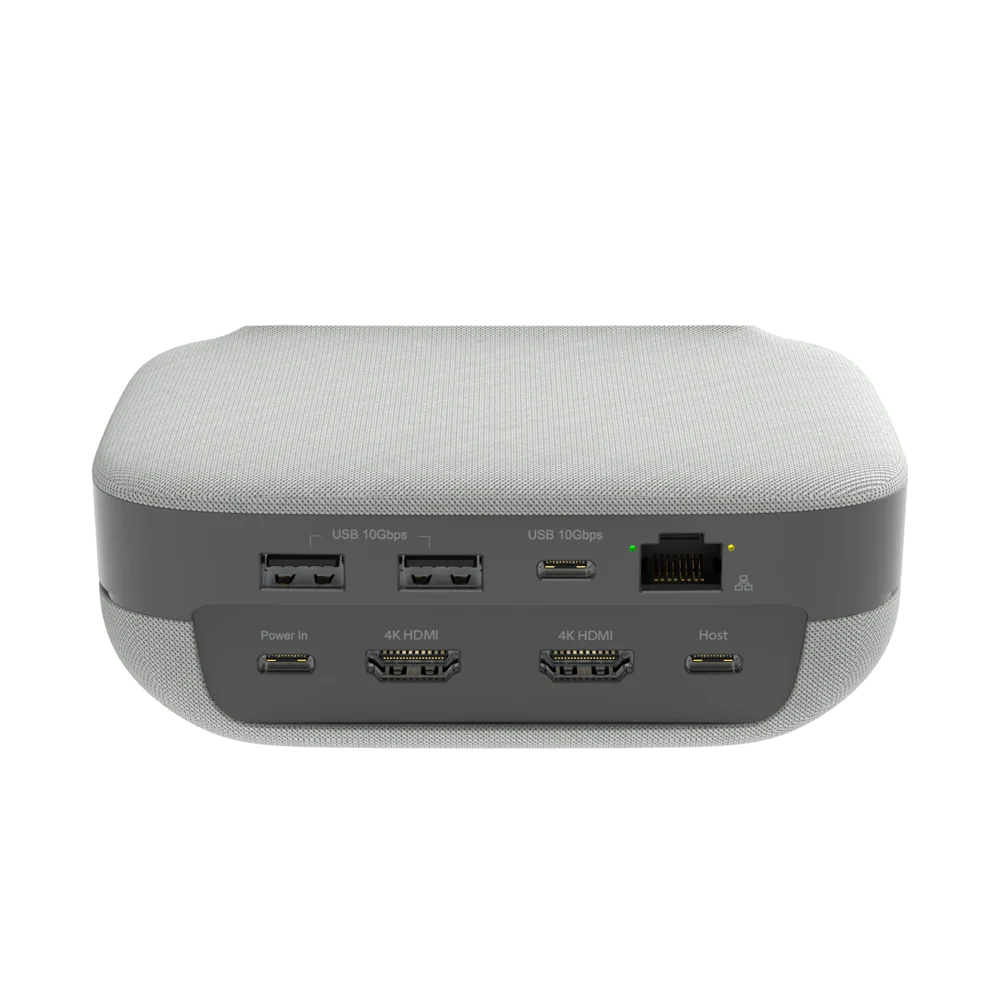

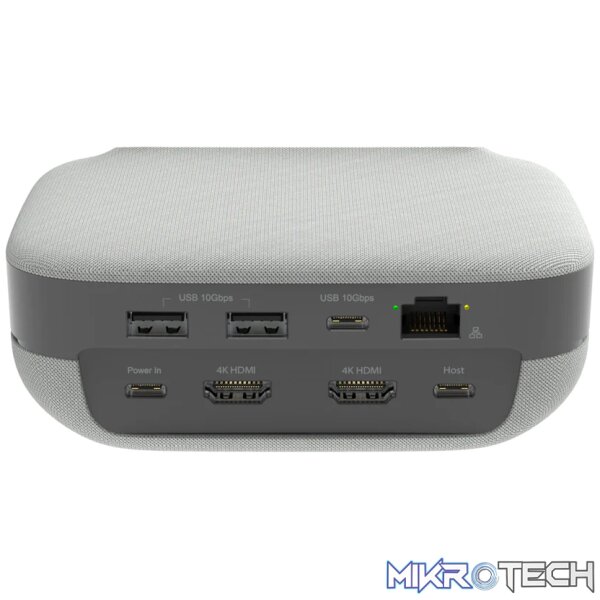

The USB-C® Dual 4K Speakerphone Dock Pro that turns your laptop into a full workstation and conferencing device. Includes two 4K HDMI outputs and one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB Type-A 10Gbps ports, and one USB-C® 10Gbps port for connecting a variety of USB devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity.

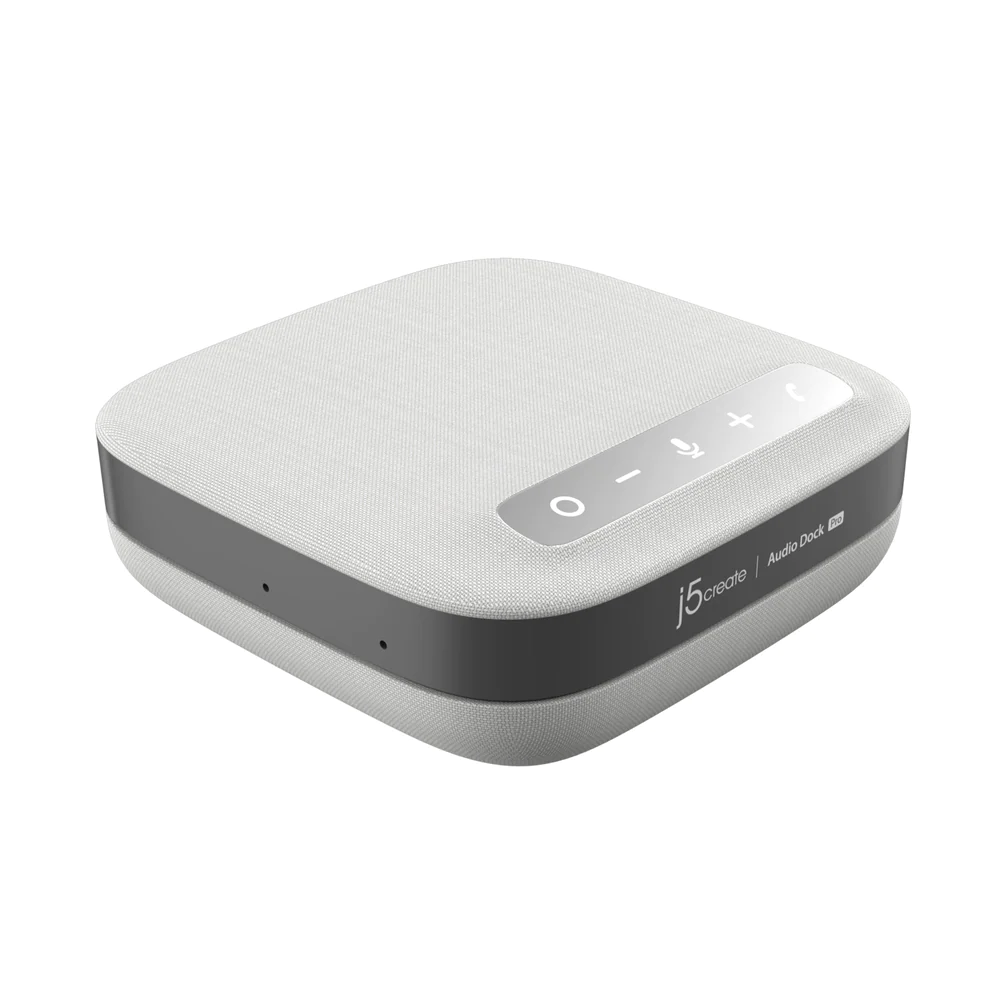

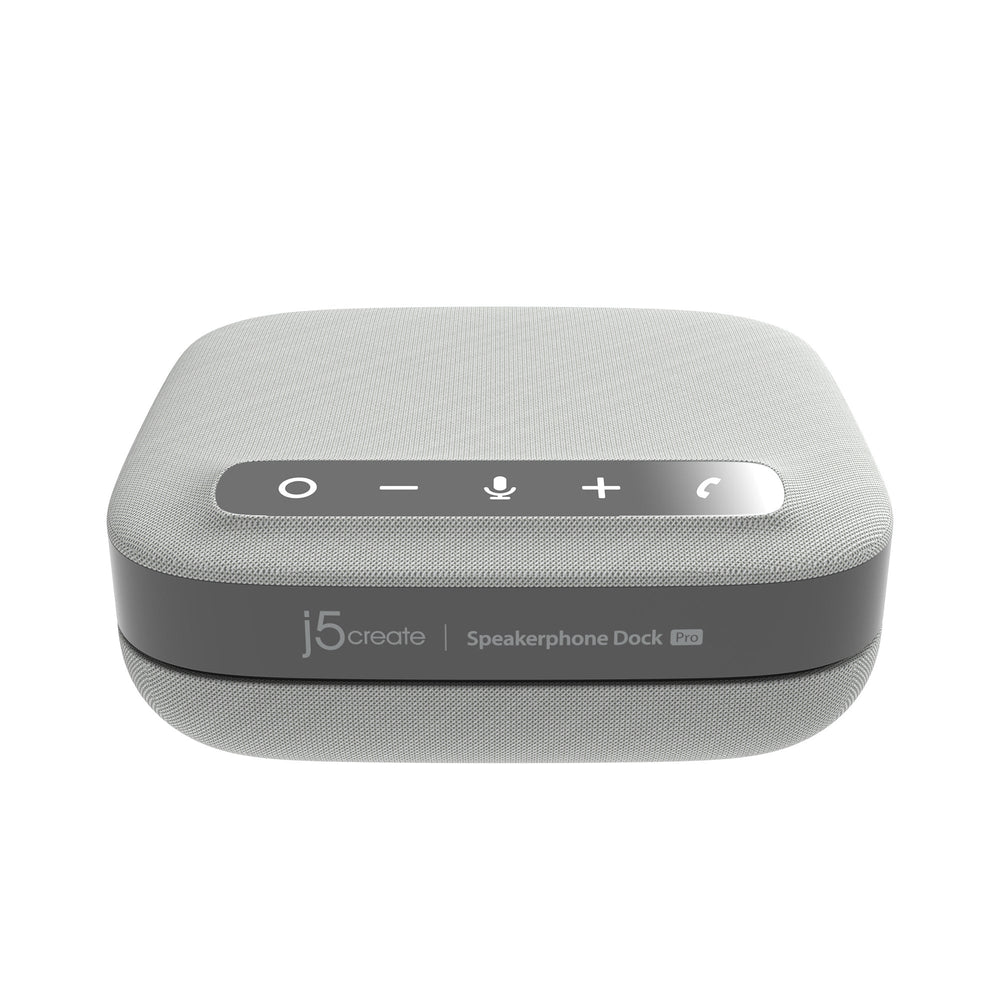

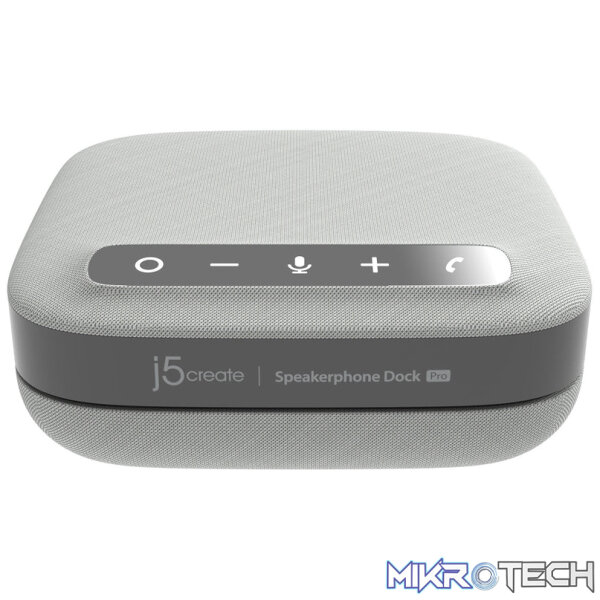

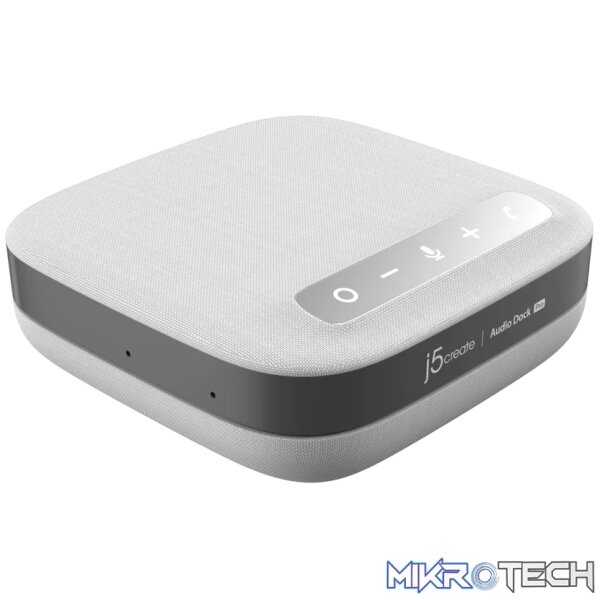

The speaker & microphone function provides crystal-clear audio for conference calls. Four omnidirectional microphones are included to pick up voices from around the conference table and uses Acoustic Echo Cancellation to eliminate echo and unwanted background noise. The built-in buttons make it simple to initiate calls, hang up and mute/unmute and adjust the volume. The speakerphone dock is small and lightweight for easy placement and transportation. Its plug-and-play and ready to use with your favorite video conferencing apps. All docking and speakerphone functions are combined into one compact docking station, so you will have all the connections you need to stay productive!
Features
- Docking station with meeting controls and speakerphone
- Built-in 4 microphones array which deliver natural vocal sound with reduced background noise
- Support MST dual 4K display
* macOS® doesnt support MST, will only support mirroring two monitors on Mac® devices - Bluetooth® 5.2 or USB plug-and-play connection
- High-quality, crystal-clear audio
- Digital signal processing technologies:
- Acoustic Echo Cancellation (AEC) reduces background noise and blocks the microphone from receiving sound from your own speakers
- Automatic Noise Reduction (ANR) reduces background noise
- Automatic Gain Control (AGC) built into the microphone to ensure conference audio quality
- Compatible with video conferencing apps: Amazon Chime, BlueJeans, Cisco®, Facebook, Messenger, Google Meet, GoToMeeting®, Microsoft Teams, Skype, Skype for business, Slack, Zoom, etc.
Specifications
Hardware | |
Host Connector | USB-C® Female |
Video Output | 2 – 4K HDMI Female |
Audio Supported | Yes |
Power Source | Bus-powered, Self-powered |
Network Interface | RJ45 (Gigabit Ethernet) |
Speaker – Mic | 4 x mic array |
Controls | Touch Key |
| Ports | 2 x HDMI 4K@60Hz HDR |
Performance | |
Maximum Display Resolution | Single Display: |
Maximum Data Transfer Rate | 10Gbps |
Compatible Networks | 10/100/1000 Base-T, auto-negotiating |
Displays Supported | 2 (4K HDMI) – Windows® (MST) |
Audio Channel | 2.0 via HDMI |
Audio Microphone | – Frequency: 100 Hz – 8 kHz |
Audio Speaker | – Frequency: 150 Hz – 20 kHz |
Microphone | Built-in 4 microphones array |
Speakerphone | Built-in 5W speaker with bass diaphragm |
Voice Processing | – Acoustic Echo Cancellation (AEC) |
Power | |
Power Delivery | 100W |
Power Consumption | ? 300 mA |
Input Current | 5A |
Input Voltage | 20V |
Output Current | 4.25A |
Output Voltage | 20V |
Physical Specifications | |
Color | Grey & White |
Enclosure Type | PC+ABS |
Cable Length | 39.37 in. (100 cm) |
Product Height | 1.88 in. (47.8 mm) |
| Product Width | 5.11 in. (130 mm) |
| Product Depth | 5.11 in. (130 mm) |
| Product Weight | 0.83 lbs. (377 g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
Storage Humidity | < 85% non-condensing |
Operating Temperature | 32 to 118°F (0 to 48°C) |
Operating Humidity | < 85% non-condensing |
Warranty | 24 months |
System Requirements
- Connection: Bluetooth® 5.2 & USB, compliant with UAC1.0
- Windows® 11/ 10, macOS®, iOS®, Android, or other operating systems with standard UAC drivers
- *iOS® – iPhone® can only connect by Bluetooth®, iPad® can connect by Bluetooth® and USB-C® *Android can connect by Bluetooth® or USB-C®
Package Contents
- JCDS337 USB-C® Dual 4K Speakerphone Dock Pro
- USB-C® cable (Length: 100 cm)
- Quick Installation Guide (QIG)
Notes
- Due to a macOS® limitation, the JCDS337 only supports mirrored dual screens with Mac® devices.
