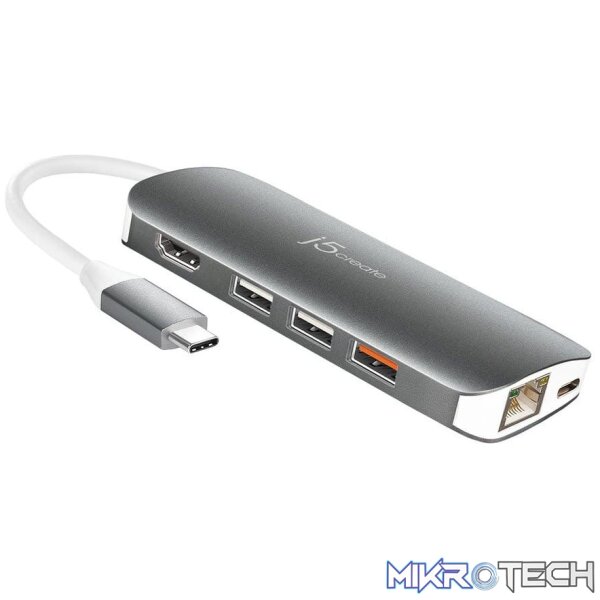

j5create JCD384 USB Type-C Multi Adapter
R1,429.99 incl. VAT
In stock
Overview:
The j5create USB Type-C Multi Adapter provides extra connectivity from your computer. These pocket-sized multi-adapters allow you to add an additional USB 3.1/SD/MicroSD computer peripheral, HDMI/VGA monitor or Gigabit Ethernet through your USB ports. One of the USB 3.0 SuperSpeed ports supports fast charging BC 1.2 for a smartphone, tablet or iPad®. USB Type-C port supports charging, power delivery 3.0 and data transfer. When connected with a power source, the USB Type-C input charging port allows you to keep charging your notebook or smartphone. USB Type-C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB Type-C has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C offers greater power delivery and faster data transfer rates of up to 10 Gbps.
Features:
- Quickly add an HDMI or VGA and Gigabit Ethernet port
- Supports HDMI resolution up to 4K @ 30 Hz
- Supports VGA resolution up to 1920 x 1200 @ 60 Hz
- USB 3.0 Type-A port x 3; BC 1.2 port x 1
- Supports USB Type-C upstream & downstream: charging, power delivery 3.0 and data transfer
- SD/MicroSD card slots allow for external memory access
Power Delivery 3.0
Power Delivery 3.0 provides you with more stability and better compatibility. Only have PD 2.0? Don’t worry, PD 3.0 devices work with PD 2.0.
BC 1.2 Fast Charging
Provides up to 2.5x faster charging than standard chargers. Up to 2.4A, USB 3.0 SuperSpeed port supports fast charging BC 1.2 for a smartphone, tablet, iPad® or similar device.
System Requirements:
- Available DisplayPort™ Alt Mode over USB Type-C port
- USB PD 3.0/2.0 compatible for upstream charging
| Host Interface | USB Type-C Male connector |
|---|---|
| Video Interface | HDMI Female connector x 1 VGA Female connector x 1 |
| Type-C Port | USB Type-C Female connector x 1 |
| Ethernet Port | RJ-45 Female connector (Gigabit Ethernet) x 1 |
| USB Port | USB 3.0 Type-A Female connector |
| Card slots | USB 3.0 SD x 1 Slot USB 3.0 MicroSD x 1 Slot |
| Power Mode | Bus-powered or self-powered |
| HDMI | Display resolution: 4K @ 30 Hz |
| VGA | Display resolution: 1920 x 1200 @ 60 Hz |
| Type-C | Upstream & downstream: charging, power delivery 3.0 and data transfer |
| USB | USB 3.0 Type-A port x 3 (USB 3.1 Gen1/ 5 Gbps) BC 1.2 port x 1 (CDP 1.5A/DCP 2.4A) |
| Ethernet | Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes: Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet, or Microsoft wakeup frame Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering Supports Jumbo Frame Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload |
| Dimensions | Main body: 0.16 (W) x 0.39 (H) x 0.05 (D) in. 50 (W) x 120 (H) x 16.5 (D) mm Cable length: 0.45 in./137 mm |
| Weight | Approximately: 0.18 lbs/ 88g (including cable) |
| Storage Temperature | -10-65°C |
| Storage Humidity | 85% non-condensing |
| Operation Temperature | 0-40°C |
| Operation Humidity | 85% non-condensing |
