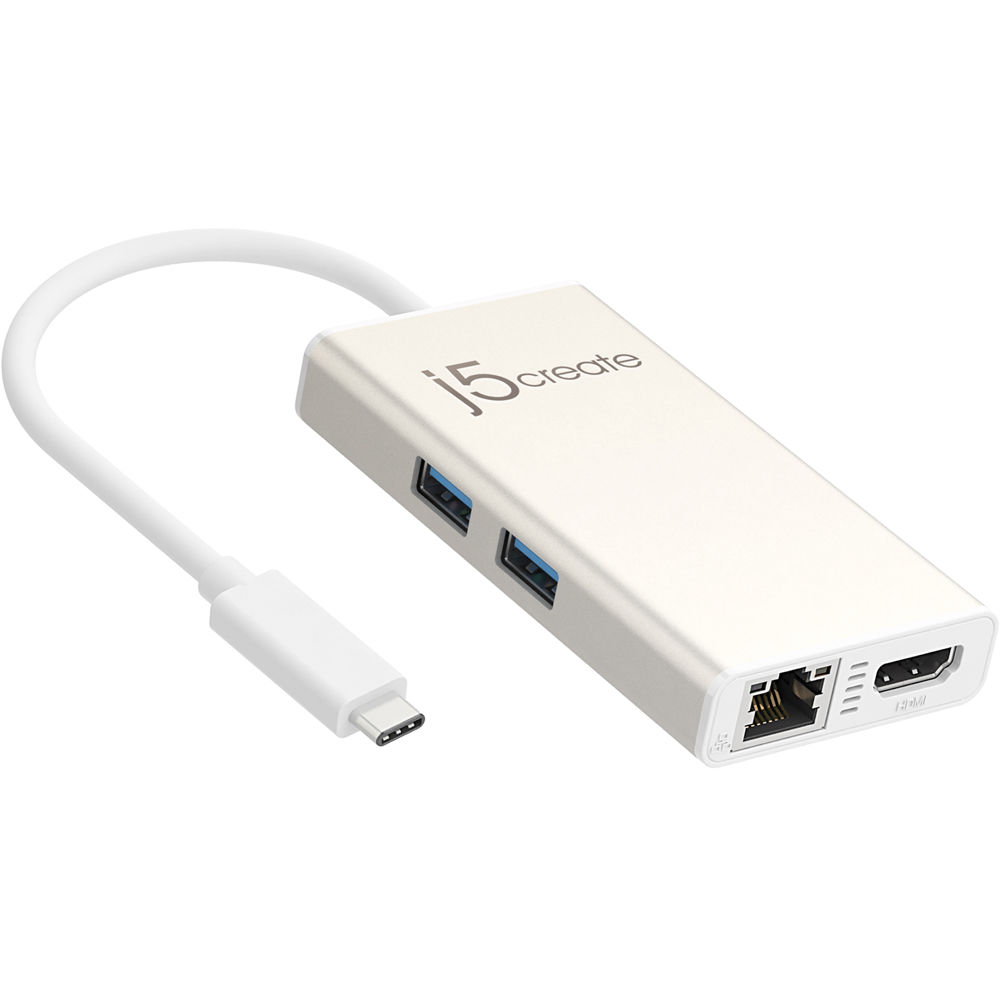

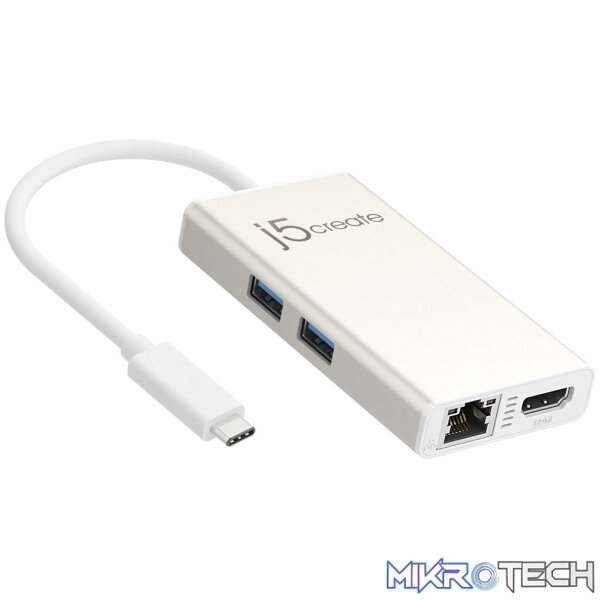

j5create JCA374 Minidocking USB 3.0 Type-C Universal Docking Station
R999.99 incl. VAT
Only 8 left in stock
Overview:
The j5create USB Type-C Multi-Adapter jca374 provides extra connectivity from your computer with 5Gb/s faster transfer speed. These pocket-sized Multi- adapters allow you to add an additional USB computer peripheral, HDMI Monitor or Gigabit LAN through you USB port. USB Type-?C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors. This new USB standard can be found on laptops, phones, tablets, etc. The USB Type-?C has a slim and reversible design, so there is no wrong way to plug it in. USB Type-?C offers greater power delivery and faster data transfer rates of up to 10Gbps.
Features:
USB 3.0 SuperSpeed
- USB 3.0 SuperSpeed ports
- Transfer rates of up to 5Gb/s, enable bulky file backup
- Backwards compatible with USB 2.0 and USB 1.1 device
- Hot-swapping connect / disconnect without powering down
Display Alt Mode for HDMI
- Supports display max resolution: 4K@30Hz / 1080P@60Hz
- Supports 1080P Video Playback
- Supports Display Modes: Primary, Extended, Mirror
- Display Rotation: 0°, 90°, 180°, 270°
USB 3.0 Gigabit Ethernet
- Quickly add an HDMI and Gigabit Ethernet port
- Supports up to 4K including 1080P
- USB 3.0 Type-A port x 2
- Supports upstream charging & power delivery 2.0 via USB Type-C Charging Port
Required Environments:
- Available USB Type-C port (USB 3.0 is recommended)
- Available DisplayPort Alternate Mode over USB Type-C connector. DisplayPort v1.2 required on raphics card or video source to support 4K@30Hz resolution.
- Available USB power delivery over USB Type-C to support upstream charging
- Perfect for Macbook and Chromebook.
| Host Interface | USB Type-C Male Type-C connector |
|---|---|
| Video Interface | HDMI-DB 15 pin Female connector |
| Ethernet Port | RJ-45 Female connector (Gigabit Ethernet) |
| USB Port | USB 3.0 Female connector x 2 |
| Power Mode | Bus-powered or self-powered |
| Display | Display resolution: 4K@30Hz |
| Ethernet | Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes: – Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame – Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering – Supports Jumbo Frame – Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload |
| Dimensions | Main body:50.5(W)x 15(H)x 96.5(D) mm Cable length: 25cm |
| Weight | Approximately 69 g (including cable) |
