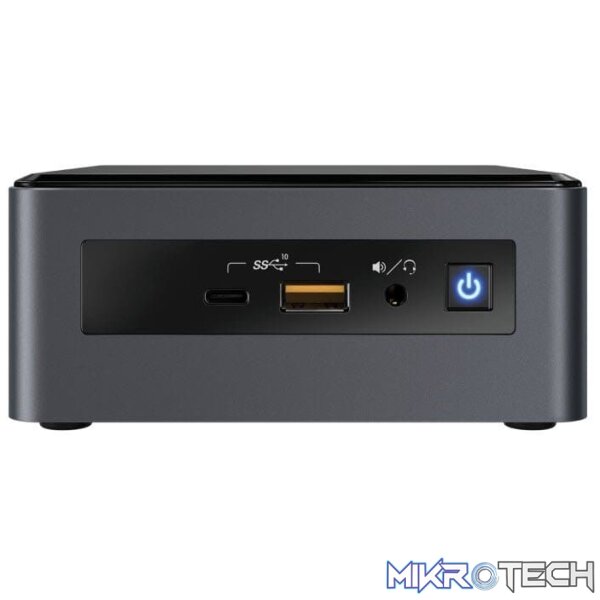

Intel NUC8i7iNHx NUC whiskeylake Core i7-8565U Quad core 1.8Ghz Radeon 540X 2Gb 64bit DDR5 Miniature PC
R17,549.99 incl. VAT
Only 1 left in stock
Product Specifications
| Board Form Factor | UCFF (4″ x 4″) |
|---|---|
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| # of Internal Drives Supported | 2 |
| Lithography | 14 nm |
| TDP | 15 W |
| DC Input Voltage Supported | 19 VDC |
| Pre-Installed Operating System | Windows 10, 64-bit |
| Embedded Options Available | No |
| Description | Other features: 16GB Intel Optane Memory M.2 module + 1TB 2.5″ HDD, or 128GB SSD + 1TB 2.5″ HDD, or 256GB M.2 SSD, and Windows 10, 64-bit Home pre-installed, includes SDXC card slot |
| Included Storage | 1TB HDD, or 256GB M.2 SSD, or 1TB HDD + 128GB M.2 SSD |
| Included Memory | 8GB LPDDR3 or 8GB LPDDR3 + 16GB Intel Optane |
| Max Memory Size (dependent on memory type) | 8 GB |
| Memory Types | LPDDR3-1866/2133 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 34 GB/s |
| ECC Memory Supported | No |
| Integrated Graphics | Yes |
| Graphics Output | HDMI 2.0b, Mini-DP 1.2 |
| # of Displays Supported | 3 |
| Discrete Graphics | Radeon 540X, 2GB GDDR5 |
| PCI Express Revision | Gen3 |
| PCI Express Configurations | M.2 slot with PCIe X4 lanes |
| Removable Memory Card Slot | SDXC with UHS-I support |
| M.2 Card Slot (storage) | 22×80 |
| # of USB Ports | 6 |
| USB Configuration | 2x front and 2x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers |
| USB Revision | 2.0, 3.1 Gen2 |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| RAID Configuration | 2.5″ HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
| Audio (back channel + front channel) | 7.1 digital (HDMI); L+R+mic (F) |
| Integrated LAN | Intel Ethernet Connection I219-V |
| Integrated Wireless | Intel Wireless-AC 9560 + Bluetooth 5.0 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, 2x USB2.0 |
| Intel Optane Memory Supported | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel vPro Platform Eligibility | No |
| TPM | No |
| Intel HD Audio Technology | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Intel AES New Instructions | Yes |
