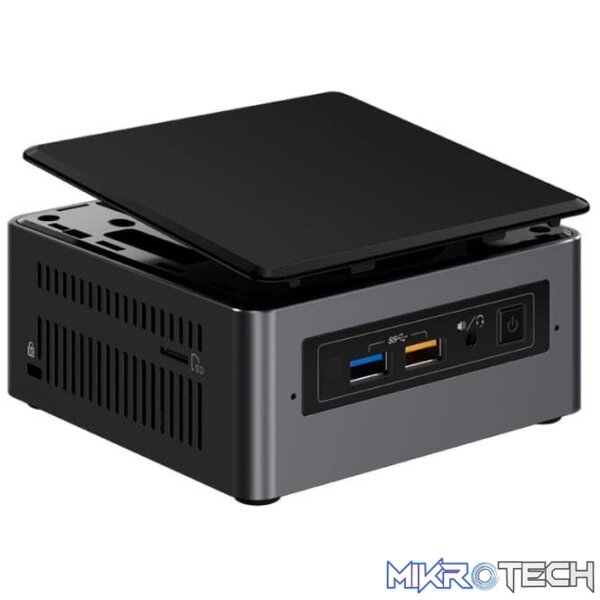

Intel NUC7-i5BNHXF NUC Kabylake Core i5-7260U Dual core+ hyper-threading 2.2/3.4Ghz 16Gb Optane SSD + 1Tb 2.5″ Miniature PC with Windows 10 pre-installed
R12,809.99 incl. VAT
Only 1 left in stock
Product Specifications
| Product Collection | Intel NUC Kits |
|---|---|
| Board Form Factor | UCFF (4″ x 4″) |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| # of Internal Drives Supported | 2 |
| Lithography | 14 nm |
| TDP | 15 W |
| DC Input Voltage Supported | 12-19 VDC |
| Pre-Installed Operating System | Windows 10, 64-bit |
| Processor Included | Intel Core i5-7260U Processor (4M Cache, up to 3.40 GHz) |
| Embedded Options Available | No |
| Description | Other features: 16GB Intel Optane Memory M.2 module pre-installed, 1TB HDD, Windows 10 x64 Home, includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones |
| Pre-Installed Memory | 1x 4GB DDR4-2400 |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR4-2133 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 34.1 GB/s |
| Max # of DIMMs | 2 |
| ECC Memory Supported | No |
| Integrated Graphics | Yes |
| Graphics Output | HDMI 2.0a; USB-C (DP1.2) |
| # of Displays Supported | 3 |
| PCI Express Revision | Gen3 |
| PCI Express Configurations | M.2 slot with PCIe x4 lanes |
| Removable Memory Card Slot | SDXC with UHS-I support |
| M.2 Card Slot (storage) | 22×42/80 |
| USB Configuration | 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers |
| USB Revision | 2.0, 3.0 |
| # of USB Ports | 6 |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R+mic (F) |
| Integrated LAN | 10/100/1000 |
| Integrated Wifi | Intel Wireless-AC 8265 + BT 4.2 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, 2x USB2.0, FRONT_PANEL |
| # of Thunderbolt 3 Ports | 1 |
| Intel Optane Memory Supported | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel vPro Technology | No |
| TPM | No |
| Intel HD Audio Technology | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Intel AES New Instructions | Yes |
