KEY FEATURES:

– ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
– Supports Up to DDR5-9066 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 4x PCIe 4.0 x1 Slots (x16 Physical)
– 1x M.2 25110/2580 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 25110/2580 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 5Gbps Type-C Port

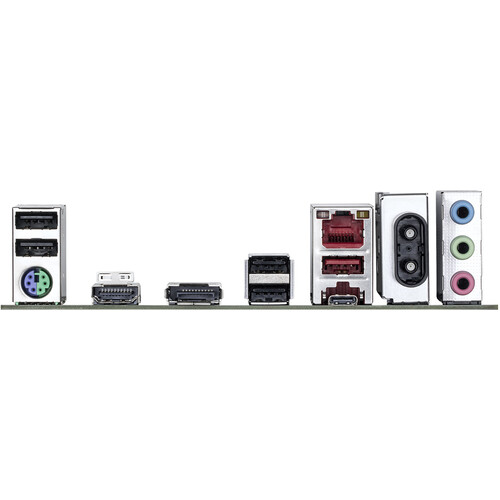

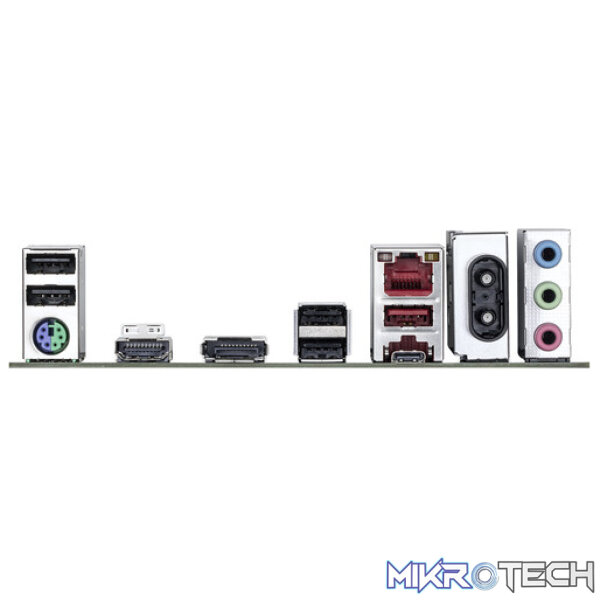

– 1x USB 20Gbps Type-C Port
– 1x USB 10Gbps Type-A Port
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port
– 3x 3.5mm Audio Jacks
– 1x PS/2 Combo Port (Keyboard, Mouse)
– 2x Antenna Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– Intel WiFi 6E Tri-Band Adapter, Bluetooth 5.3
– Realtek ALC892 High Definition Audio CODEC
– 8+1+2 Hybrid VRM Solution
– Supports Windows 11 64-Bit
– 3 Year Warranty

Description

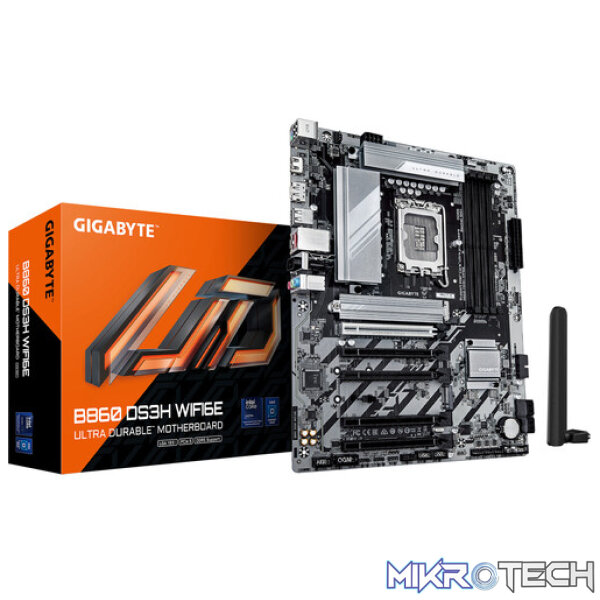

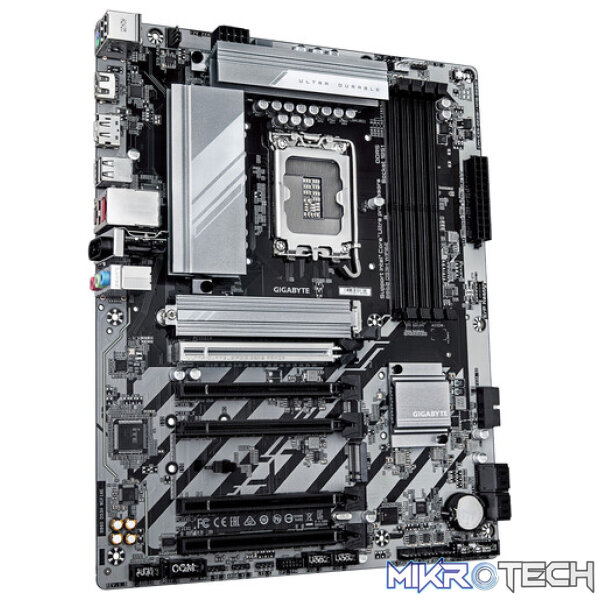

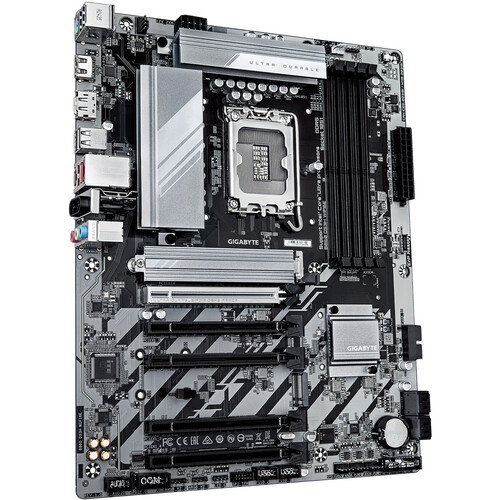

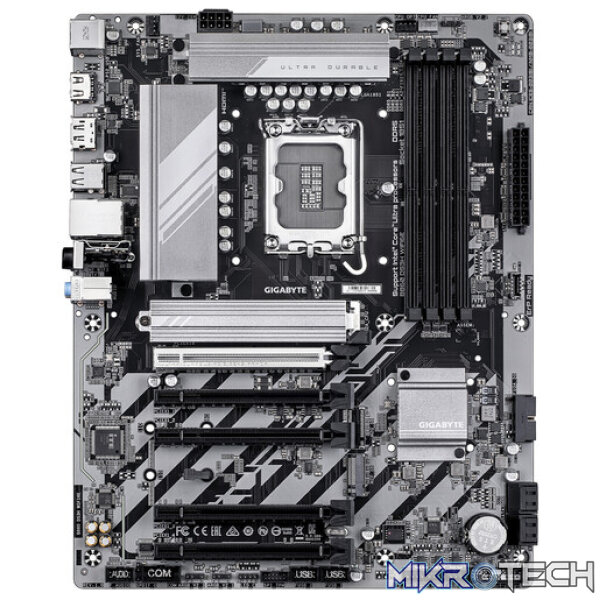

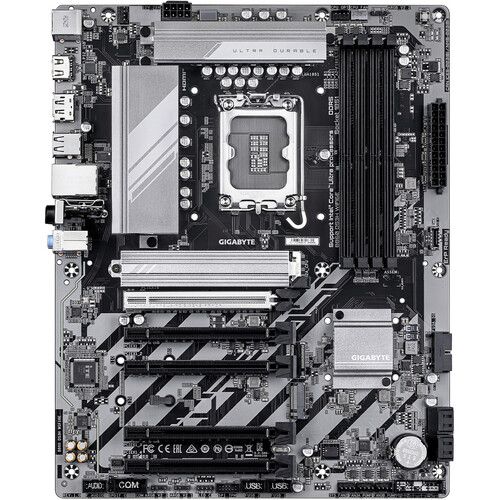

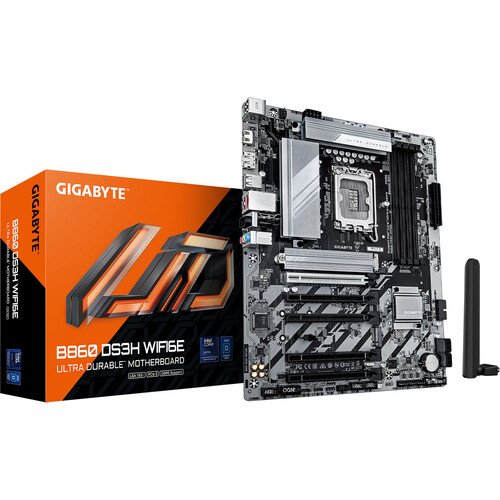

Gigabyte B860 DS3H WiFi6E Intel ATX LGA1851 DDR5 Motherboard

GA-B860-DS3H-WIFI6E

Modern Connectivity Meets High-Speed Performance

The Gigabyte B860 DS3H WiFi6E equips your build with next-gen technology in a versatile ATX format. Crafted for Intel LGA1851 platforms and compatible with 12th to 14th Gen Intel® Core™ and Ultra Series 2 CPUs, it supports ultra-fast DDR5 memory, PCIe 5.0 slots, Wi?Fi 6E, and 2.5?GbE LAN, ensuring your system remains future-ready, whether you’re gaming, streaming, or creating.

Key Highlights

• Premium VRM & Thermal Design:
  Built on an 8+1+2 phase hybrid VRM with a 6-layer PCB and full-metal heatsinks for stellar stability during overclocking. M.2 Thermal Guard helps maintain SSD performance during sustained use.

• High-Speed DDR5 Support:
  Includes D5 Bionic Corsa and AI HyperTune BIOS for intelligent memory tuning—boosting reliability and allowing DDR5 speeds of up to 9066 MT/s.

• Blazing Storage & GPU Expansion:
  Equipped with a PCIe 5.0 x16 slot and two M.2 SSD slots (PCIe 5.0 + PCIe 4.0) for fast drives and GPUs.

• Cutting-Edge Networking:
  Features Wi?Fi 6E (802.11ax) with the WiFi EZ?Plug connector and 2.5?GbE LAN for high-speed wired and wireless connections.

• User-Friendly Design:
  Includes builder aids like PCIe EZ?Latch, M.2 EZ?Latch Plus, Q?Flash Plus, EZ-Debug Zone, and a customizable, multi?theme BIOS interface.

• High-Fidelity Audio:
  Delivers immersive sound with Hi?Fi audio capacitors, Audio Noise Guard, and standard 8?channel audio output.

Why It’s a Smart Choice
The B860 DS3H WiFi6E delivers a future-ready upgrade path for creators and gamers alike—offering high-speed memory, robust thermal control, and fast networking, all while keeping the build friendly to both newbies and pros.
