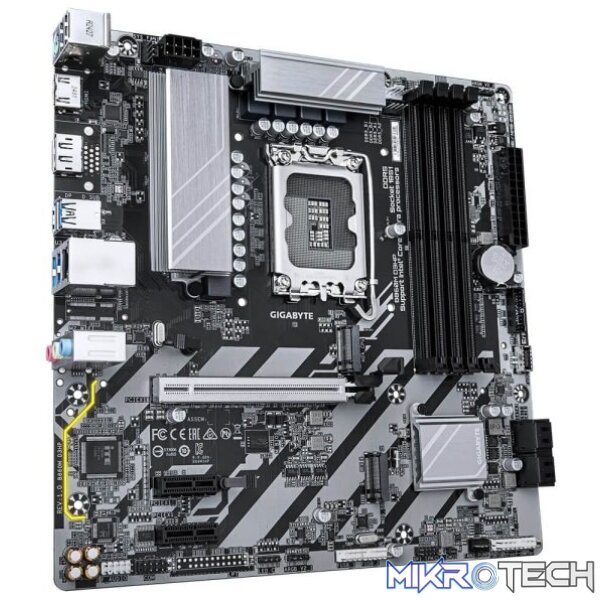

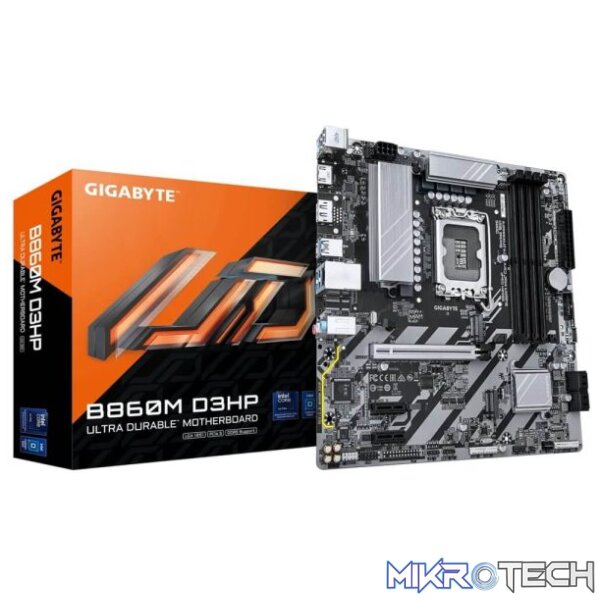

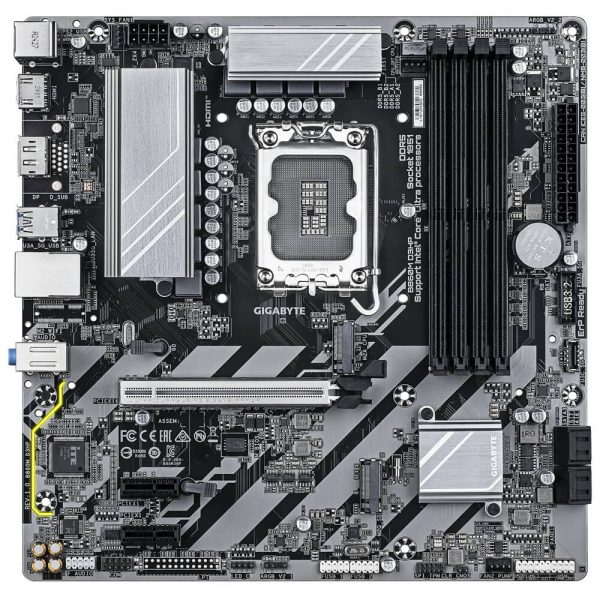

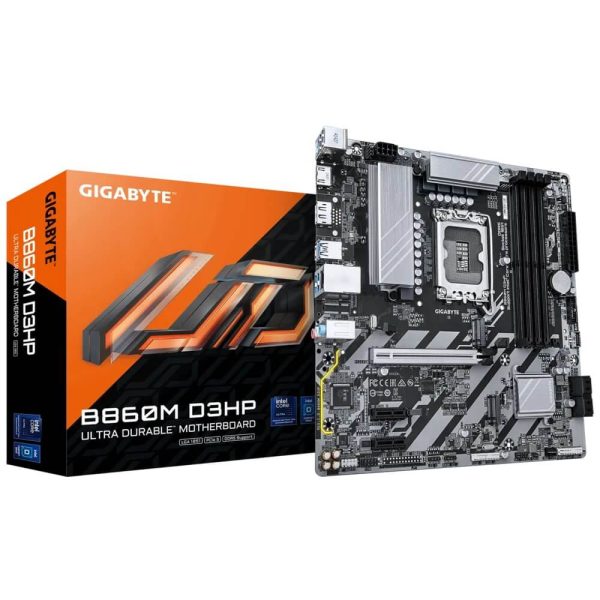

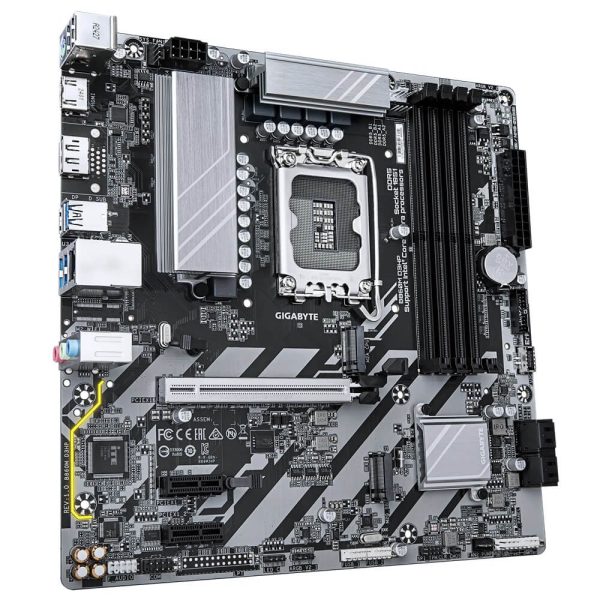

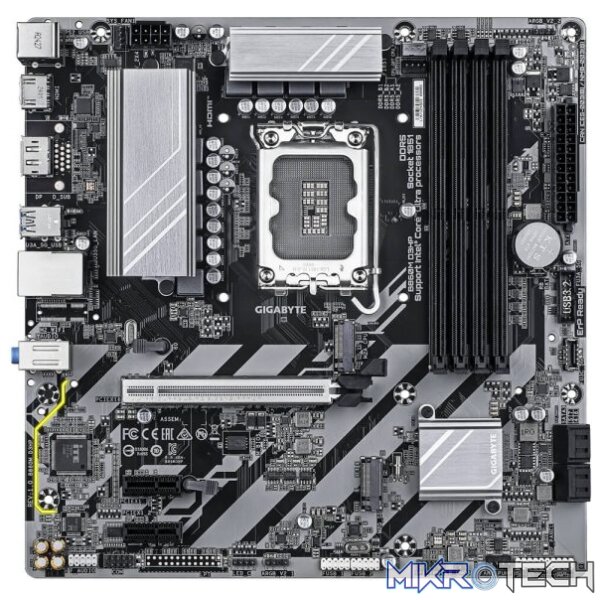

Gigabyte B860M D3HP LGA 1851 micro-ATX DDR5 Motherboard
R2,599.99 incl. VAT
In stock
KEY FEATURES:
– Micro-ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
– Supports Up to DDR5-9066 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 2x PCIe 3.0 x1 Slots (x1 Physical)
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 5Gbps Type-C Port
– 3x USB 5Gbps Type-A Ports
– 3x USB 2.0 Type-A Ports
– 1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port
– 3x 3.5mm Audio Jacks
– 1x PS/2 Combo Port (Keyboard, Mouse)
– Realtek Gigabit Ethernet RJ-45 LAN
– Realtek High Definition Audio CODEC
– 4+1+2 Twin Hybrid VRM Solution
– Supports Windows 11 64-Bit
– 3 Year Warranty
Description
Gigabyte B860M D3HP LGA 1851 micro-ATX DDR5 Motherboard
GA-B860M-D3HP
The Gigabyte B860M?D3HP is a compact micro?ATX motherboard built on the Intel B860 chipset. It supports Intel Core Ultra (Series?2) processors via the LGA?1851 socket and provides robust memory and expansion capabilities in a user-friendly design—perfect for space-conscious builds focused on performance.
Key Features
CPU & Memory Support
Supports Intel Core Ultra (Series?2) processors with LGA?1851. Offers four DDR5 DIMM slots (dual-channel), supporting up to 256?GB and overclocked speeds up to DDR5?9066 MHz.Storage & Expansion
Features a PCIe?5.0 x16 slot with reinforced “PCIe UD Slot,” two M.2 slots for ultra-fast NVMe storage, and four SATA III ports for legacy drives.Thermal & Build Quality
Includes full-metal VRM heatsinks and M.2 Thermal Guard to ensure stable performance under load.Networking & I/O
Integrated Gigabit Ethernet with bandwidth management for low-latency connectivity. Back panel includes HDMI and DisplayPort outputs, USB 3.2 Gen?1 and USB 2.0 ports, plus front-panel USB?C support.DIY-Friendly Features
EZ-Latch Plug, Plus, and Click hardware facilitates easy, tool-free installation of graphics cards and M.2 SSDs.
The Gigabyte B860M D3HP offers an outstanding combination of compact form, modern DDR5 support, and handy builder features. It’s a great pick for anyone seeking minimal footprint without sacrificing performance or ease of assembly—especially for gaming or content creation setups.
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | D3HP Series |
| Model | B860M D3HP (GA-B860M-D3HP) |
| CPU Support | Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2) |
| Chipset | Intel B860 Express |
| Memory Support | |
| Intel Core Ultra Series Processors (Series 2) | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 2.1 port, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel B860 Chipset | 2x PCIe 2.0 x1 Physical, x1 Electrical slots |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) |
| Intel B860 Chipset | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek 7.1 Surround Sound CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, Impedence sense for front-panel headphones | |

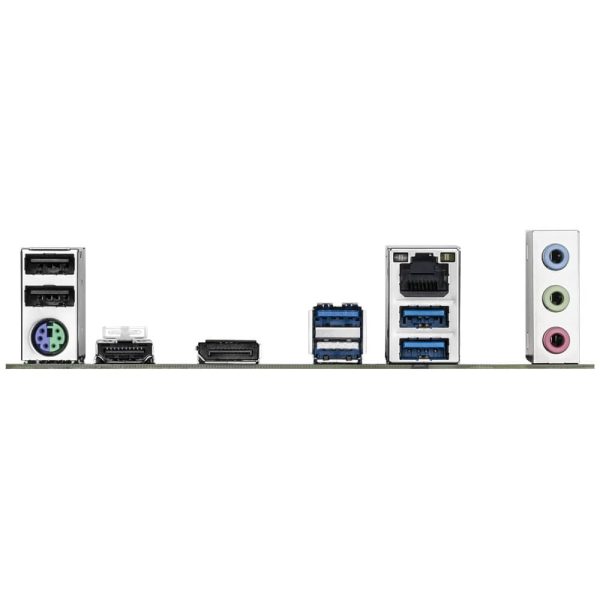

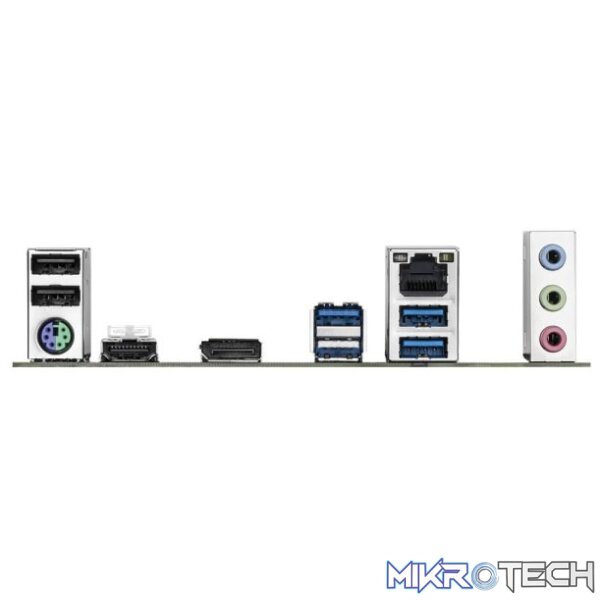

| Connectivity | |
| Ports | 3x USB 5Gbps Type-A Ports |
| 3x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 (TMDS) | |
| 1x DisplayPort 2.1 Port | |
| 3x 3.5mm Audio Jacks | |
| 1x PS/2 Combo Port (Keyboard, Mouse) | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 1x system fan header | |
| 1x system fan/water cooling pump header | |
| 2x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1x serial port header | |
| 1x Clear CMOS jumper | |
| Buttons | N/A |
| LED Displays | Gigabyte EZ-Debug Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Box Contents | UserÂ’s Manual |
| Quick Installation Guide | |
| I/O Shield | |
| Two SATA cables | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
