KEY FEATURES:

– Micro-ATX, Socket AM5, AMD B850 Chipset
– Supports Ryzen 7000 / 8000 / 9000 Series Processors
– 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
– 1 x PCIe 5.0 x16 Slot
– 1 x PCIe 3.0 x16 Slot (x4 Electrical)
– 1 x M.2 PCIe 5.0 NVMe Slot
– 1 x M.2 PCIe 4.0 NVMe Slot
– 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 10
– 2.5Gbps LAN, Wi-Fi 6E & Bluetooth 5.3
– 1 x HDMI 2.1, 2 x DisplayPort 1.4
– 1 x Rear USB Type-C 5Gb/s
– 1 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
– 4 x Rear USB 2.0/1.1 Ports
– 1 x PS/2 Keyboard/Mouse Port
– 3 x Rear Audio Jacks
– M.2 EZ-Latch Click & M.2 EZ-Latch Plus
– M.2 Thermal Guard
– PCIe EZ-Latch & Wi-Fi EZ-Plug
– Q-Flash Plus – Update BIOS without CPU / RAM / GPU
– EZ Debug Zone
– 3 x ARGB Gen2 Headers
– 3 Year Warranty

Description

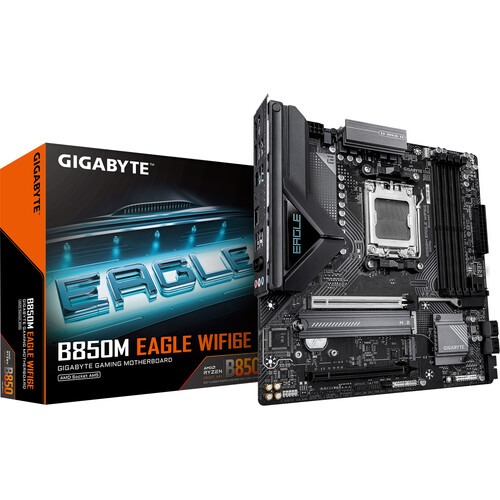

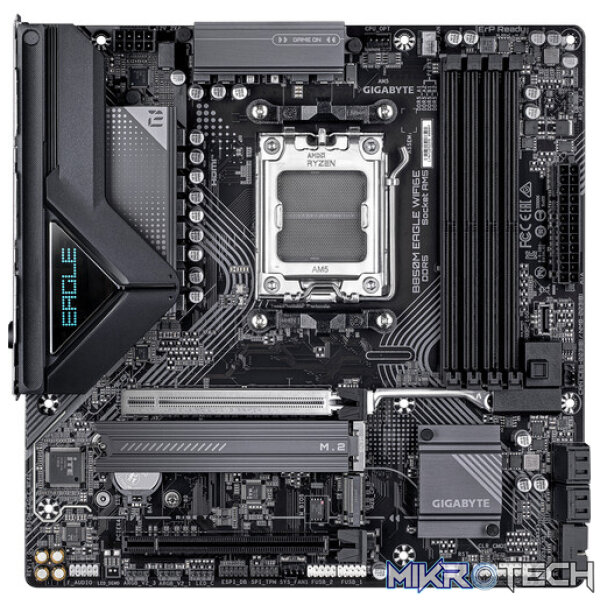

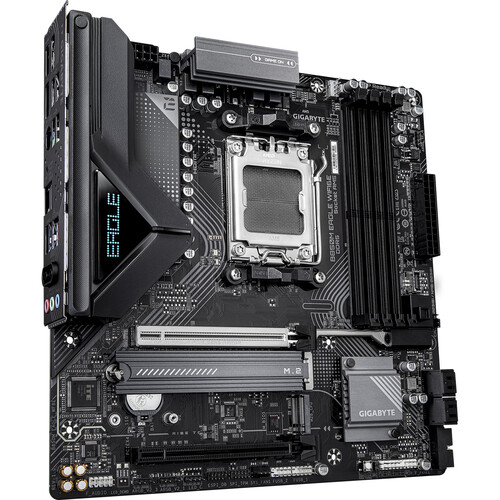

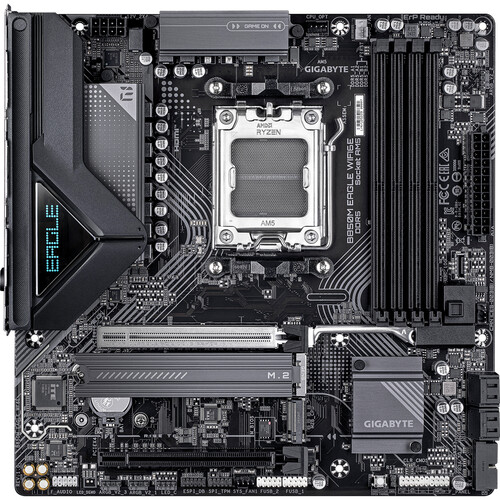

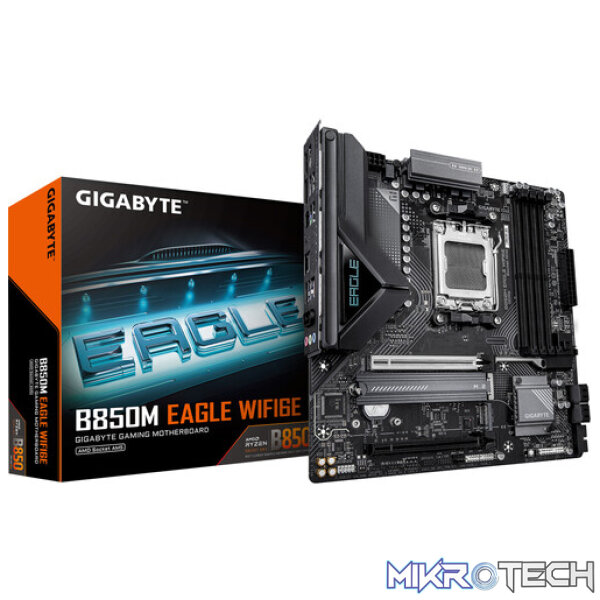

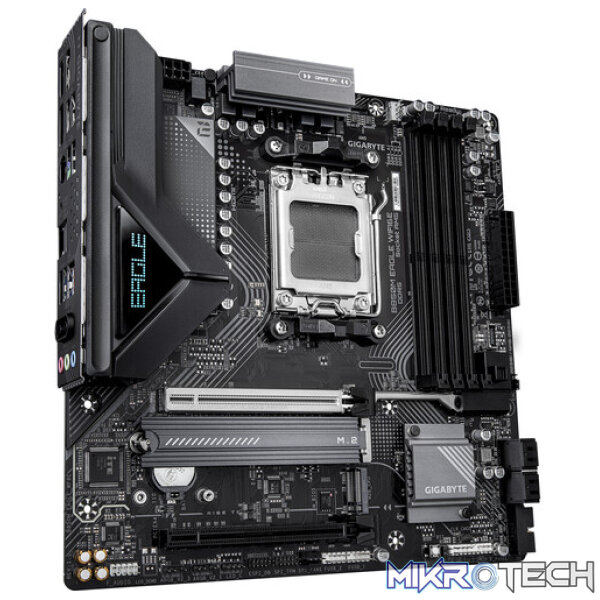

Gigabyte B850M EAGLE WIFI6E AM5 Micro?ATX DDR5 Motherboard

B850M EAGLE WF6E

The Gigabyte B850M EAGLE WIFI6E is a compact Micro?ATX motherboard powered by the AMD B850 chipset and Socket AM5, ideal for Ryzen™ 7000, 8000, and 9000 series CPUs. It features robust 8+2+2 digital VRM on a 6-layer PCB, support for DDR5 memory up to 8200?MT/s, a PCIe 5.0 x16 slot, and two M.2 SSD slots. Built-in Wi?Fi 6E with EZ?Plug antenna, 2.5?GbE LAN, and thermal innovations like VRM Thermal Armor Advanced make this board perfect for high-performance, small-form-factor builds. One-click X3D Turbo Mode boosts FPS even on non-X3D Ryzen processors, while DIY-friendly features like EZ?Latch, Q?Flash Plus, and EZ?Debug Zone simplify setup and maintenance.

Key Features

• 8?+?2?+?2 Twin digital VRM design on 6?layer mid-loss PCB

• Supports AMD Socket AM5 for Ryzen 9000 / 8000 / 7000 series processors

• Dual-channel DDR5 memory support with overclocking up to 8200?MT/s using EXPO® / XMP

• X3D Turbo Mode – BIOS-based one-click FPS boost for Ryzen CPUs, even non-X3D

• 1 × PCIe 5.0 x16 UD slot and PCIe 3.0 x4 expansion

• 2 × M.2 SSD slots: one PCIe 5.0 x4, one PCIe 4.0 x4 with Thermal Guard

• VRM Thermal Armor Advanced + M.2 Thermal Guard for optimal heat dissipation

• Smart Fan 6 cooling with 4 fan headers and dual fan curve modes

• Integrated Wi-Fi 6E with directional EZ?Plug antenna and Bluetooth 5.3

• 2.5?GbE LAN for low-latency wired networking

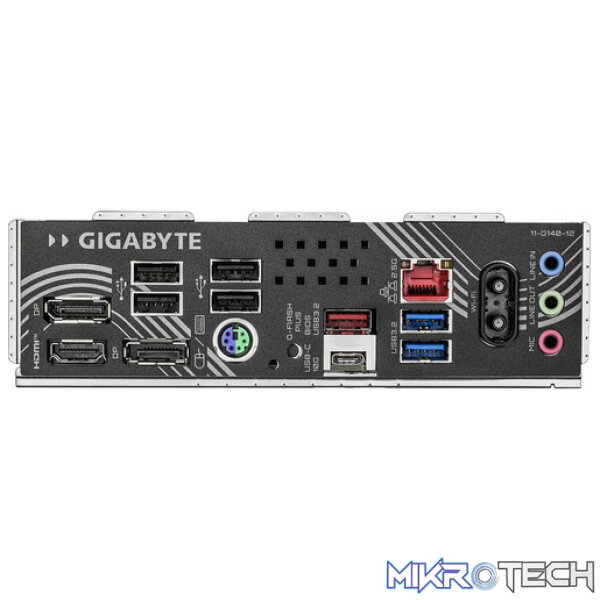

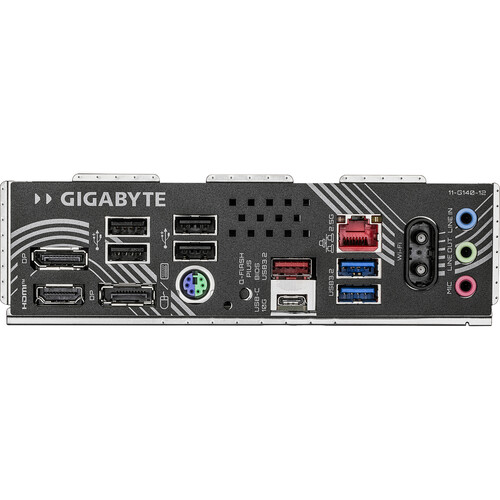

• Rear I/O: USB?C Gen2, USB 3.2 Gen2, 2× USB 3.2 Gen1, 4× USB 2.0, HDMI 2.1, 2× DisplayPort 1.4a, Q?Flash Plus button

• HiFi 8?channel audio with audio noise guard and high?end capacitors

• DIY design: EZ?Latch, PCIe EZ?Latch Plus, M.2 EZ?Latch Click, EZ?Debug LEDs, Multi?Key control

• RGB Fusion support with 1 RGB and 3 ARGB headers
