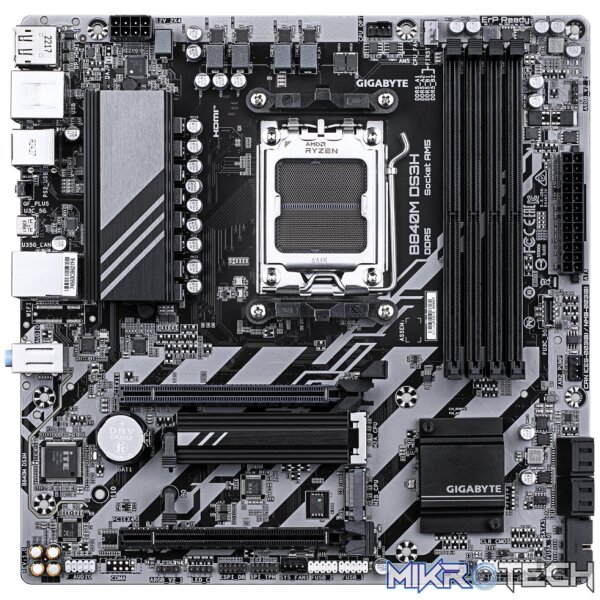

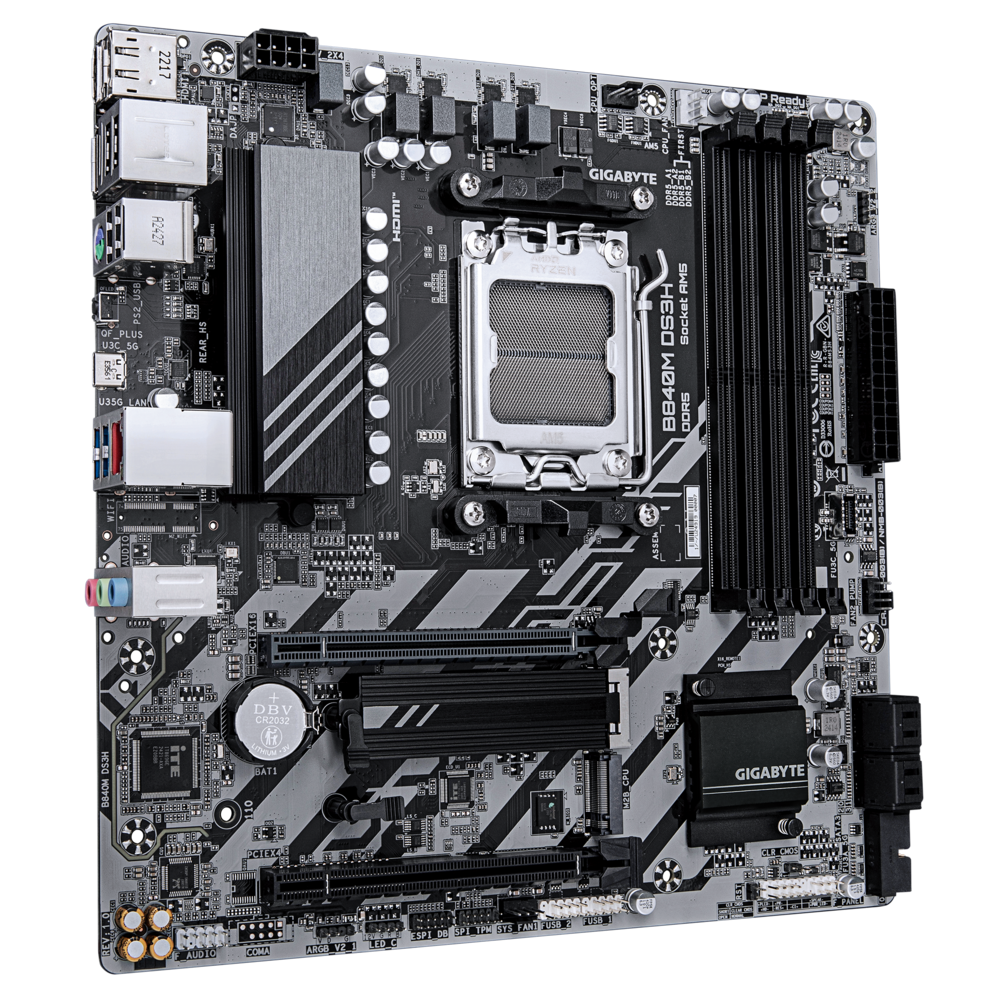

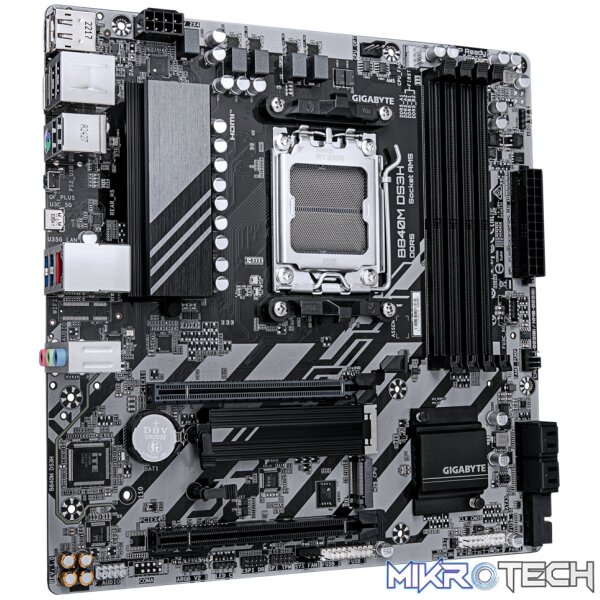

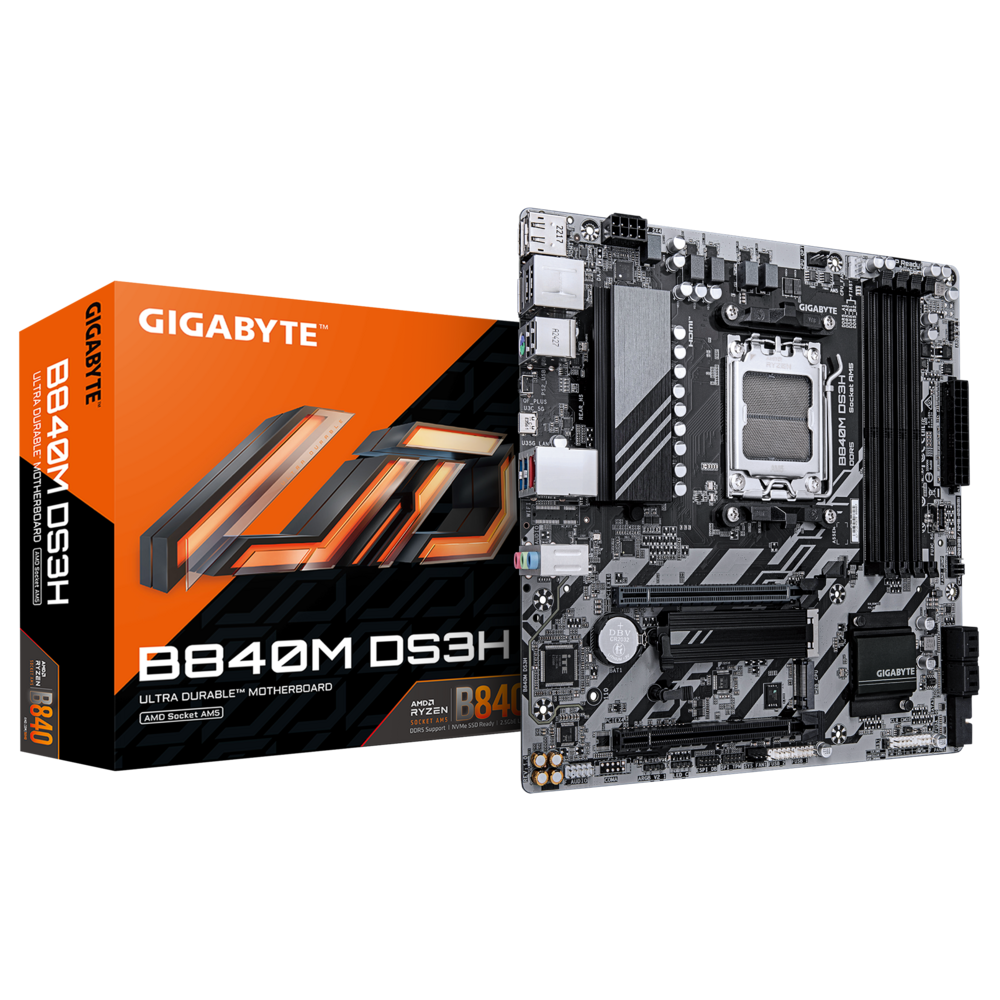

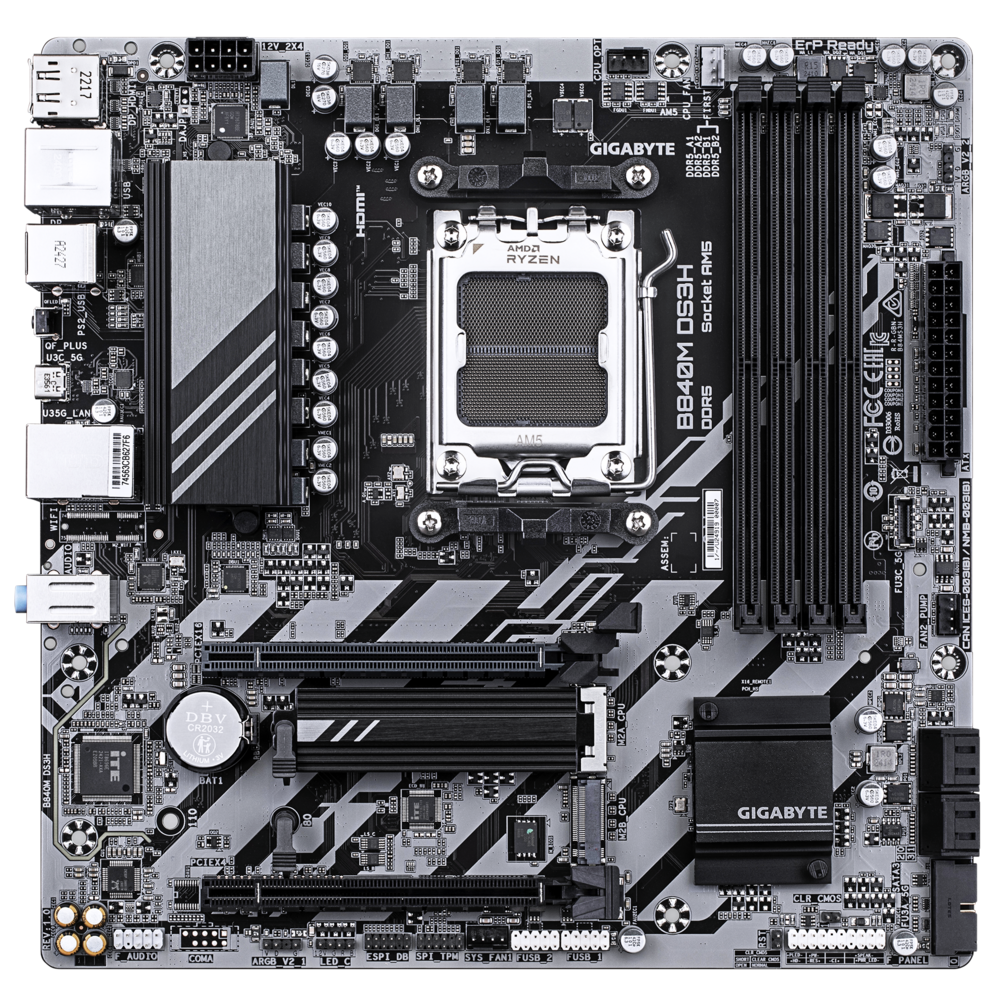

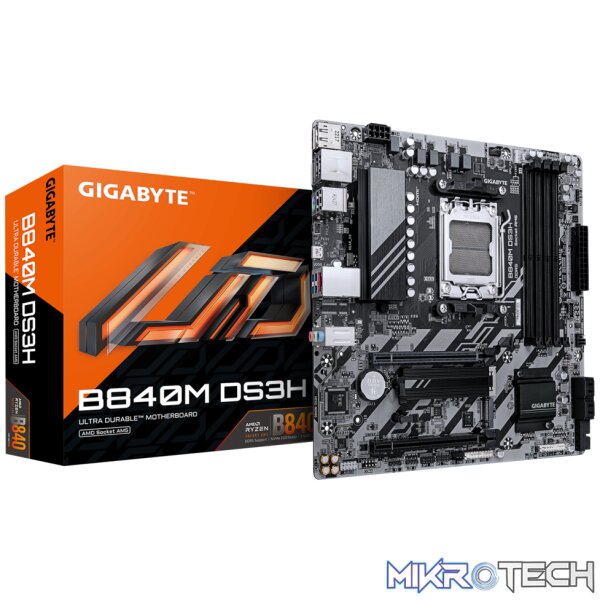

Gigabyte B840M DS3H AM5 Micro-ATX DDR5 Motherboard
R2,929.99 incl. VAT
Only 9 left in stock
KEY FEATURES:
– AMD Socket AM5 support for Ryzen?9000 8000 7000 series CPUs
– 8+2+2 phase digital VRM for stable power delivery
– DDR5 memory support up to 128?GB and 8200?MHz OC
– Two PCIe?4.0 x4 M.2 slots with M.2 Thermal Guard
– 1× PCIe?4.0 x16 slot with PCIe EZ?Latch
– Built?in Wi?Fi 6E and 2.5?GbE LAN connectivity
– USB?C Gen2 and multiple USB 3.2 Gen1 ports
– HDMI + dual DisplayPort video outputs
– Smart Fan?6 thermal system with hybrid fan headers
– Q?Flash Plus for BIOS updates without CPU or RAM
– X3D Turbo mode for boosted gaming performance
– RGB Fusion headers and EZ?Debug debug LEDs
– Reliable micro?ATX layout with Ultra Durable components
– 3 Year Warranty
Description
Gigabyte B840M DS3H AM5 Micro?ATX DDR5 Motherboard
B840M DS3H
The Gigabyte B840M DS3H is a micro?ATX motherboard built on the AMD B840 chipset with Socket AM5, supporting Ryzen 7000 / 8000 / 9000 series processors . This compact board features an 8+2+2-phase VRM design, high-speed DDR5 support up to 8200?MHz, and dual PCIe 4.0 M.2 slots for fast storage. With Wi?Fi 6E, 2.5?GbE LAN, USB?C Gen2, HDMI/DP outputs, and Smart Fan?6 cooling control, itÂ’s a perfect small-form?factor platform for budget-friendly AM5 builds.
Key Features:
AMD Socket AM5 support for Ryzen?9000 8000 7000 series CPUs
8+2+2 phase digital VRM for stable power delivery
DDR5 memory support up to 128?GB and 8200?MHz OC
Two PCIe?4.0 x4 M.2 slots with M.2 Thermal Guard
1× PCIe?4.0 x16 slot with PCIe EZ?Latch
Built?in Wi?Fi 6E and 2.5?GbE LAN connectivity
USB?C Gen2 and multiple USB 3.2 Gen1 ports
HDMI + dual DisplayPort video outputs
Smart Fan?6 thermal system with hybrid fan headers
Q?Flash Plus for BIOS updates without CPU or RAM
X3D Turbo mode for boosted gaming performance
RGB Fusion headers and EZ?Debug debug LEDs
Reliable micro?ATX layout with Ultra Durable components
Full Specifications Table:
| Specification | Details |
|---|---|
| Model | Gigabyte B840M DS3H (Rev 1.0 / 1.1) |
| Form Factor | Micro?ATX (244?×?244?mm) |
| Socket / Chipset | AMD AM5 / B840 |
| CPU Support | Ryzen?9000 /?8000 /?7000 Series |
| VRM Power Design | 8?+?2?+?2 digital VRM phases |
| Memory Support | 2× DDR5 DIMM slots, dual-channel, up to 128?GB |
| Memory OC | Supported up to 8200?MHz |
| PCIe Slots | 1× PCIe?4.0 x16 (with EZ-Latch), 1× PCIe?3.0 x1 |
| M.2 Slots | 2× PCIe?4.0 x4 M.2 with thermal guard |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | 2.5?GbE Ethernet (Realtek) |
| Wi?Fi / Bluetooth | Wi?Fi?6E (802.11ax), Bluetooth via antenna |

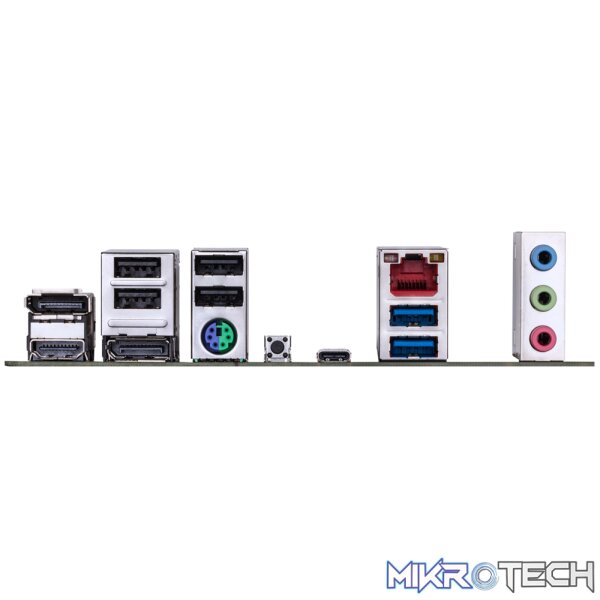

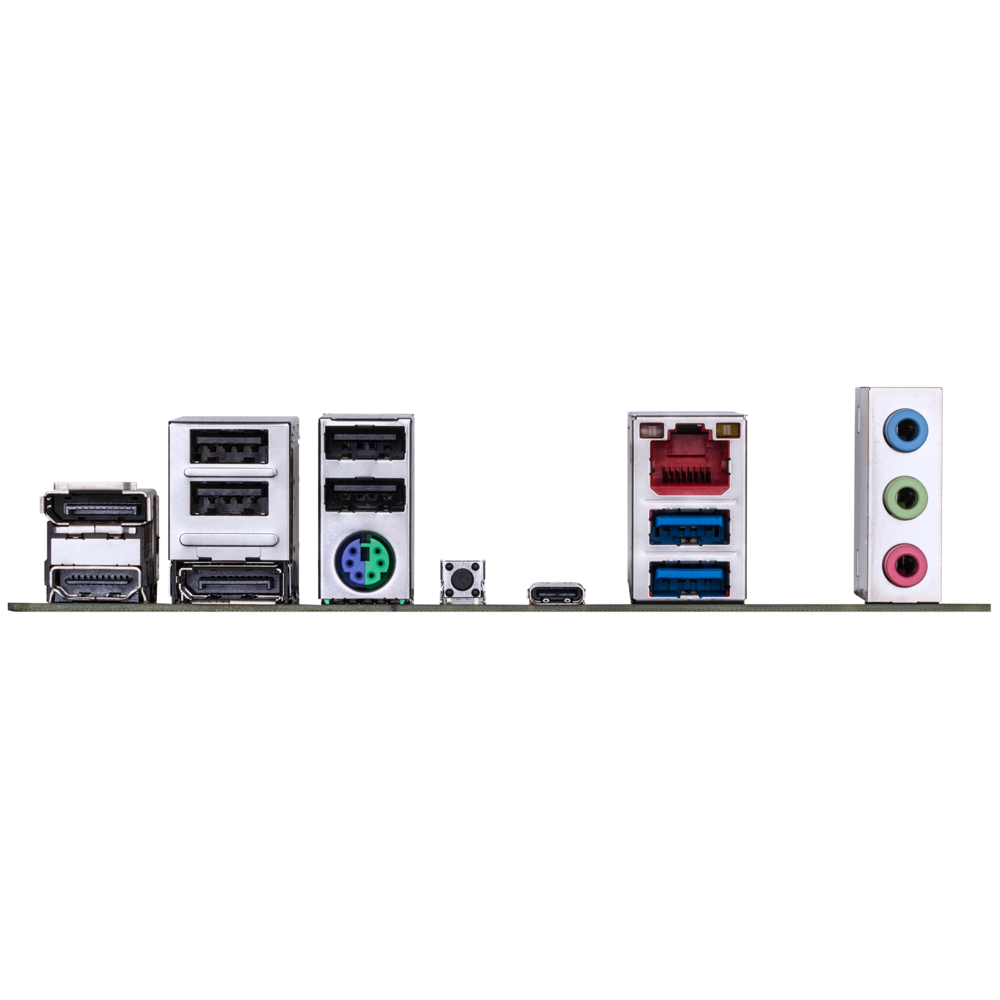

| Video Outputs | 1× HDMI, 2× DisplayPort |
| USB Ports | 1× USB?C Gen2, multiple USB 3.2 Gen1 and USB 2.0 ports |
| Audio | 8?Channel HD Audio with noise guard and high-quality caps |
| Cooling | Smart Fan?6 with hybrid headers and temperature sensors |
| BIOS Tools | Q?Flash Plus, X3D Turbo Mode, EZ?Debug, RGB Fusion |
| Extras | PCIe EZ?Latch, Multi?Key, RGB headers |
| Warranty | 3-year limited manufacturer warranty (region dependent) |
