Gigabyte B760M AORUS ELITE LGA 1700 micro-ATX DDR5 Motherboard
R3,919.99 incl. VAT
Only 8 left in stock
KEY FEATURES:
– Form Factor: Micro-ATX
– Chipset: Intel B760 Express
– Socket: LGA 1700
– CPU Support: Intel 14th / 13th / 12th Gen
– Memory: 4× DDR5 DIMM, up to 192GB, DDR5-7600+ (OC)
– Graphics: HDMI 2.1, DisplayPort 1.2 via CPU
– Expansion Slots: 1× PCIe 5.0 x16, 2× PCIe 3.0 x1
– Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6Gb/s
– Networking: Intel Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN
– USB (Rear): 1× USB-C 3.2 Gen 2×2, 2× USB-A 3.2 Gen 2, 4× USB-A 3.2 Gen 1, 4× USB 2.0
– USB (Internal): 1× USB-C 3.2 Gen 1, 2× USB 3.2 Gen 1 headers, 2× USB 2.0 headers
– Audio: Realtek ALC1220 8-channel HD audio
– Cooling: VRM Thermal Armor, M.2 Thermal Guard, Smart Fan 6
– RGB: RGB Fusion, 2× RGB, 2× ARGB headers
– Special Features: PCIe EZ-Latch, M.2 EZ-Latch Plus, Q-Flash Plus
– Warranty: 3 Years
Description

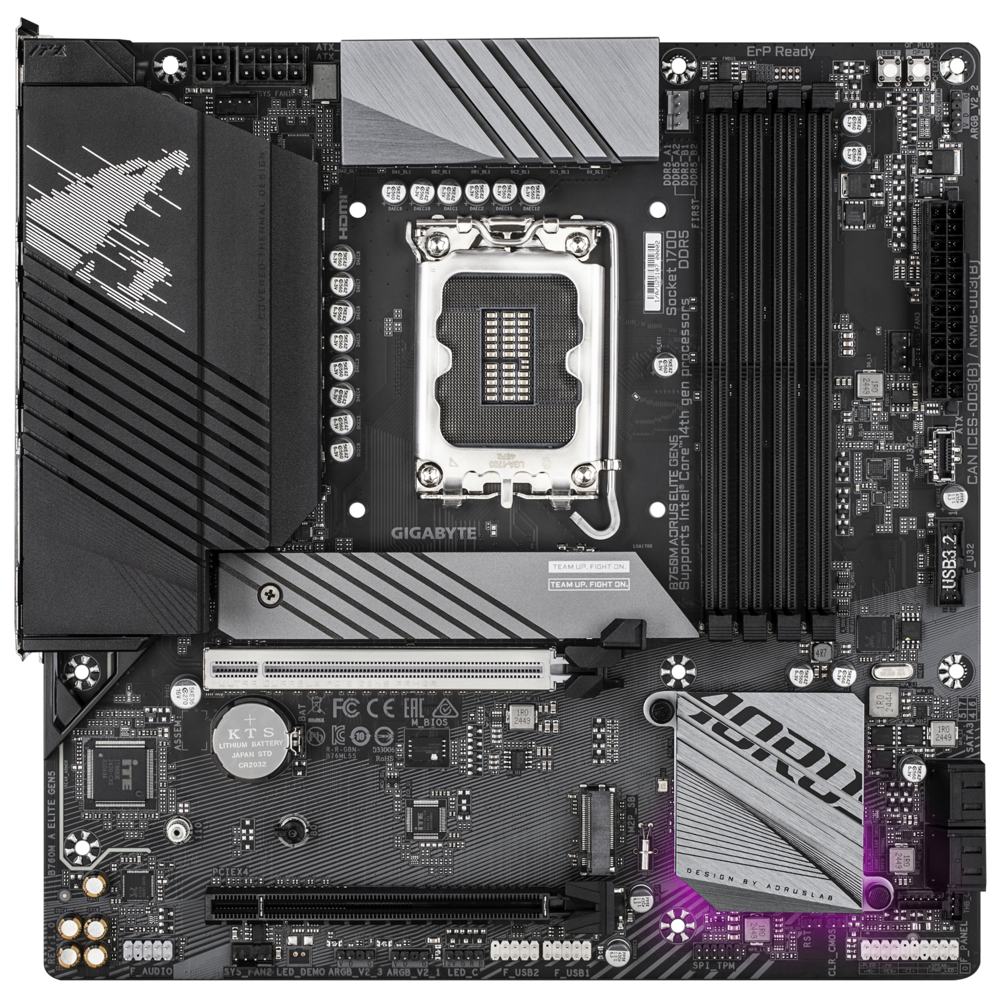

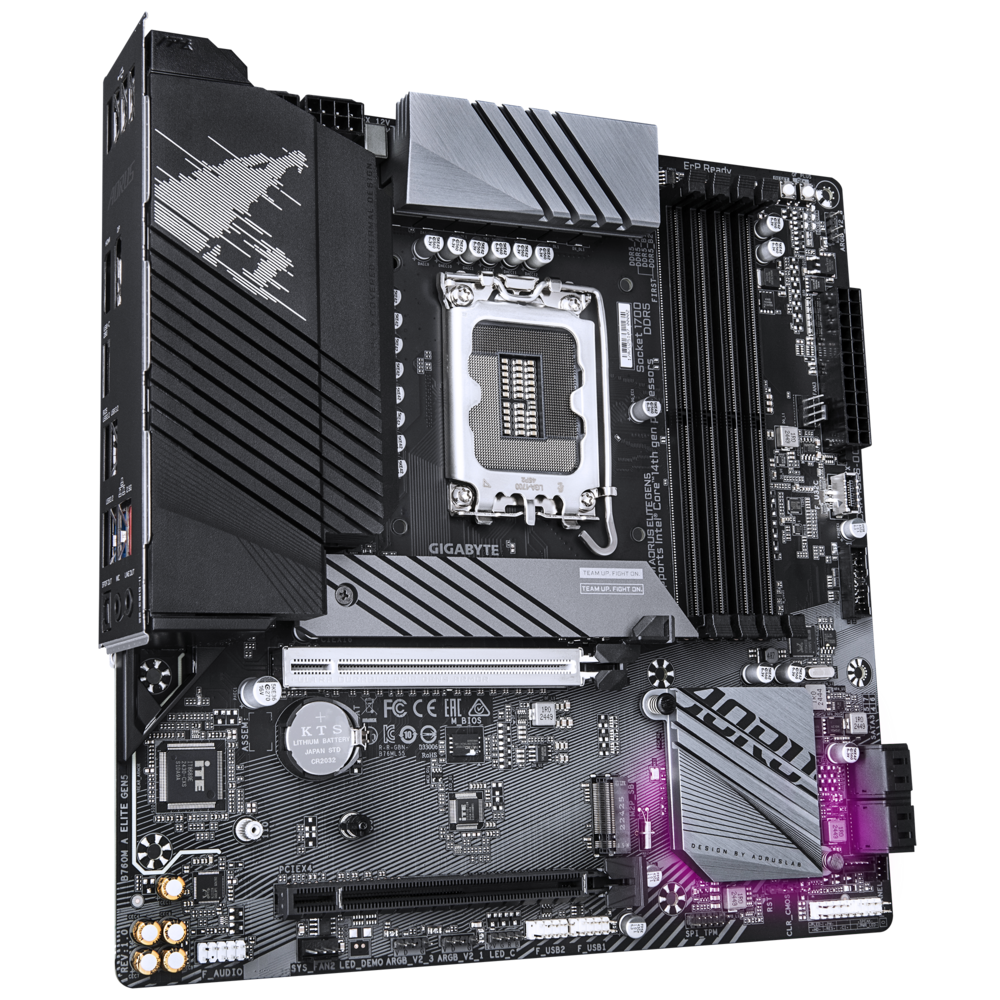

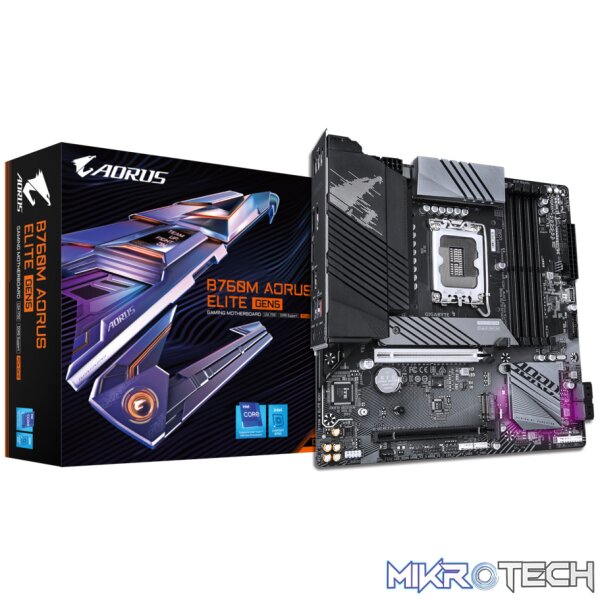

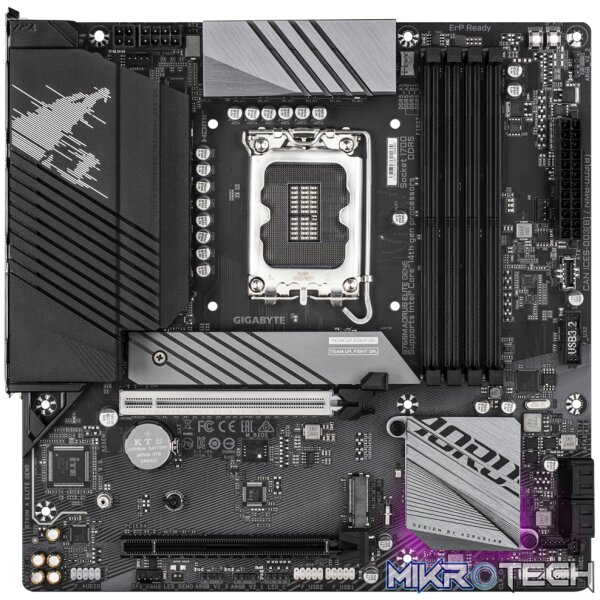

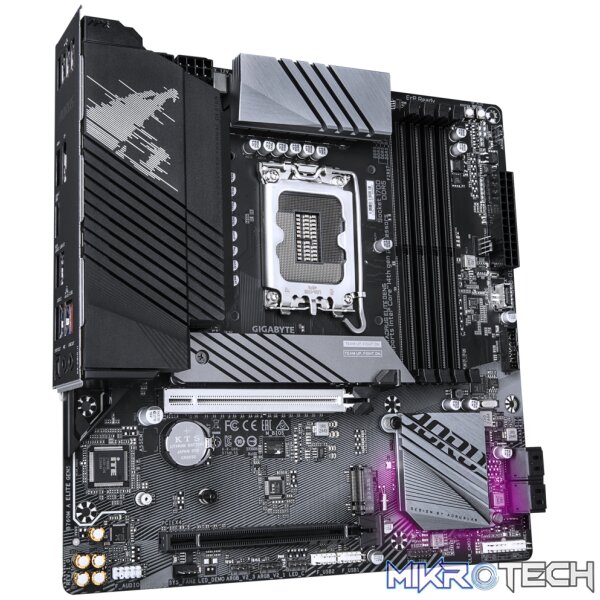

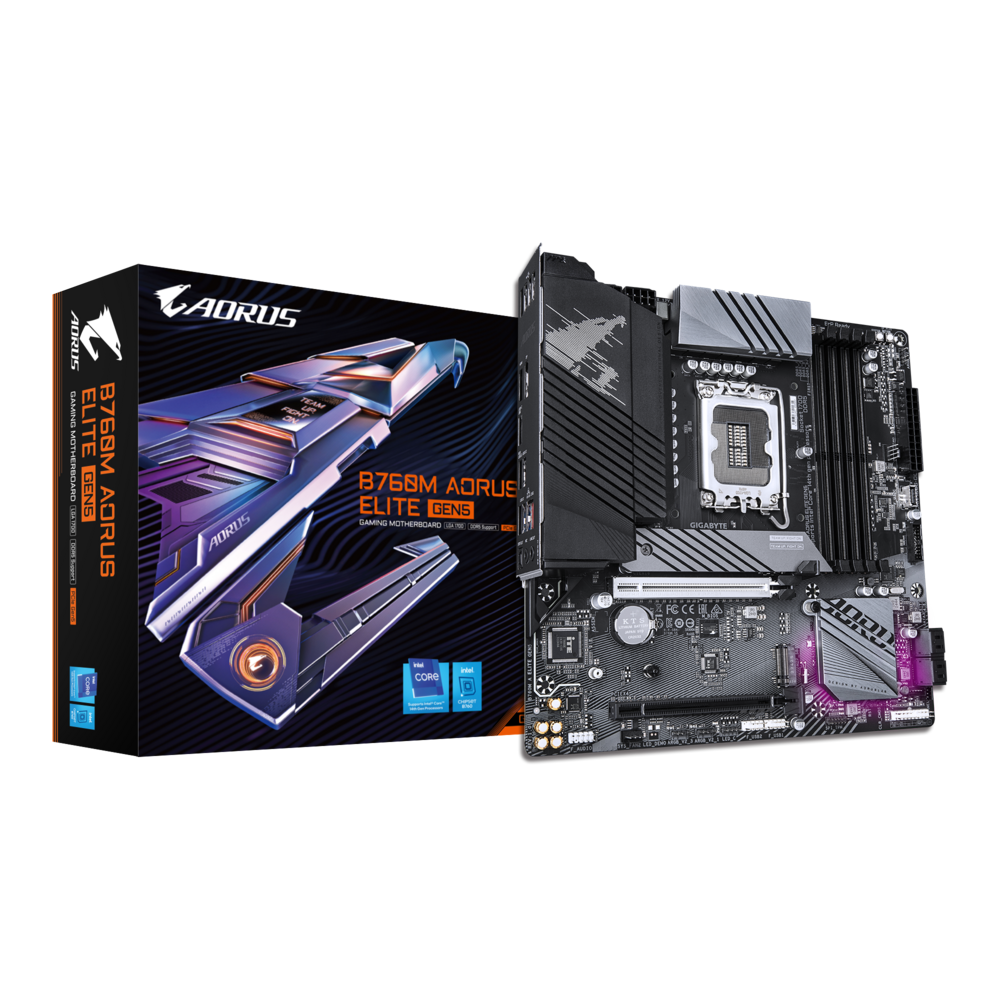

Gigabyte B760M AORUS ELITE LGA 1700 micro-ATX DDR5 Motherboard
B760M AORUS ELITE
The Gigabyte B760M AORUS ELITE ushers PCIe?5.0 into the micro?ATX segment—delivering future-ready graphics support, high-speed DDR5, Wi?Fi?6E, and robust thermal and builder-friendly enhancements in a compact form. Perfect for gamers and creators seeking next-gen performance in a smaller build.
Key Features
Next?Gen Graphics Ready
Full-length PCIe?5.0 x16 slot with UD Slot Armor ensures peak performance with upcoming GPUs.Quiet, Efficient Power Design
12+1+1 “Twin Hybrid” digital VRM, 60?A DrMOS, and a PCIe?5.0-ready, 6-layer, 2× copper PCB deliver stable power for 14th and 13th Gen Intel CPUs.High-Speed Memory & Storage
Supports DDR5 memory across 4 DIMM slots and includes dual M.2 PCIe?4.0 x4 slots for fast storage.Advanced Cooling
VRM Thermal Armor Advanced and M.2 Thermal Guard protect critical components under heavy load.Connectivity That CanÂ’t Wait
Offers Wi?Fi?6E, 2.5?GbE LAN, rear USB 3.2 Gen 2×2 Type?C (20?Gb/s), front USB-C (10?Gb/s), DisplayPort, HDMI, multiple USB ports, and SATA connections.DIY Friendly Build Features
Includes PCIe EZ?Latch, M.2 EZ?Latch Plus, Q?Flash Plus BIOS, and Multi-Key utilities—built for easy upgrades and maintenance.Premium Audio & Lighting
Equipped with ALC1220 Hi?Fi 8-channel audio, high-end capacitors, and RGB Fusion headers (RGB + Addressable RGB).
The Gigabyte B760M AORUS ELITE GEN5 breaks new ground in compact system builds—offering ultra-fast connectivity, high-end gaming and rendering capabilities, efficient thermal controls, and user-centric design. Ready for today’s CPUs and tomorrow’s GPUs.
Specifications:
| Category | Specification |
|---|---|
| Brand / Model | Gigabyte B760M AORUS ELITE |
| CPU Support | Intel® Core™ 14th, 13th, and 12th Gen processors (LGA 1700 socket) |
| Chipset | Intel® B760 Express chipset |
| Form Factor | Micro-ATX – 24.4cm × 24.4cm |
| Power Design | 12+1+1 phase Twin Hybrid digital VRM with 60A DrMOS, 6-layer 2× copper PCB |
| Memory Support | – 4 × DDR5 DIMM slots (dual channel) – Supports up to 192GB total capacity – Supports XMP 3.0 memory profiles – Overclocked speeds up to DDR5-7600 (OC) |
| Graphics Support | Integrated graphics via CPU: – 1 × HDMI 2.1 port (max 4096×2160 @ 60Hz) – 1 × DisplayPort 1.2 (max 4096×2304 @ 60Hz) – Supports HDCP 2.3, HDR |
| Expansion Slots | – 1 × PCIe 5.0 x16 slot (with PCIe UD Slot Armor & EZ-Latch) – 2 × PCIe 3.0 x1 slots |
| Storage | – 2 × M.2 PCIe 4.0 x4 slots (up to 2280) with M.2 Thermal Guard – 4 × SATA 6Gb/s ports (RAID 0, 1, 5, 10 support) |
| Networking | – Intel® Wi-Fi 6E (802.11ax), 2.4/5/6GHz bands – Bluetooth® 5.3 – Intel® 2.5GbE LAN (RJ-45) with cFosSpeed |

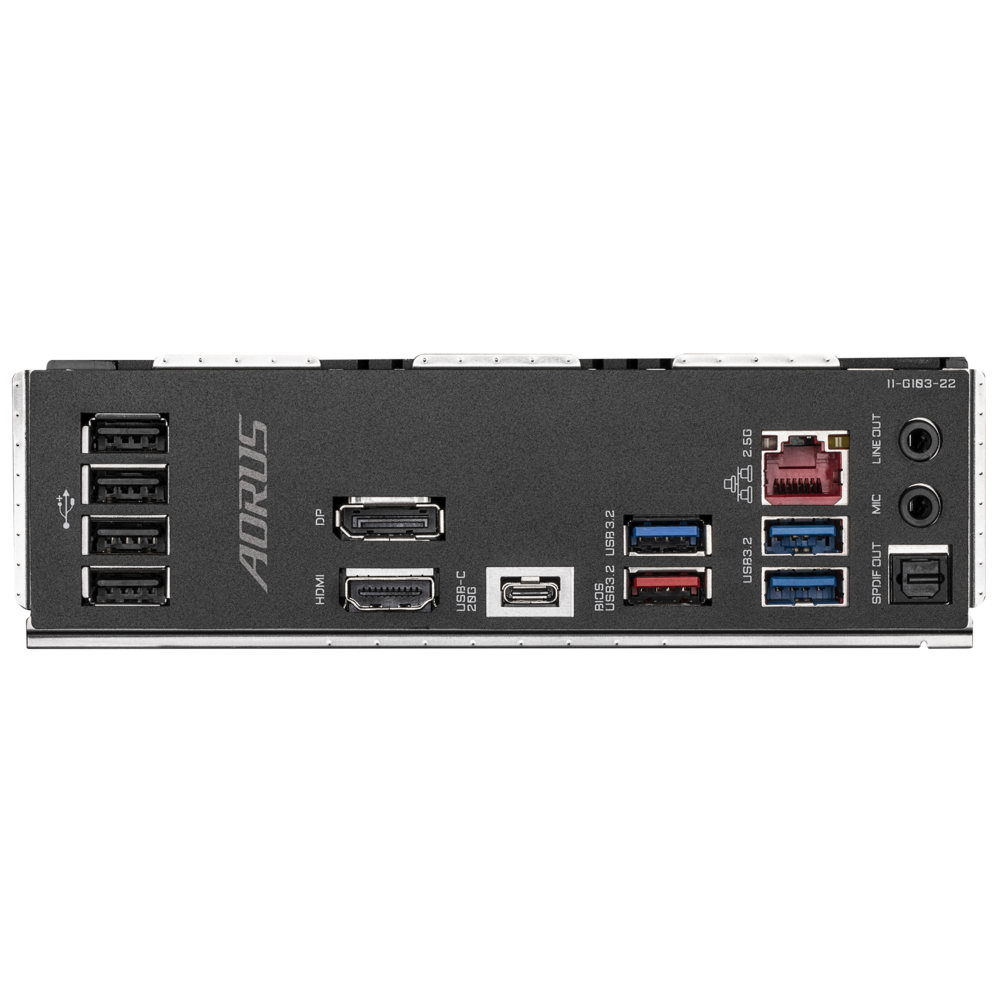

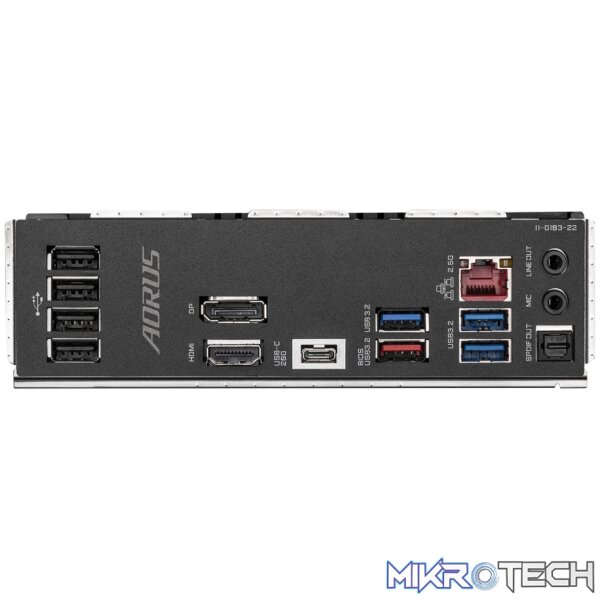

| USB Ports – Rear I/O | – 1 × USB 3.2 Gen 2×2 Type-C (20Gb/s) – 2 × USB 3.2 Gen 2 Type-A (10Gb/s) – 4 × USB 3.2 Gen 1 Type-A (5Gb/s) – 4 × USB 2.0/1.1 |
| USB Ports – Internal Headers | – 1 × USB 3.2 Gen 1 Type-C (front panel) – 2 × USB 3.2 Gen 1 headers (supports 4 ports) – 2 × USB 2.0/1.1 headers (supports 4 ports) |
| Audio | Realtek® ALC1220 8-channel HD Audio codec, high-end audio capacitors, audio noise guard |
| Cooling Features | – VRM Thermal Armor Advanced – M.2 Thermal Guard – Smart Fan 6 with multiple temperature sensors – 4 hybrid fan headers (PWM/DC) – Fan Stop function |
| RGB / Lighting | RGB Fusion with support for: – 2 × RGB LED headers – 2 × Addressable RGB LED headers – Controlled via Gigabyte Control Center |
| Special Features | – PCIe EZ-Latch – M.2 EZ-Latch Plus – Q-Flash Plus (BIOS update without CPU/GPU/RAM) – Ultra Durable™ PCIe Armor – Anti-sulfur resistors |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Included Accessories | – Wi-Fi antenna – 2 × SATA cables – User manual – M.2 screw package |
| Warranty | 3-year manufacturer warranty |
