Fbt – Amico 10Usb Portable Active System

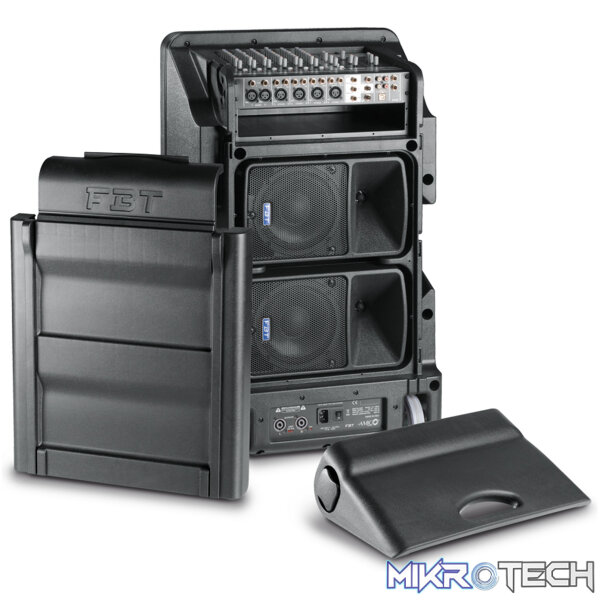

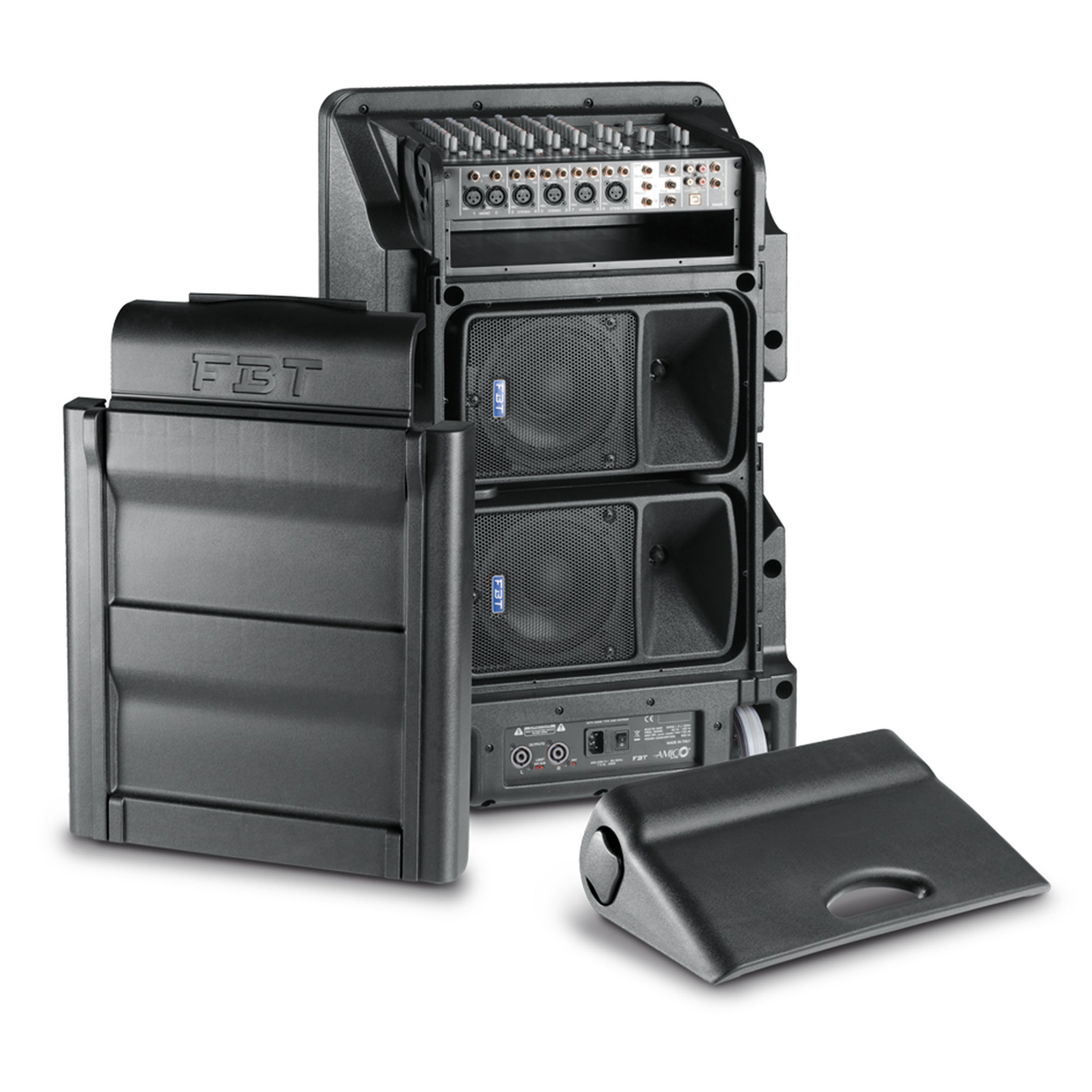

AMICO 10USB is a completely integrated, ready-wired sound system offering a convenient plug and play solution for Houses of Worship, schools, conference halls, DJ sets, sports centers and small musical groups performing live in small to medium sized venues.

FEATURES:

• 3-way, tri-amplified Bass-Reflex system

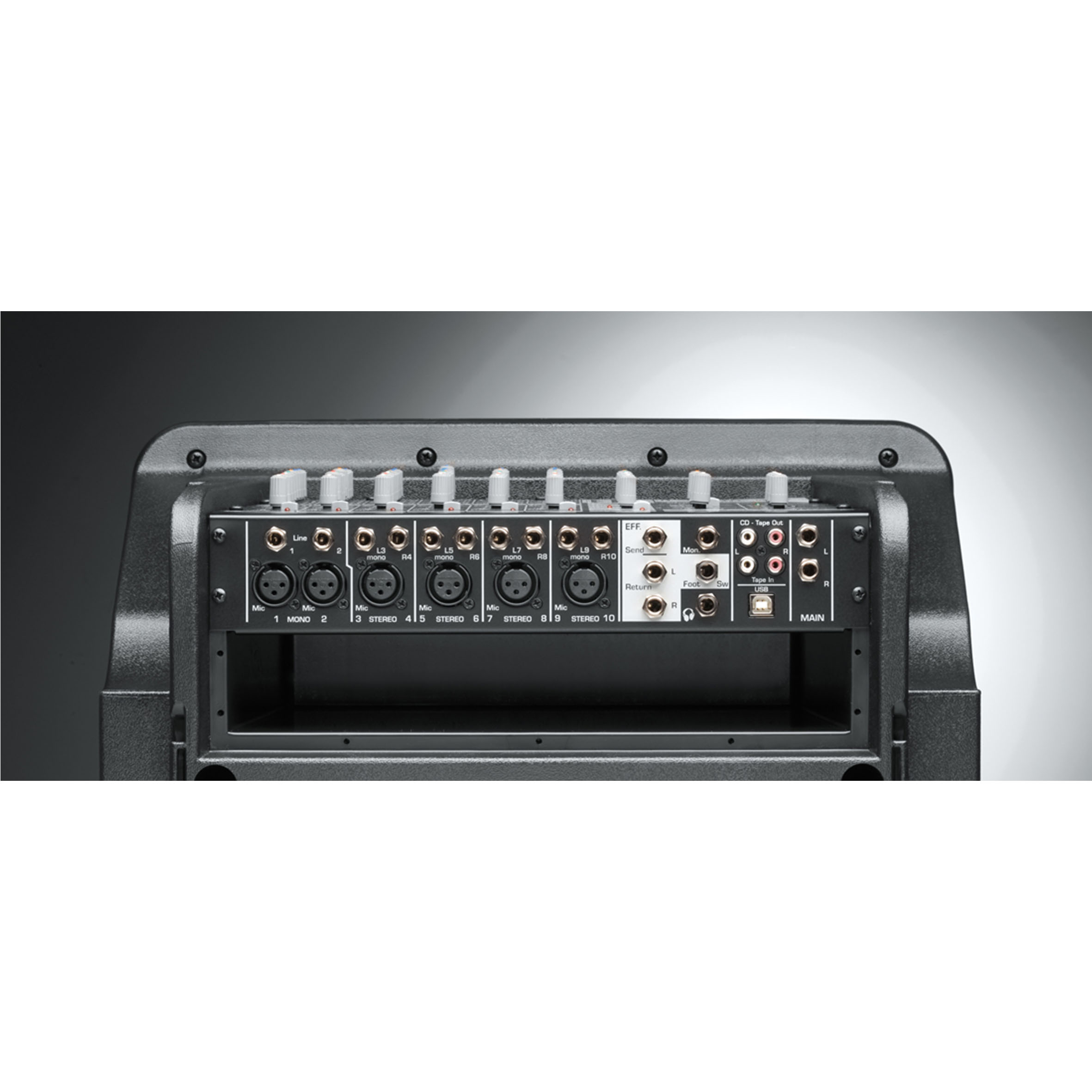

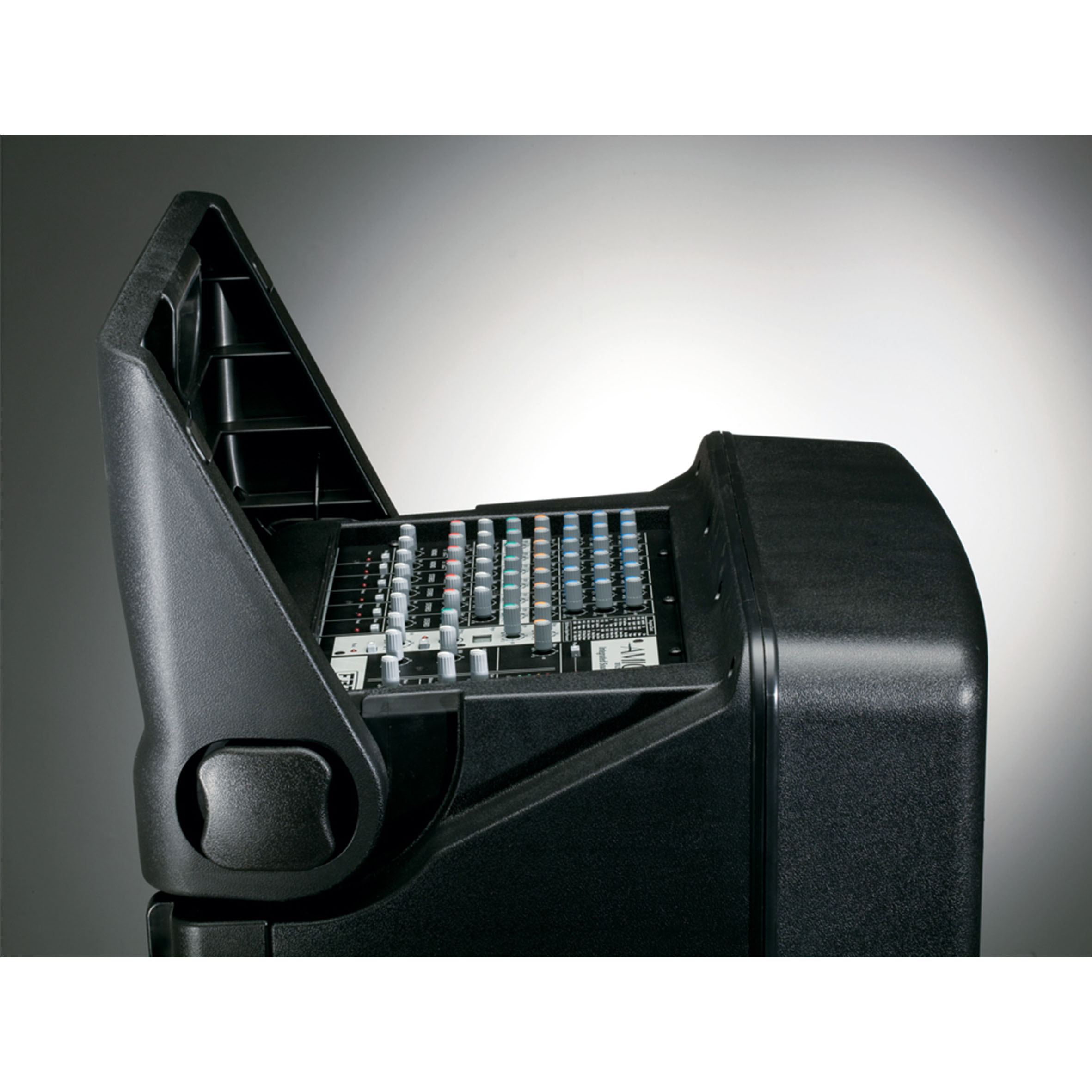

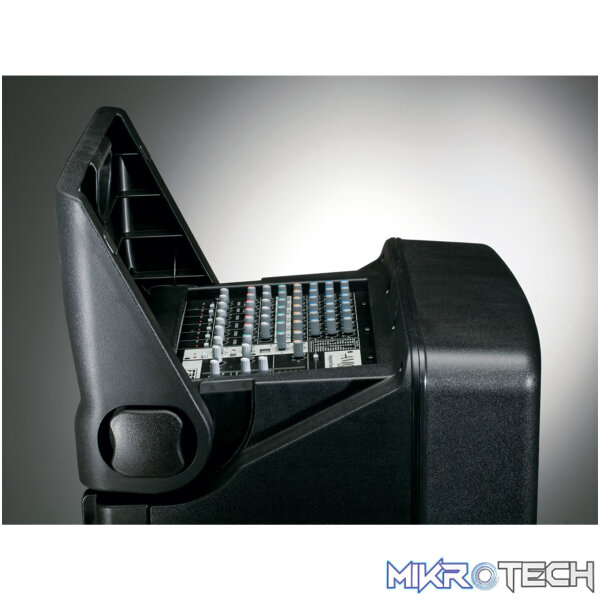

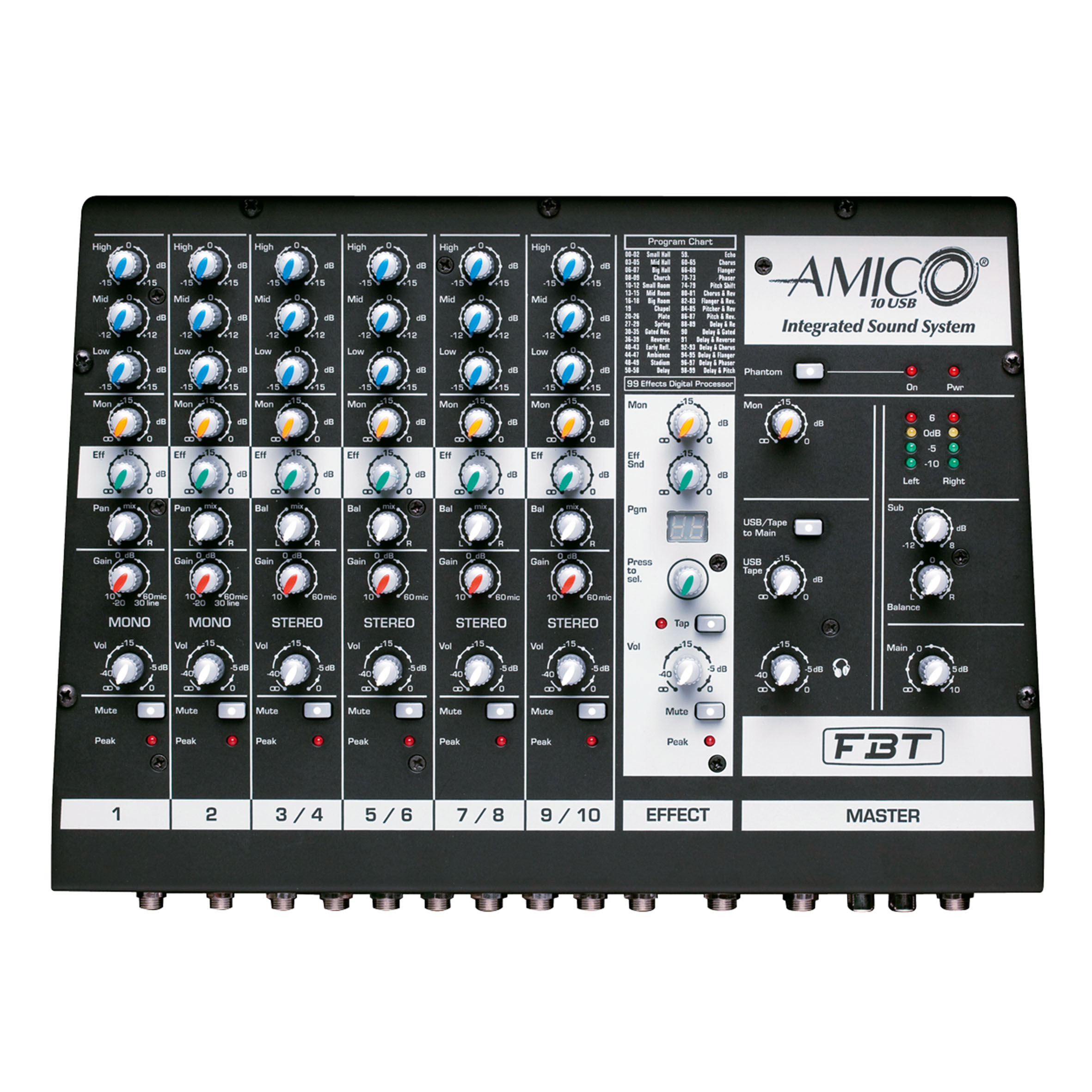

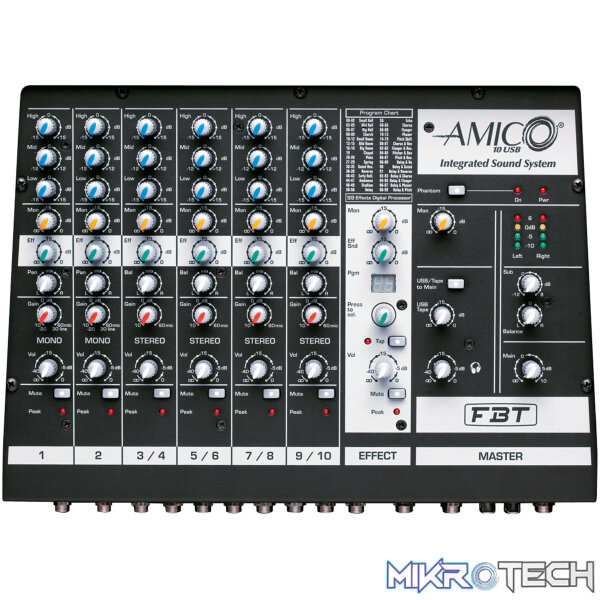

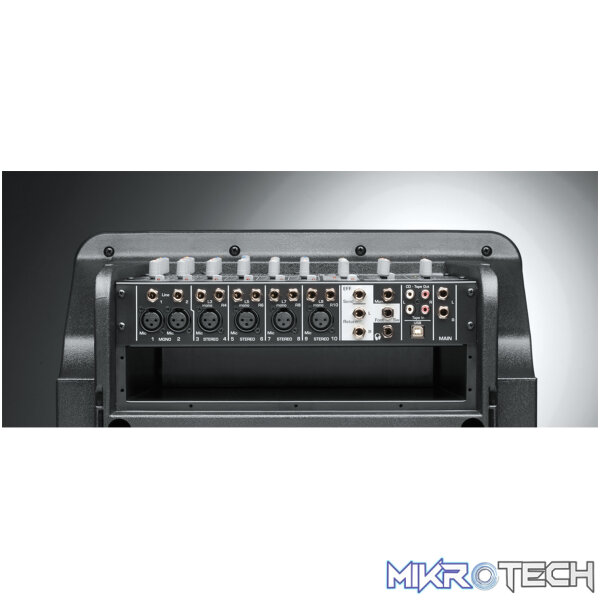

• 14 channel mixer with 99 presets digital multieffect and phantom power
• USB connection for music programs in play and record
• Subwoofer: 380mm (15”) high efficiency and high excursion custom woofer with a 75mm (3”) voice coil

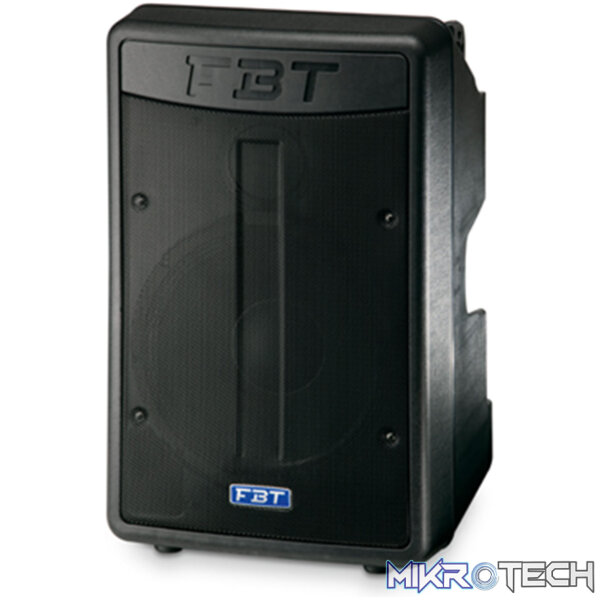

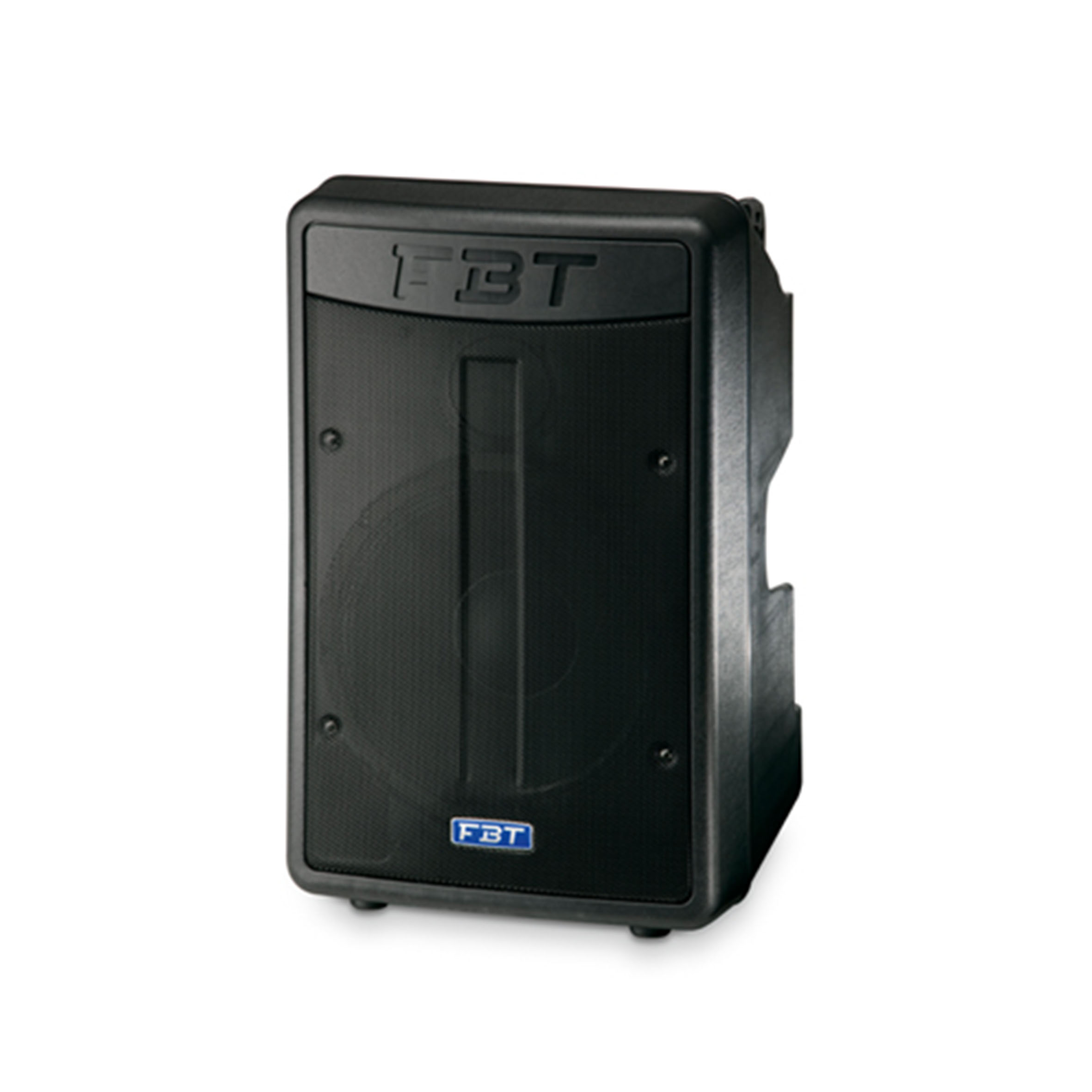

• 2 x Two way satellite speakers: featuring 165mm (6.5”) neodymium magnet woofers with 38mm (1.5”) voice coils, and a 25mm (1”) compression driver coupled to a 90°H x60°V constant directivity horn
• 500W rms Class D amplifier for subwoofer
• 2 x 150Wrms Class D amplifier for the satellite speakers
• Switch mode power supply

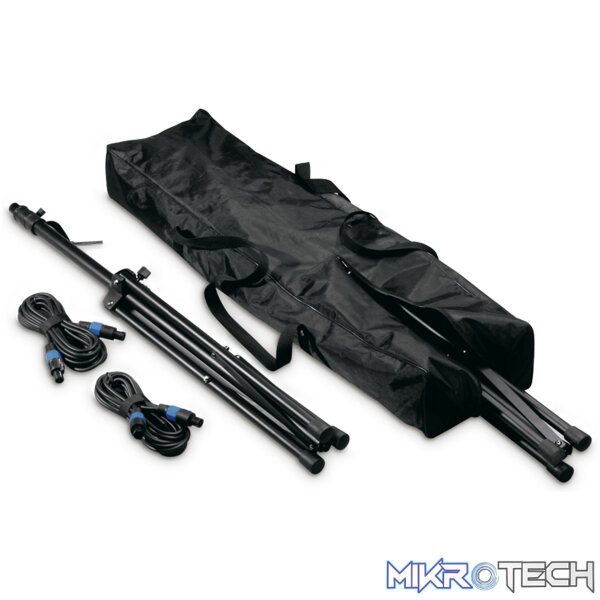

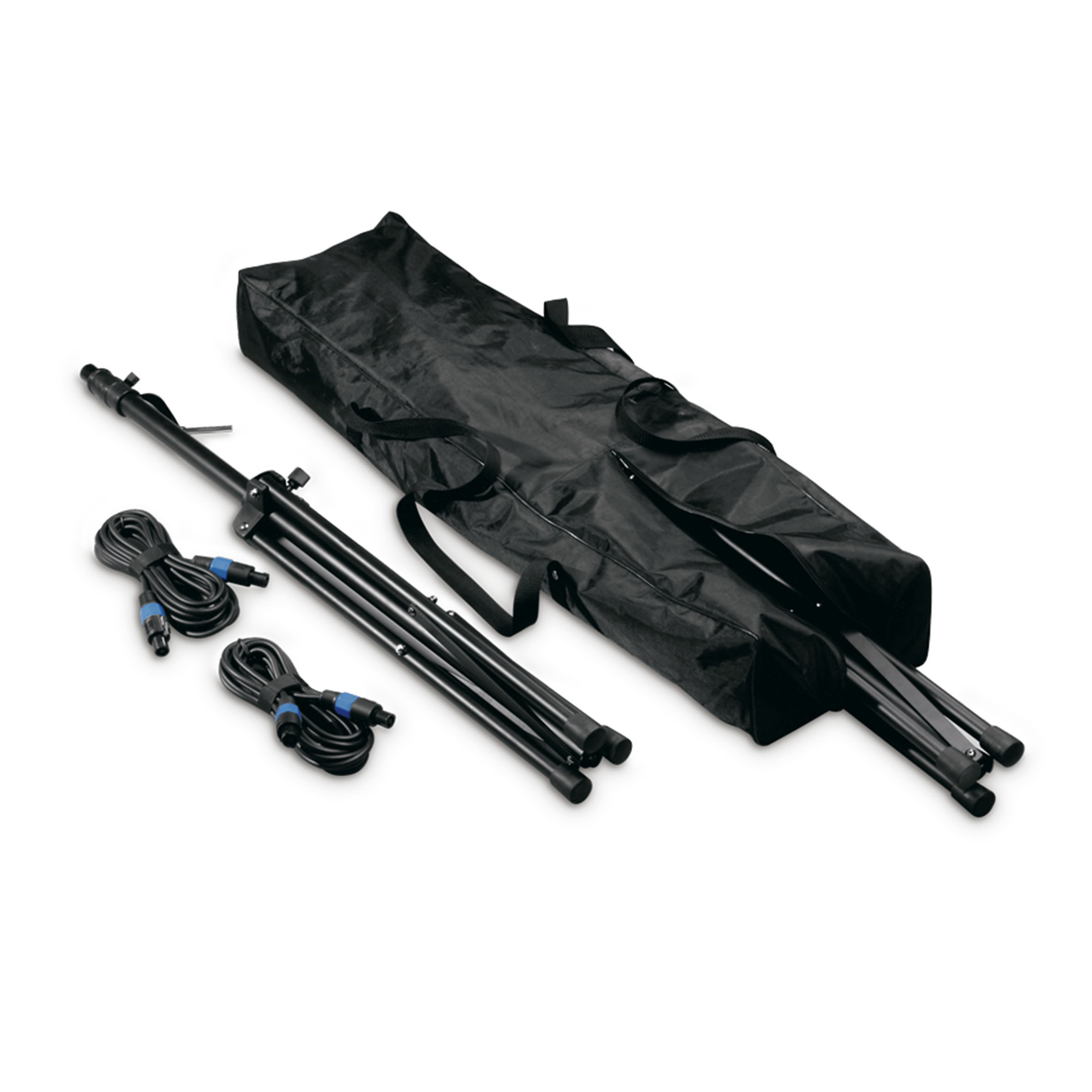

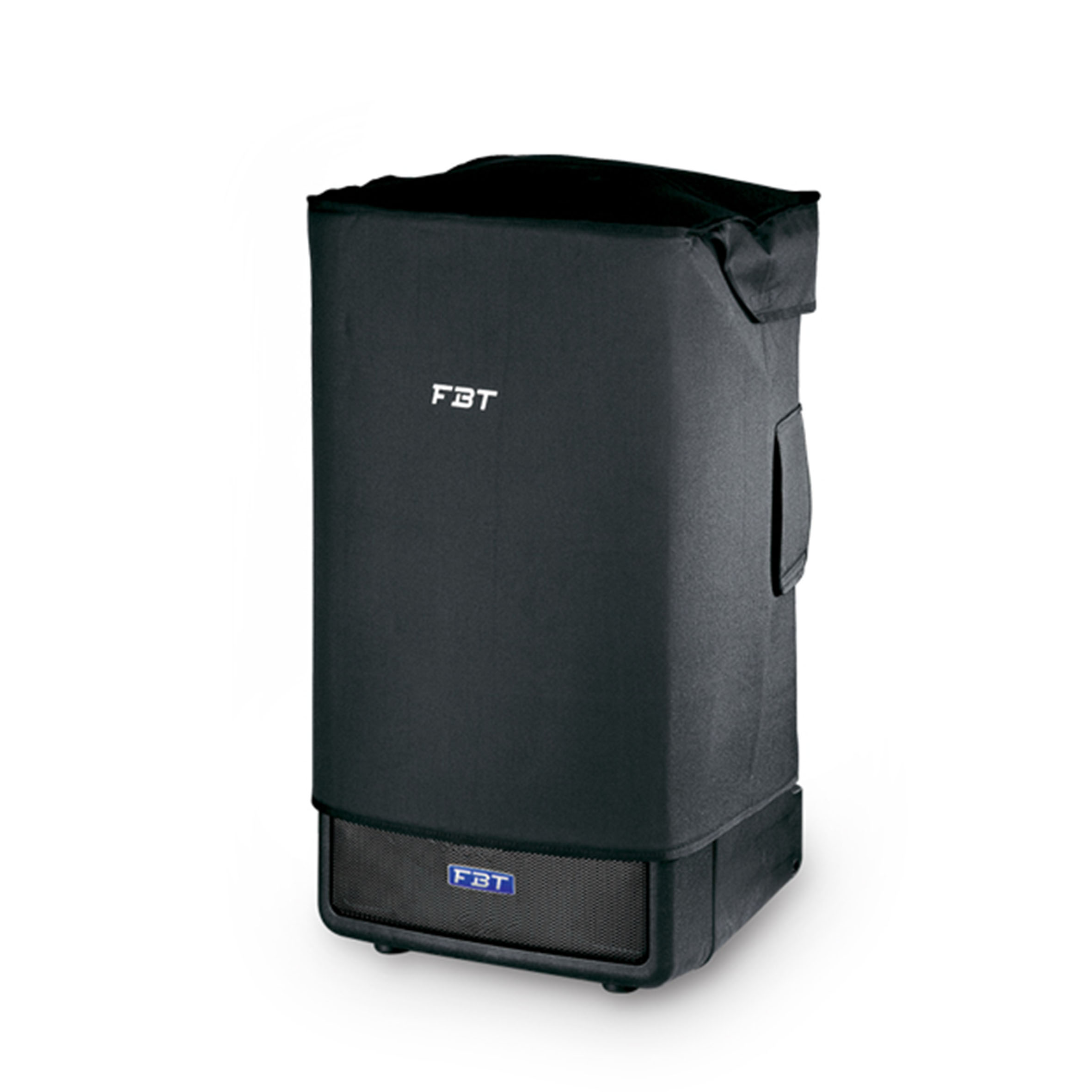

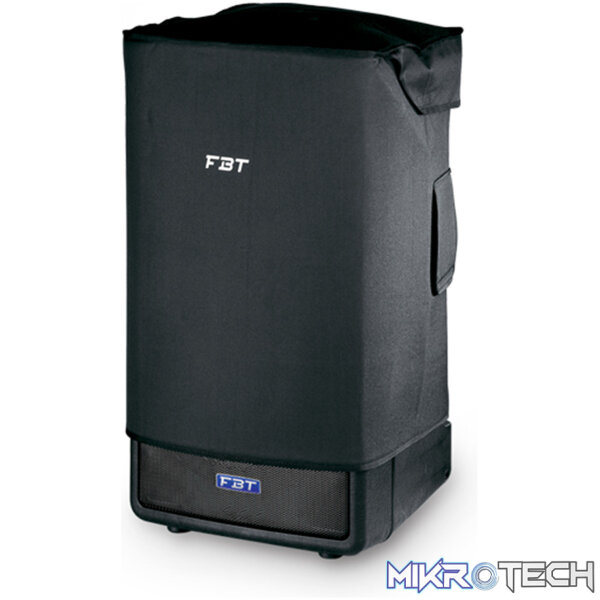

• AMICOKIT ACCESSORY KIT FOR AMICO10USB (BAG+CABLES+STANDS) (206.980FB)

SPECIFICATIONS:

• SUB Internal amplifier :
  500W+2x150W RMS
•
  SUB Frequency response:
  @-6dB 40Hz-120Hz
•
  SUB Sensitivity:
  (@1W, 1m) dB 97
•
  SUB Maximum:
  SPL (cont-peak) dB 124/130
•
  SUB Dispersion:
  O x V omnidirectional
•
  Sub woofer inch :
  1×15
•
  SUB SAT output connectors:
  2 x SPEAKON
•
  SAT Internal amplifier :
  150W RMS
•
  SAT Impedance:
  4 ohms
•
  SAT Frequency response:
  -6dB 90Hz-20kHz
•
  SAT Sensitivity:
  (@1W, 1m) dB 93.5
•
  SAT Maximum:
  SPL (cont-peak) dB 115/125
•
  SAT Dispersion:
  O x V 90° x 60°
•
  SAT Low frequency woofer:
  inch 1×6.5
•
  SAT High frequency:
  driver inch 1×1
•
  SAT Input connectors:
  1 x SPEAKON
•
  SAT Power supply:
  5m
