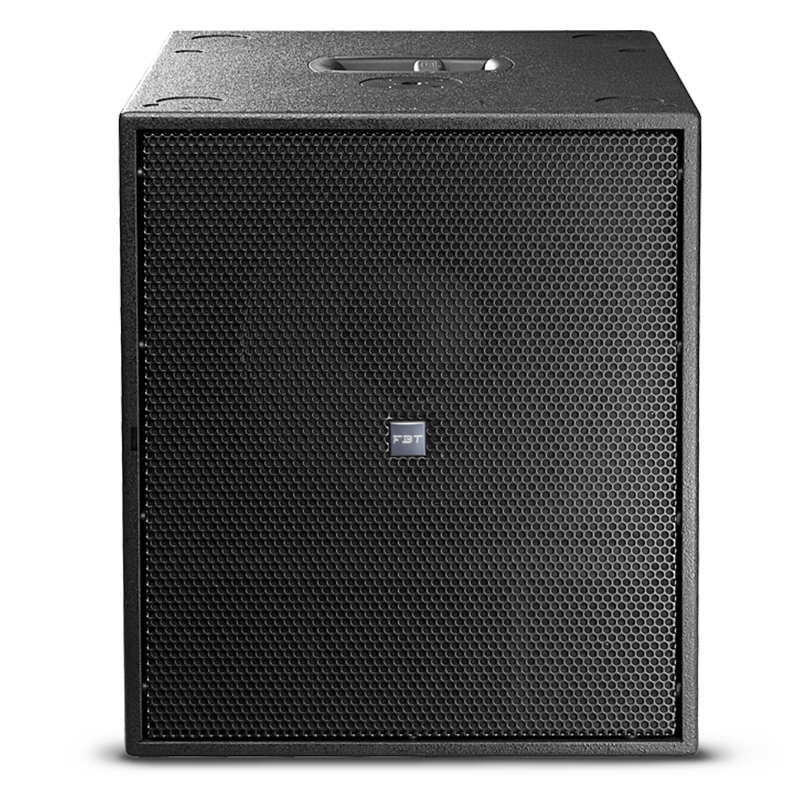

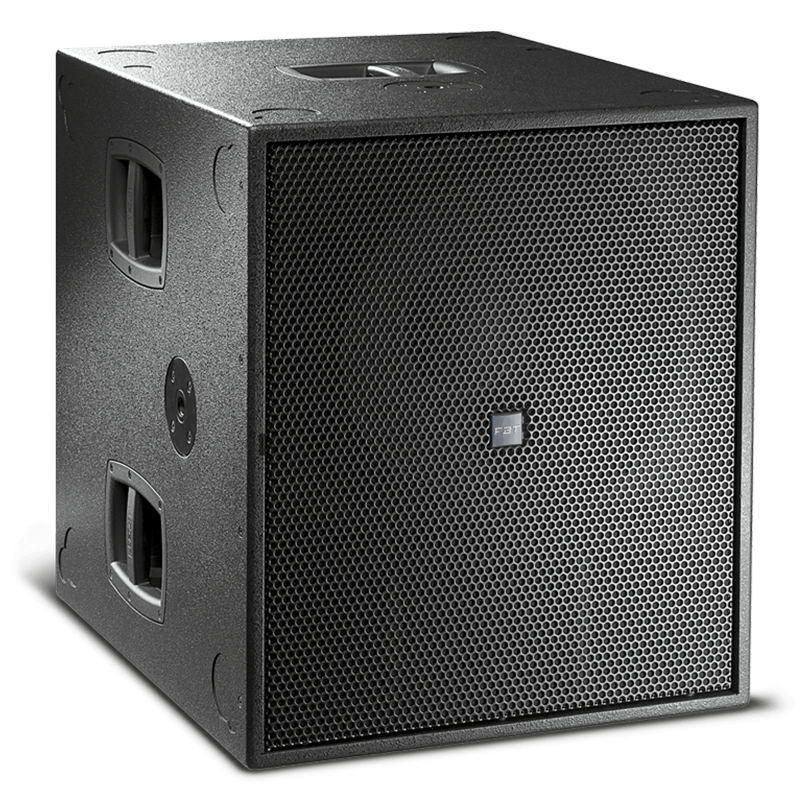

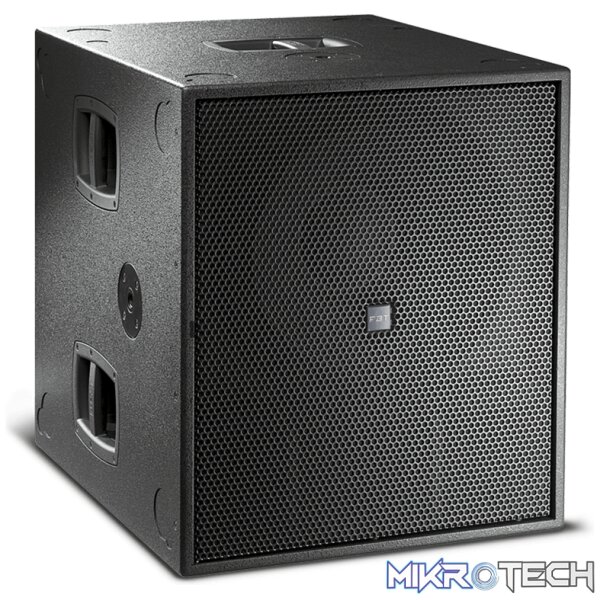

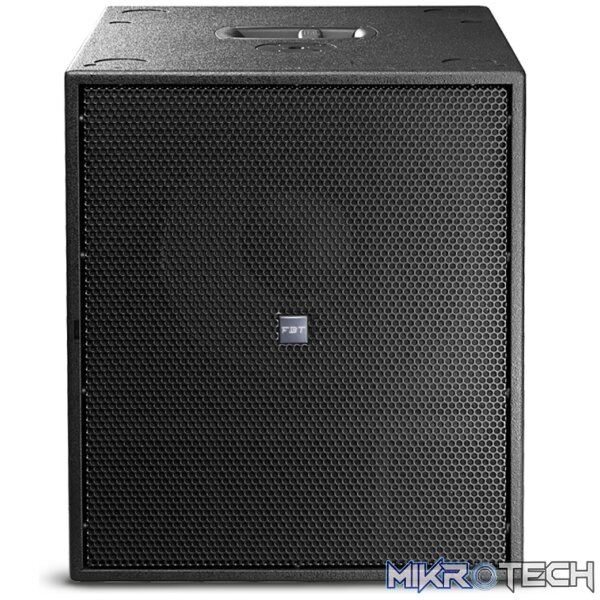

Fbt – Horizon Vha118.2Sa Active Subwoofer 18In 2500Wrms

For larger spaces, the ground-stacked VHA118.2SA is an exceptionally powerful and versatile subwoofer that sets a new standard for SPL to size ratio. Comprising a single 18” B&C woofer, the birch plywood, bass reflex sub again deploys a laminar air-flow for refined performance, while its 2,500W Class-D amplifier module offers a selection of six entirely rewritten preset algorithms.

FEATURES:

• Bass-reflex amplified subwoofer
• 460mm (18″) high excursion woofer B&C with 100mm (4″) coil
• Frequency response from 30Hz to 100Hz
• 2500Wrms class D amplifier with switching power supply
• DSP processor with 6 presets, 6-step delay

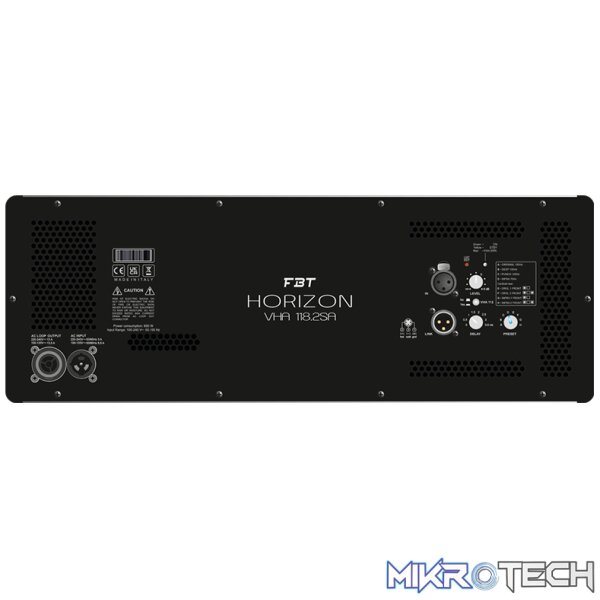

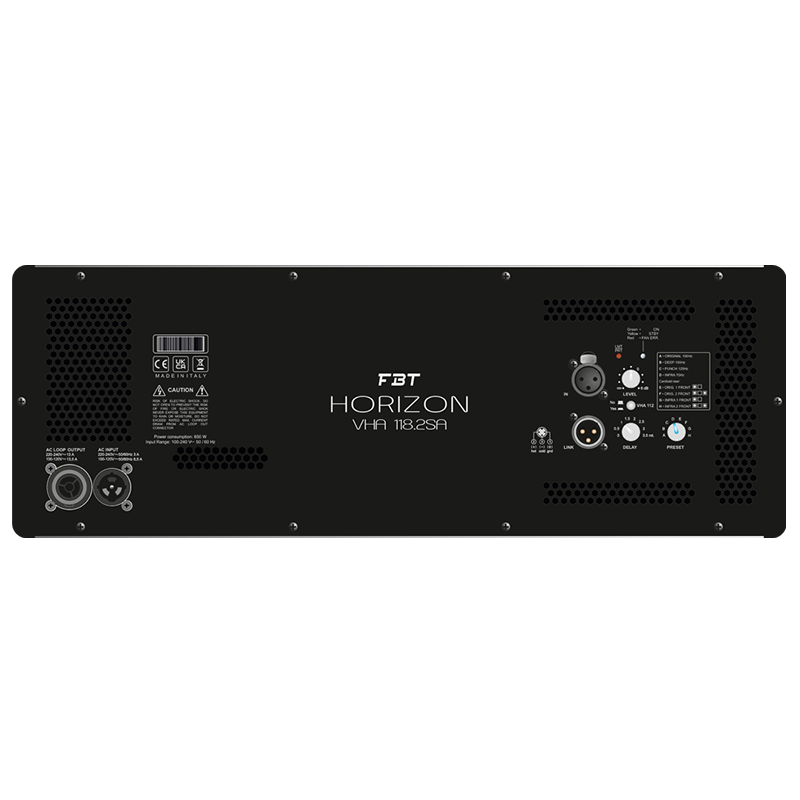

• Control panel with XLR input and stereo link, volume, presets, delay, phase 0°-180°, status led
• Neutrik PowerCON TRUE1 IN and LINK power connectors
• Box in 18mm (0.7”) birch plywood with anti-scratch varnish
• Two M20 stand sockets and 4 FBT aluminum handles, predisposed for 4 x 100mm (4”) swivel casters

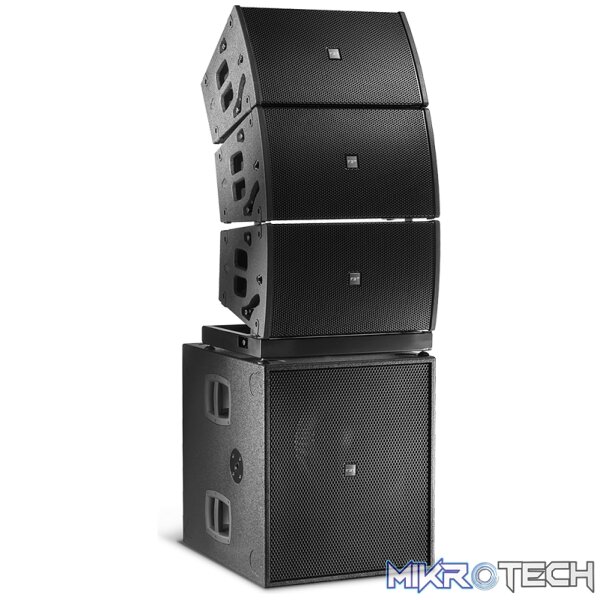

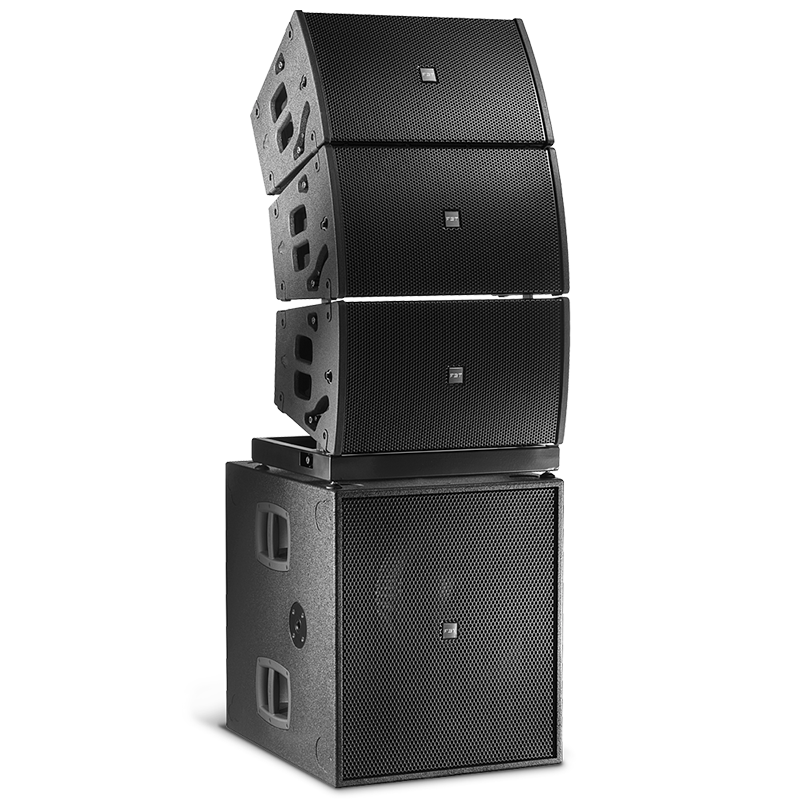

• Integrated mechanics compatible with VHA406A and VHA112SA for ground stack configurations
• Extremely robust grid with protective fabric
• Ideal for reinforcing and extending the low range of the VHA system, it can only be used with VHA406A or as an infra if present also the VHA 112SA

SPECIFICATIONS:

• CONFIGURATION:
  1 REFLEX way
•
  BUILT-IN AMPLIFIER LF/HF:
  2500 W RMS
•
  BUILT-IN AMPLIFIER PEAK LF/HF:
  5000 W
•
  FREQUENCY RESPONSE:
  30Hz-100Hz -6dB
•
  LOW FREQUENCY WOOFER:
  1×18 – 4 coil inch
  MAXIMUM SPL CONT/PEAK
•
  DISPERSION:
  omnidirectional HxV
•
  INPUT IMPEDANCE:
  22 Kohm
•
  CROSSOVER FREQUENCY:
  preset dependant KHz
•
  AC POWER REQUIREMENTS:
  1840 VA
•
  INPUT CONNECTOR:
  XLR with loop
•
  POWER CORD:
  5m
•
  NET DIMENSION (WXHXD):
  606x700x720mm
•
  NET WEIGHT:
  61.5kg
•
  TRANSPORT DIMENSION (WXHXD):
  700x865x800mm
•
  TRANSPORT WEIGHT:
  72.5kg
