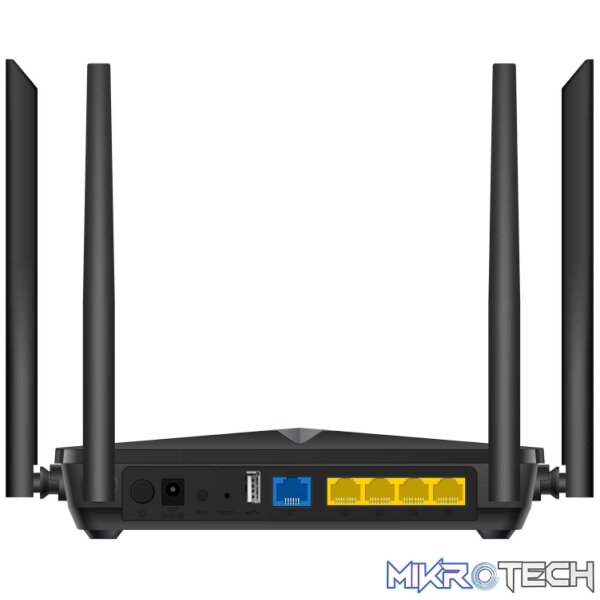

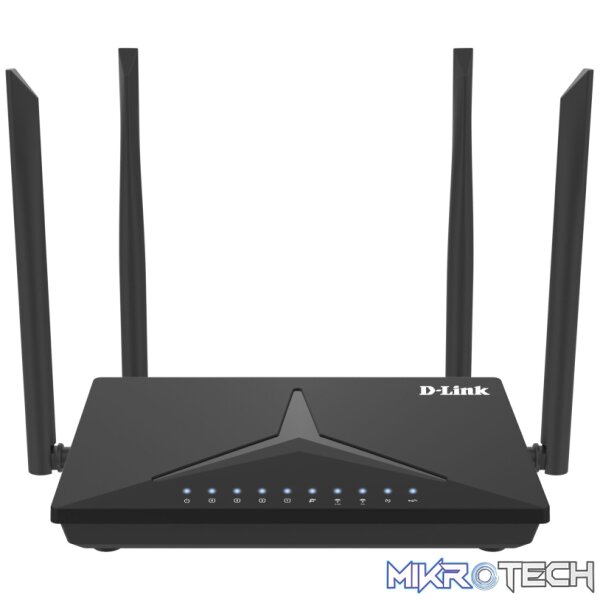

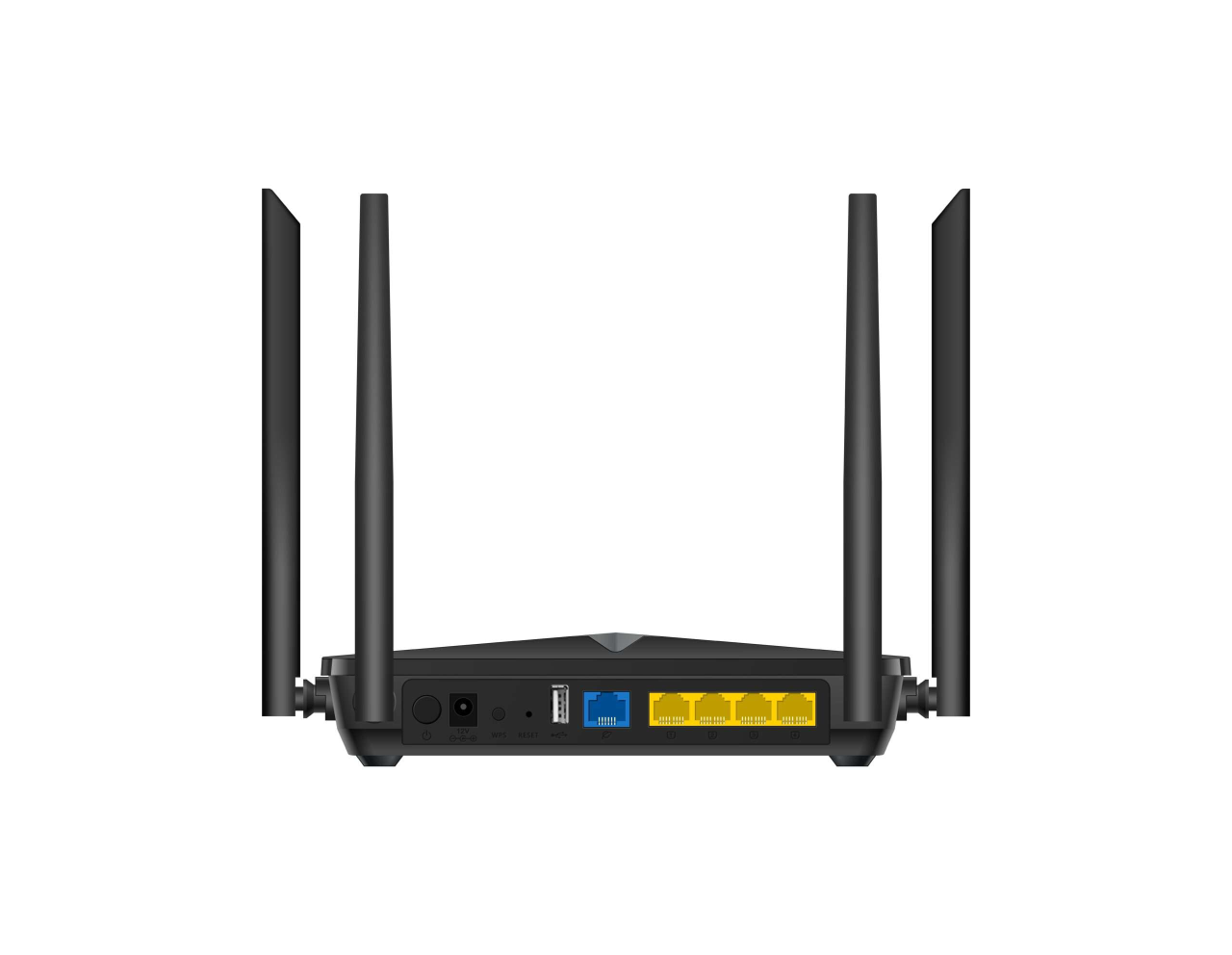

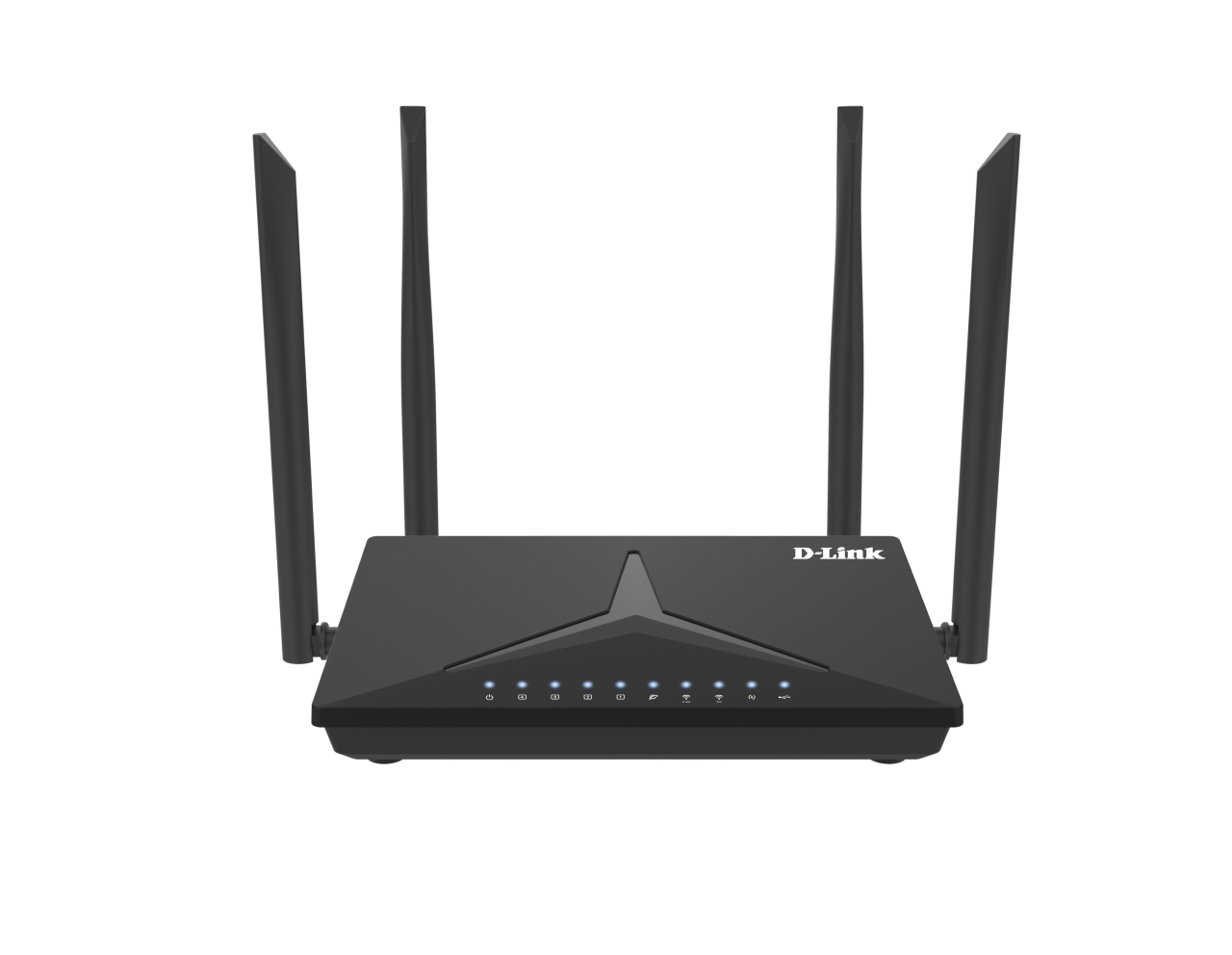

D-Link Wireless AC1200 Dual-Band Gigabit Router

The DIR-825M AC1200 Wi-Fi Gigabit Router is a powerful wireless networking solution designed for Small Office/Home Office (SOHO) environments. By combining high-speed 802.11ac Wi-Fi with dual-band technology and Gigabit Ethernet ports, the DIR-825M provides a seamless networking experience with a high degree of convenience and flexibility for SOHOs. The DIR-825M’s SOHO-class advanced security features keep data safe from unwanted network intruders. This together with the increased range and reliability of Wireless AC technology, helps provide a safe and secure network for devices further into your home or office.

Features

• 1x 10/100/1000 WAN Ethernet
• 4x 10/100/1000 LAN Ethernet
• Concurrent dual-band wireless for connections up to 1200 Mbps
• 1x USB 2.0 for file sharing
• Easy Mesh capability
• QoS engine to prioritize important traffic and deliver uninterrupted bandwidth

Specifications

• Hardware
  • Device Interface
    • 1x 10/100/1000 WAN Ethernet
    • 4x 10/100/1000 LAN Ethernet
    • 1x USB 2.0
  • LEDs
    • Power
    • Internet
    • 4 LAN LEDs
    • USB
    • 2.4G WLAN
    • 5G WLAN
    • WPS
  • Buttons
    • POWER button to power on/power off
    • WPS button to set up wireless connection
    • RESET button to restore factory default settings
  • Antenna
    • 2x external 2.4G fixed antenna
    • 2x external 5G fixed antenna
  • Power connector: Power input connector (DC)
  • CPU frequency: Single core 1GHz
• Software
  • WAN connection types
    • PPPoE
    • IPv6 PPPoE
    • PPPoE Dual Stack
    • Static IPv4 / Dynamic IPv4
    • Static IPv6 / Dynamic IPv6
    • PPPoE + Static IP (PPPoE Dual Access)
    • PPPoE + Dynamic IP (PPPoE Dual Access)
    • PPTP/L2TP + Static IP
    • PPTP/L2TP + Dynamic IP
  • Network functions
    • DHCP server/client
    • Dynamic DNS
    • IGMP proxy and MLD for IPTV
    • Static routing
  • Firewall functions
    • Network Address Translation (NAT)
    • Stateful Packet Inspection (SPI)
    • URL filter
    • MAC filter
    • IP filtering
    • Port filtering
    • DMZ and Port forwarding(Virtual server)
    • NAPT and ALG
    • Denial of Service (DoS) protection
  • VPN
    • IPsec/PPTP/L2TP
    • OPENSWAN VPN
  • Management
    • Firmware update via web-based interface
    • Saving/restoring configuration to/from file
    • Access settings through WEB GUI
    • Automatic SNTP Date/time from Internet Time Server
    • TR-069 remote management
    • Logs and statistics
