Overview:

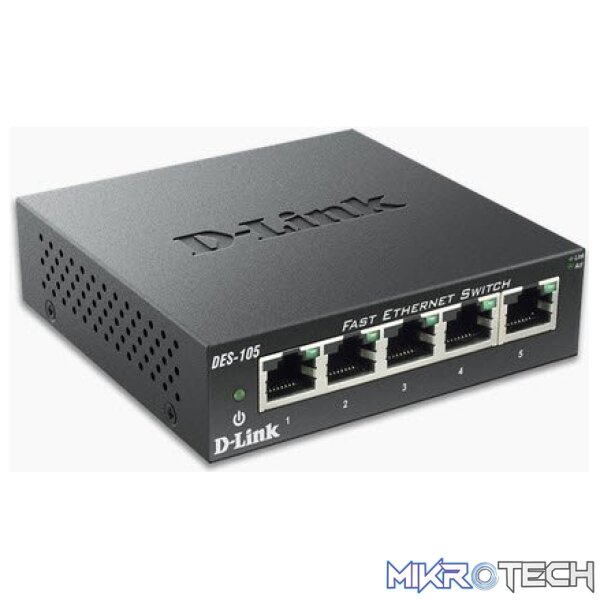

The DES-105 5 Port 10/100 Unmanaged Metal Desktop Switch provides a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of up to 200 Mbps the DES-105 is ideal for fast file transfers. It provides five ports for easy expansion of your network for connecting printers, scanners, storage, and backup devices to any network.
Features:
Effortless High Speed Networking
Features easy access auto sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-105 switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.
Think Green
The DES-105 is a plug-and-play networking switch that offers D-LinkÂ’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power.
IEEE 802.1p QoS
QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
Environmentally Friendly
The DES-105 switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. It is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an Energy Star Level V qualified power adapter all with recyclable packaging making this product truly environmental friendly.
| Switching Fabric | 1.0 Gbps |
|---|---|
| Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Protocol | CSMA/CD |
| Data Transfer Rates | Ethernet: 10 Mbps (half duplex) 20 Mbps (half duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (half duplex) |
| Network Cables | 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
| LED Indicators | Per port: Link/Activity Per device: Power |
| Transmission Method | Store-and-forward |
| MAC Address Table | 2K |
| MAC Address Learning | Automatic update |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port |
| RAM Buffer | 384 KBytes per device |
| Jumbo Frames | 2048 Bytes |
| QoS | 4 Queues, strict mode |
| DC Input | External 5 V/0.55A Level “V” Power Adapter |
| Power Consumption | Power On (Standby): DC input: 0.15 watts AC input: 0.25 watts Maximum: DC input: 0.85 watts AC input: 2.17 watts |
| Heat Dissipation | Power On (Standby) AC input: 0.853 BTU/h Maximum DC input: 2.9002 BTU/h |
| MTBF | 1,398,635 hours |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| Dimensions | 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) |
| Weight | 0.57 lbs (265 grams) |
| Certifications | FCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL CB |
| Brand | D-Link |
