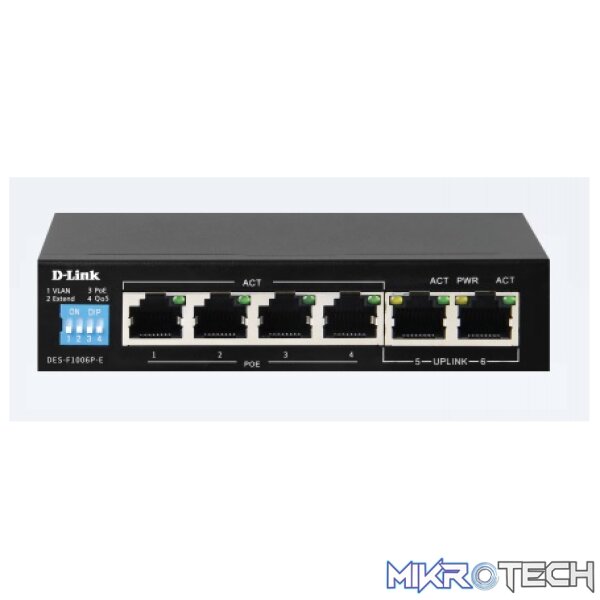

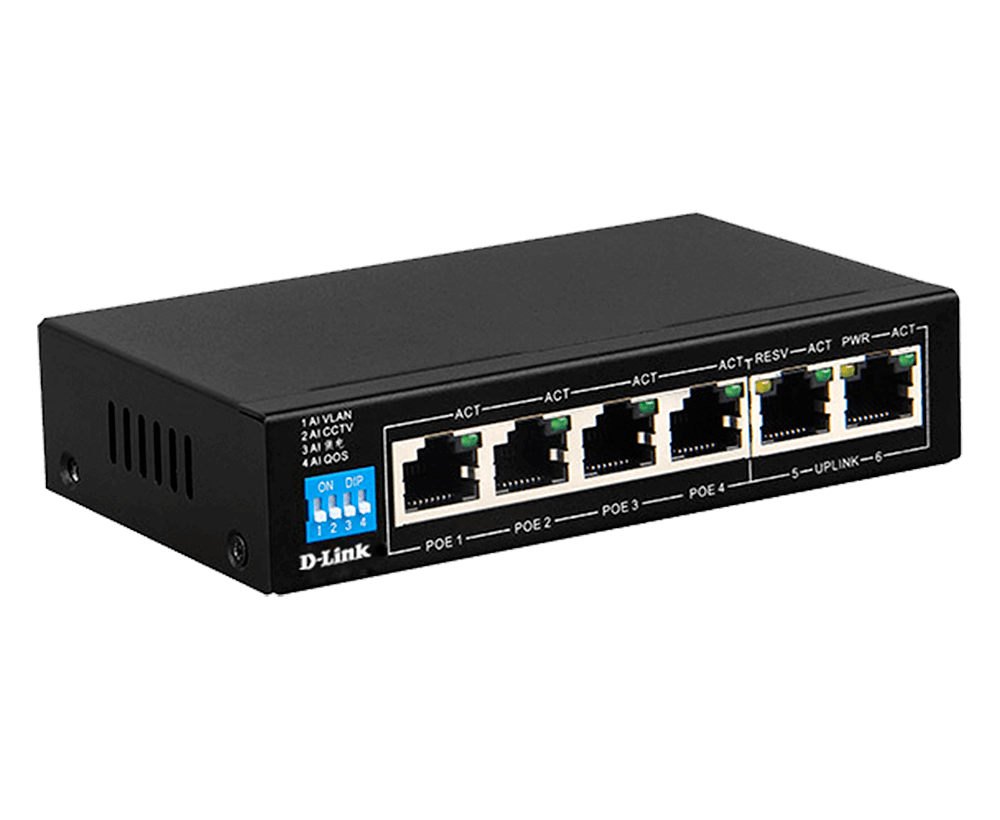

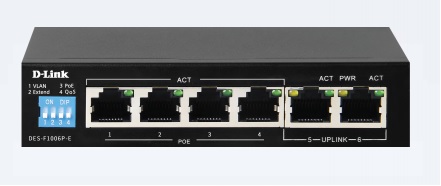

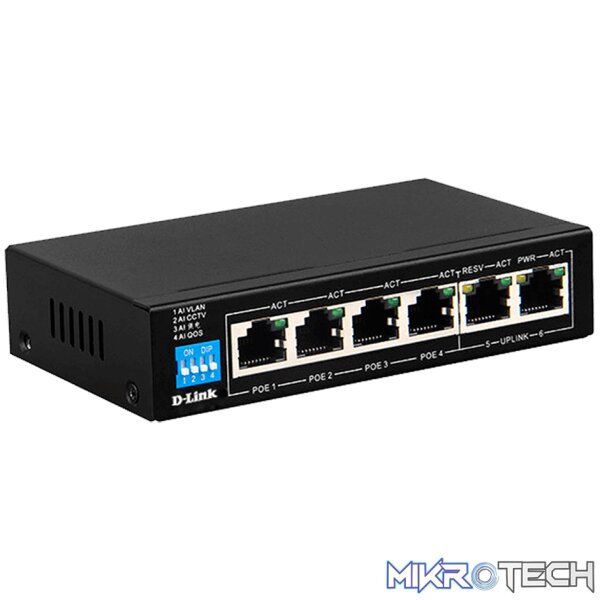

D-Link 6-Port Gigabit Ethernet Long Range PoE Switch (4x PoE + 2x Uplink)

The D-Link DGS-F1006P-E 6-Port 10/100/1000 Switch with 4 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGSF1006P-E is compact and operates silently, making it ideal for most rooms and offices.

Features

• 6x 10/100/1000 Mbps Ethernet ports
• 2x Uplink ports
• 4x PoE ports
• IEEE 802.3af/at Power Over Ethernet (PoE) enables installation in hard to reach locations
• 60 W total power budget
• Up to 30 W power output per PoE port

Specifications

• Interfaces
  • 4 10/100/1000 BASE-T ports
  • 2 10/100/1000 BASE-T Uplink ports
• Standards
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x ow control
• Media Interface Exchange: Auto MDI/MDI-X adjustment on all ports
• Performance
  • Switching Fabric: 12 Gbps
  • Transmission Method: Adopt Store-and-forward
  • Data Transfer Rates
    • Fast Ethernet: 100 Mbps
    • Gigabit Ethernet: 1000 Mbps
  • Packet Filtering / Forwarding Rates
    • 10M port: maximum 14800pps
    • 100M port: maximum 148800pps
    • 1000M port: maximum 1488000pps
• PoE
  • PoE Standards
    • IEEE 802.3af
    • IEEE 802.3at
  • PoE-Capable Ports: Ports 1 to 4
  • Power Budget: 60 W (30 W max. per PoE port)
