Product Description
Overview:

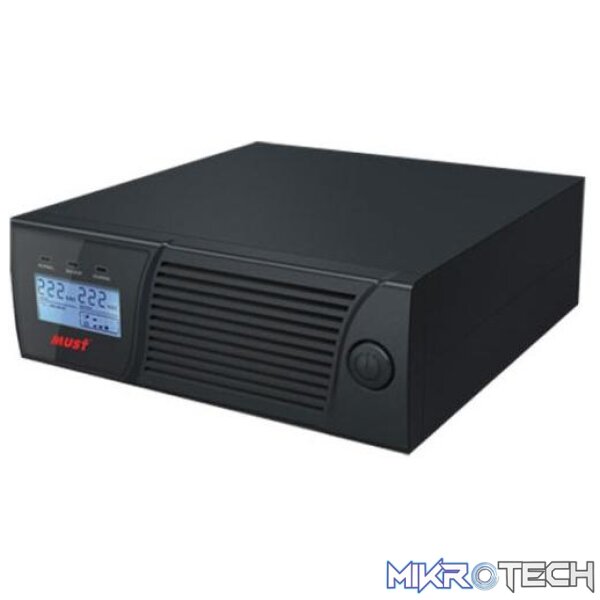

New Crystal Modified Sine Wave Inverter – 720W/1200VA, 12V
- Charge current: 10A/20A adjustable
- Double layers PCB board
- Compact size for convenient use
- Three-steps intelligent charge controller
- Battery Reverse Protection function (optional)
- Home use, for DVD, TV, lights, and fans
- Battery cable: 10AWG 60cm
Product Specifications
| Weight | 2.60 kg |
|---|---|
| Dimensions | 34.000000 × 13.000000 × 29.000000 cm |
| MODEL | EP11-1200 |
| Rated Power | 1200VA/720W 18 |
| Waveform | Modifided Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | -55,55555556 |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency(Peak) | 80% |
| Line Mode Efficiency | 95% |
| Power Factor | 0,6 |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| Voltage | 230VAC |
| Narrow | 170~280VAC |
| Selectable Voltage Range Wide | 90~280VAC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Nominal Input Voltage | 12VDC |
| Minimum Start Voltage | 10.5VDC |
| Low Battery Alarm | 10.5VDC+/-0.3V |
| Low Battery Cutoff | 10.0VDC+/-0.3V |
| High Voltage Alarm | 16.0VDC+/-0.3V |
| High Battery Voltage Recover | 15.0VDC+/-0.3V |
| Charger Voltage (Vbat12.5V) | 13.7VDC+/-0.2V |
| Charging Current 10A | 10A±2A |
| Charging Current 20A | 20A±2A |
| Overcharge Protection S.D. | 16VDC ±0.4A |
| Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Fuse Rating | 10A |
| Max Bypass Current | 10Amp |
| Dimensions (W*H*D) | 253*267*90mm |
| Net Weight (kg) | 2,3 |
| Shipping Dimensions(W*H*D) | 319*328*123mm |
| Shipping Weight (kg) | 2,9 |
| Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
