Overview:
EAP235-Wall – Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
- Interface: 4 Gigabit Ethernet ports (1uplink + 3downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2×2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
Features:

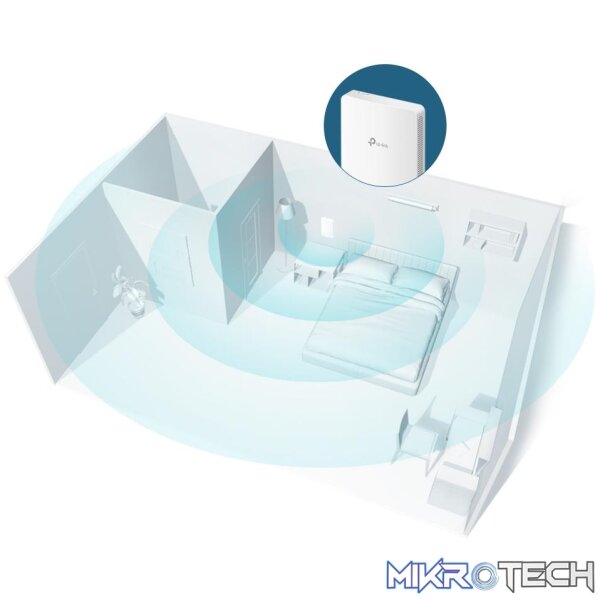

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network thats fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
- 5 GHz 867 Mbps
- 2.4 GHz 300 Mbps

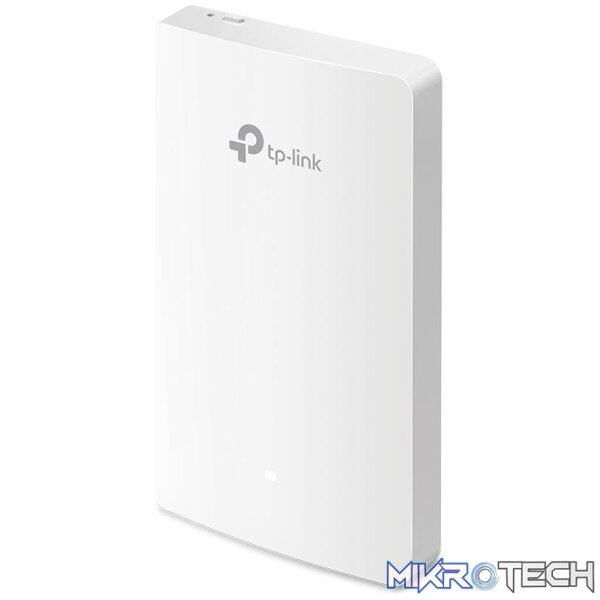

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available-only 15 mm-featuring a sleek, minimalist appearance. Designed to blend in with the decor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported theres no need to install additional wiring in the building. Simply plug in existing Ethernet cables and youre ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Fits three kinds of wall junctions
- 86 mm wall junction box
- Standard EU wall junction box
- Standard US wall junction box

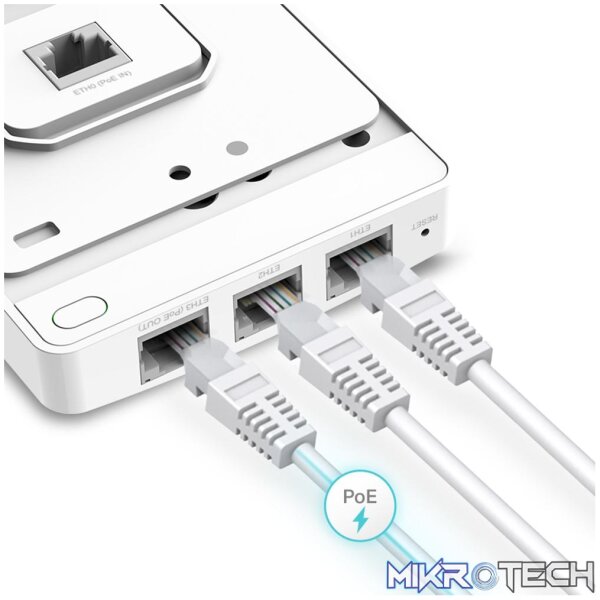

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1uplink + 3downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
| Weight | 0.32 kg |
|---|---|
| Dimensions | 19.000000 × 12.000000 × 4.000000 cm |
| Interface | Uplink: 10/100/1000 Mbps Ethernet Port*1 Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions | 143 x 86 x 20mm (5.6 x 3.4 x 0.8 in) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2*4dBi 5GHz: 2*4dBi |
| Mounting | Wall Plate Mounting |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDs(Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Band Steering Beamforming Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
| Transmission Power | CE: ?20 dBm (2.4 GHz, EIRP) ?23 dBm (5 GHz, EIRP) FCC: ?21 dBm (2.4 GHz) ?21 dBm (5 GHz) |
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Certification | CE, FCC, RoHS |
| Package Contents | Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall Installation Guide Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Brand | TP-Link |
