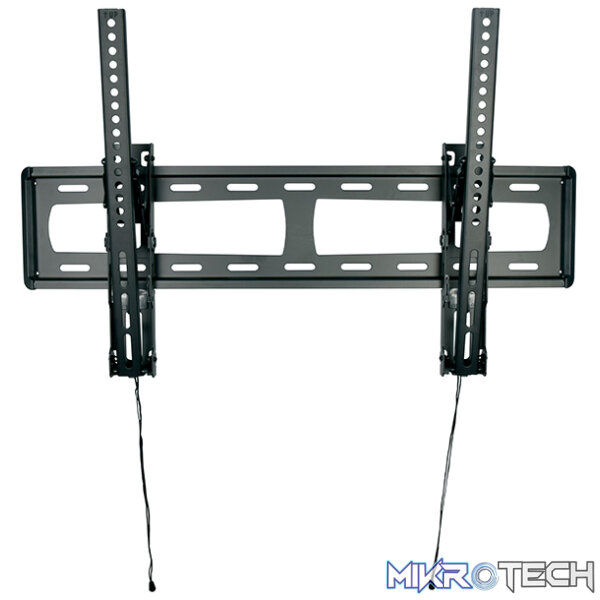

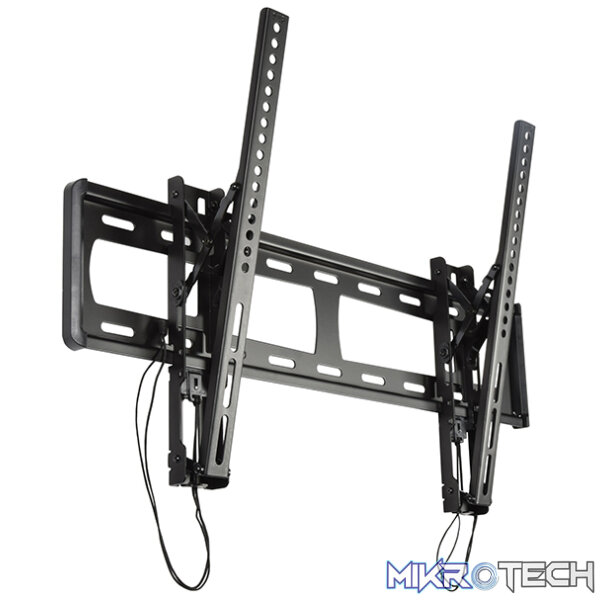

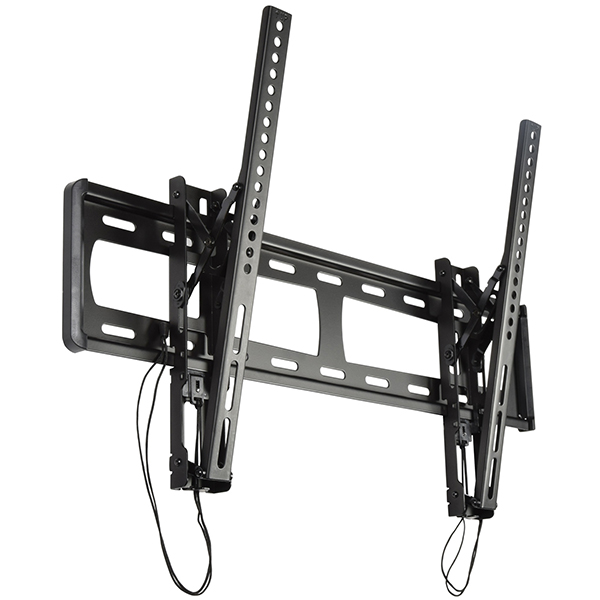

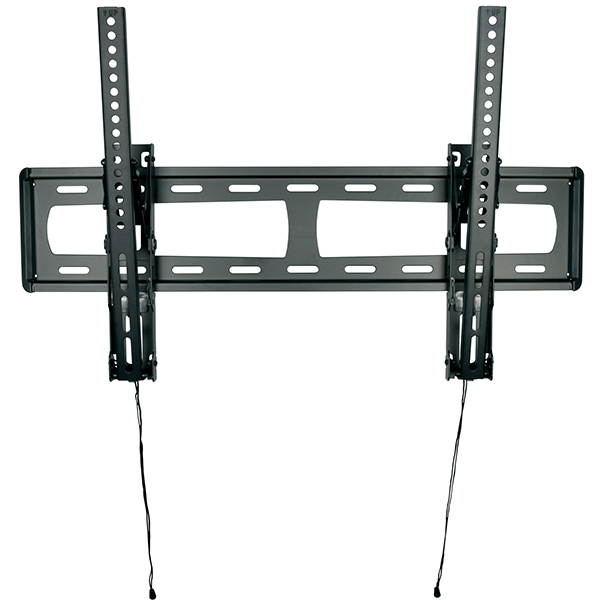

Avlink – Lpt800 Tv Wall Mount Bracket Tilt

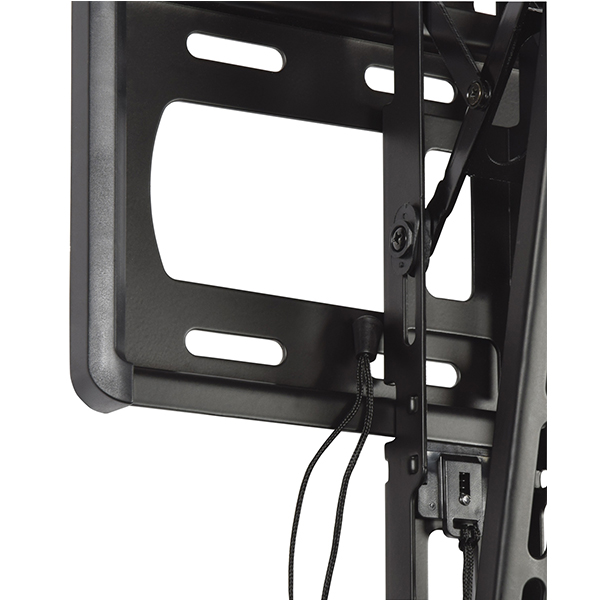

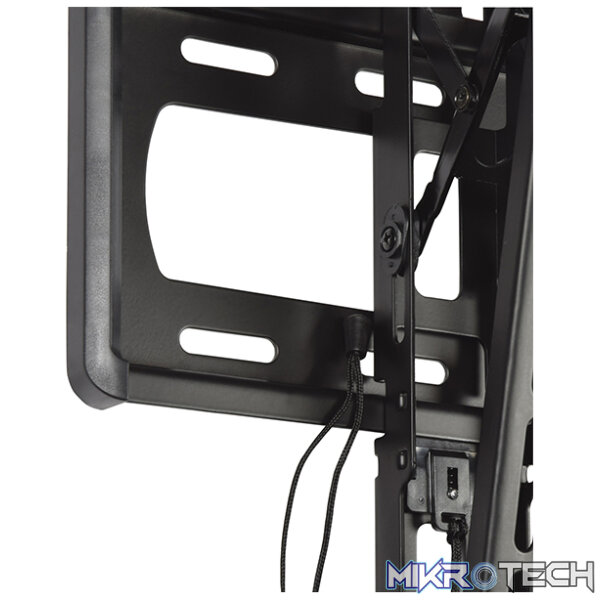

A professional quality, easy to assemble tilting wall mounting for the latest VESA 800 TVs up to 90? in screen size. Designed for hassle free mounting and removal of the TV when required, the self-locking mechanism can be opened by simply pulling on 2 drawstrings that hang either side of the unit. The smooth, accurate tilting mechanism provides an additional 12° tilt angle should your mounting position require it.

FEATURES:

• Suitable for most 47″ to 90″ TV’s
• Low profile design sits only 26mm from the mounting surface
• Maximum weight load 60kg
• Maximum 800×600 VESA compatible
• Up to 12° tilt angle adjustment if required
• Wide range of fixings supplied

SPECIFICATIONS:

• Max. VESA:
  800×600
•
  Max. weight load:
  60kg
•
  Screen size:
  47″ to 90″
•
  Distance from wal:
  l26mm
•
  Tilt angle adjustment:
  0° to 12°
•
  Dimensions:
  912 x 630mm (H x W)
•
  Weight:
  5kg
