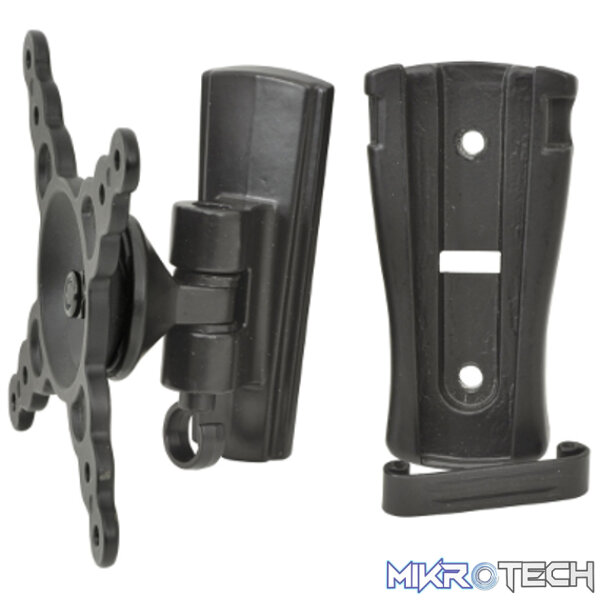

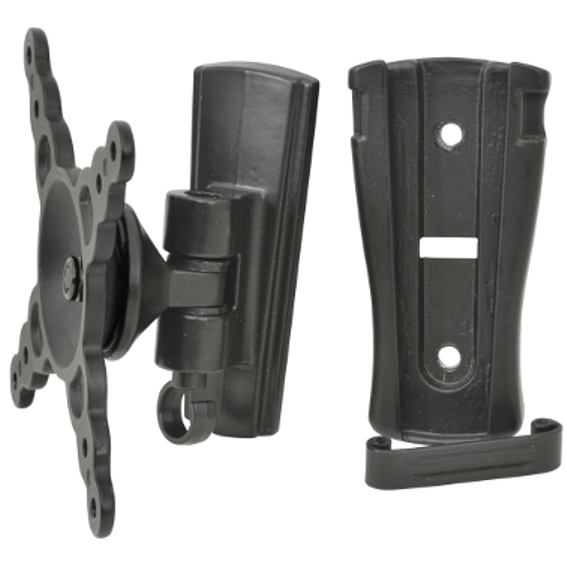

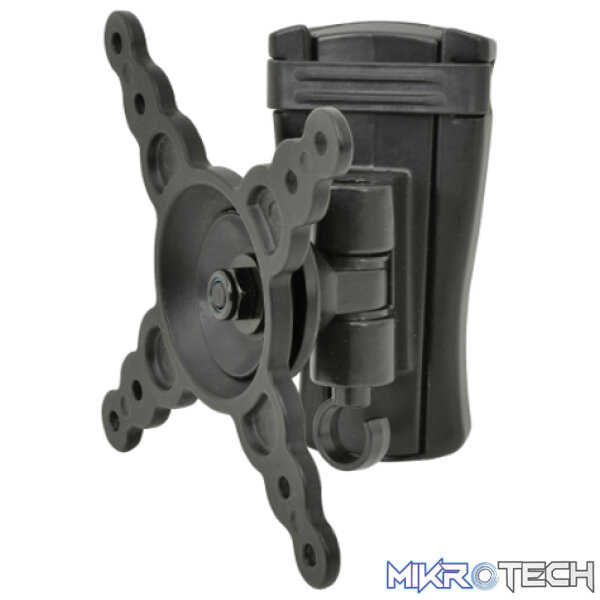

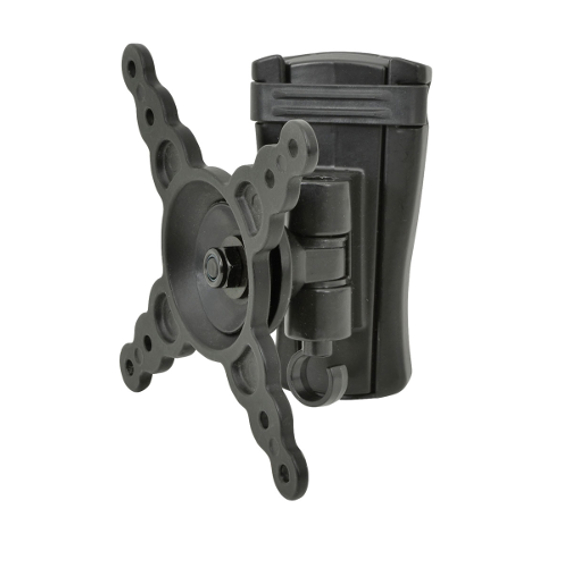

Avlink – Hqs201 Full Motion Tv Wall Mount Bracket

A compact, adjustable steel wall bracket suitable for mounting screens from 13? up to 40?.

FEATURES:

• Suitable for mounting LCD or LED screens sized 13″ to 40″
• VESA 75 and 100 hole patterns
• -5° to 15° tilt mechanism
• Swivels 180° from wall connection point
• Integrated spirit level and cable retainer
• Installation hardware included
• Built-in lock for safety and stability

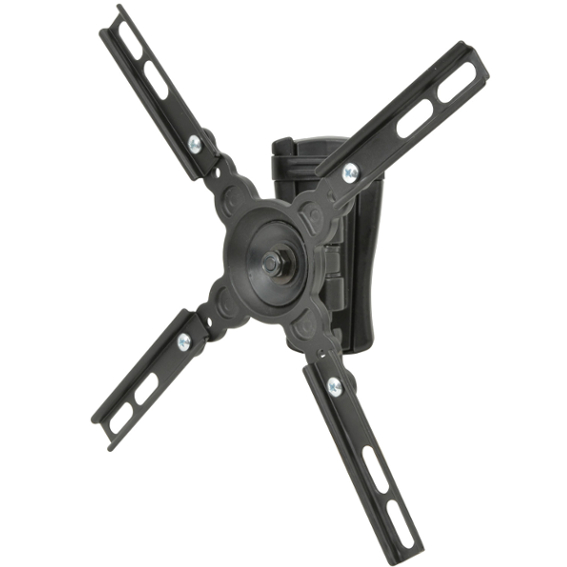

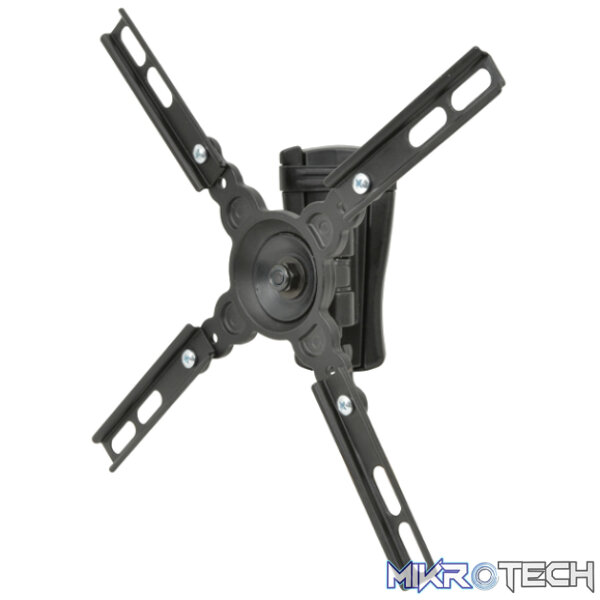

• VESA 200 hole pattern adaptors included

SPECIFICATIONS:

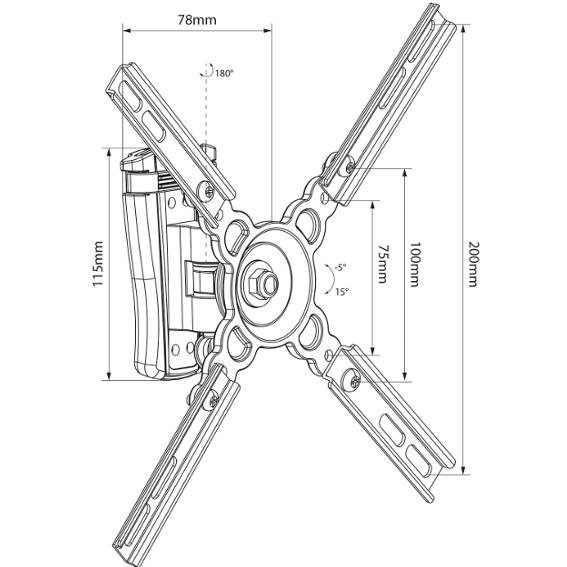

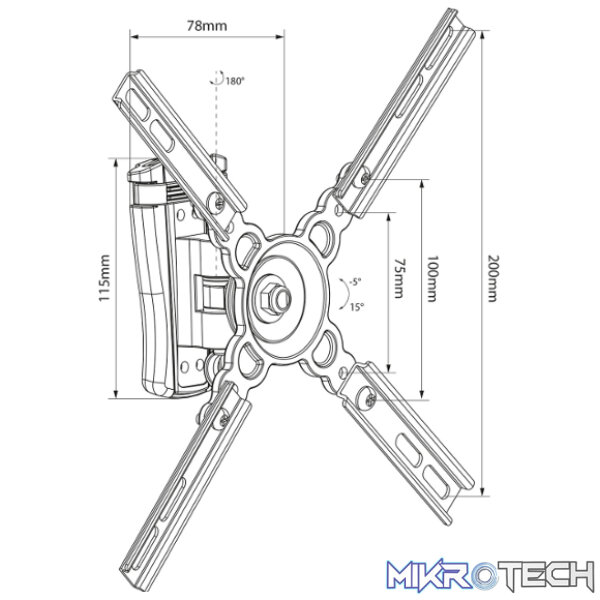

• Max. hole spacing:
  200 x 200mm (with adaptor)
• Distance from wall:
  78mm
• Max. weight load:
  15kg
• VESA:
  75 x 75, 100 x 100 and 200 x 200 with adaptor
• Wall plate dimensions:
  57 x 115mm
• Weight:
  640g
• TV fixing screws provided:
  4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm
