Overview:
ROG STRIX Z590-F GAMING WIFI
Intel Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2×2 USB Type-C, SATA and Aura Sync RGB lighting
- Ready for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks, and an M.2 backplate for the PCIe 4.0 M.2 slot
- High-performance Networking: On-board Intel WiFi 6E AX210 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, Clr CMOS button, and FlexKey
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Features:
ROG Strix Z590-F Gaming WiFi motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 11th Generation Intel Core Rocket Lake processors. Along with the latest Intel Wi-Fi 6E and PCI Express 4.0 M.2 for superfast transfer speeds and storage, Strix Z590-F Gaming WiFi features Two-Way AI Noise Cancelation to ensure clear communication in any scenario. Strix Z590-F Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.
ROG Strix Z590-F Gaming WiFi is armed with up-rated power delivery and optimized cooling to enable top-tier performance for gaming. Fully equipped with intelligent controls for easy management of overclocking, cooling and networking settings, Strix Z590-F Gaming WiFi also features Two-Way AI Noise Cancelation for crystal-clear in-game communication.
LEADING CONNECTIVITIY
ROG Strix Z590-F Gaming WiFi includes the latest connectivity for supersmooth online experiences and blisteringly fast large file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.
Optimem II
ROG Strix Z590-F Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.
PCIe 4.0-Ready
With four strategically placed M.2 slots, ROG Strix Z590-F takes full advantage of CPU and chipset bandwidth to usher in support for the latest PCIe Gen 4.0 SSDs, lightning-fast Intel NVM Express RAID, and high-capacity drives that blaze past traditional SATA-based storage.
PLAY IN STYLE
Pair ROG Strix Z590-F Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
Undeniably ROG Strix
ROG Strix Z590-F Gaming WiFi embodies the ROG spirit with its futuristic cyberpunk-inspired design elements and monochromatic color palette. The ROG logo on the I/O heatsink is illuminated by Aura RGB LEDs and can be synced with other Aura-compatible hardware to create an eye-catching, unified look.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|---|
| Chipset | Intel Z590 Chipset |
| Memory | DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0 * Graphics specifications may vary between CPU types. “** For Intel 11th Core i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz . *** For Intel 11th Core i5/ i7/ i9 processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support HDMI 1.4 with max. resolution of 4K@30Hz . **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Expansion Slots | 2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s) – Intel 11th support PCIe 4.0 x16 or x8/x4 mode(s) – Intel 10th processors support PCIe 3.0 x16 or x8/x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) * Support PCIe bandwidth bifurcation for RAID on CPU function. |
| Storage | Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th &10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280/22110 – Intel 11th processors support PCIe 4.0 x4 mode – Intel 10th processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. *When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. |
| Wireless & Bluetooth | 2×2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| USB | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C ) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Audio Features – SupremeFX Shielding Technology – ALC4080 + Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Audio cover |

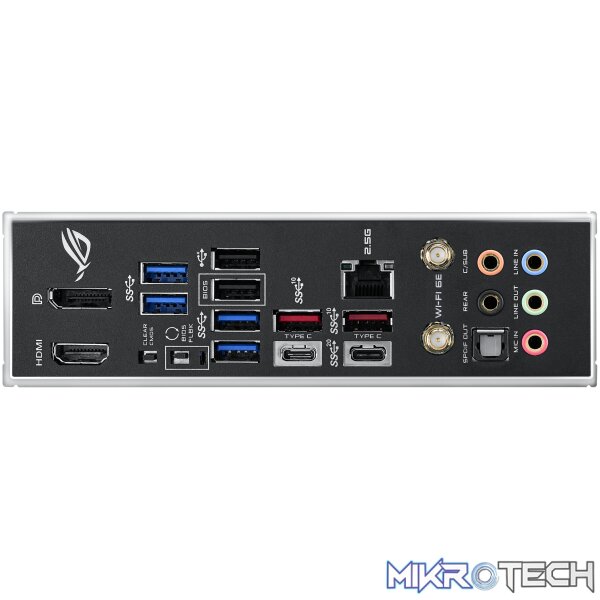

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C ) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Intel Wi-Fi 6E 1 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Intrernal I/O Connectors | 1 x Thunderbolt 4 header Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| Software Features | ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS Sound Unbound – Overwolf – Anti-virus software – AIDA64 Extreme (60 days free trial) ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app – EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Fan holder Miscellaneous 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX 30.5cm x 24.4cm |
