Product Description
Overview:

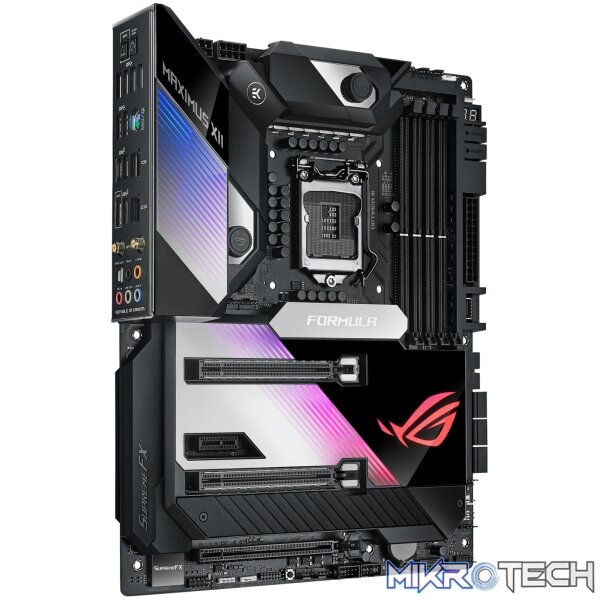

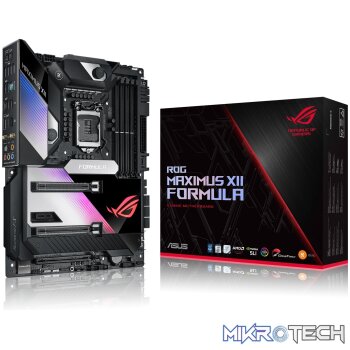

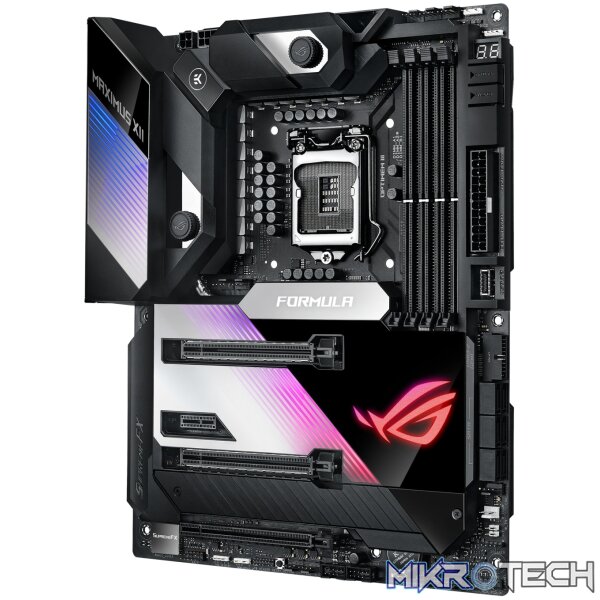

ROG MAXIMUS XII FORMULA
Intel Z490 ATX motherboard for 10th Gen Intel Processor with 16 power stages, EK CrossChill III, OptiMem III, triple M.2, on-board Wi-Fi 6 (AX201), 10 Gb Ethernet and 2.5 Gb Ethernet, USB 3.2 Gen 2, Aura Sync RGB lighting
- LGA 1200 socket for 10th-gen Intel Core desktop processors
- AI Feature: AI Overclocking, AI Cooling and AI Networking (GameFirst VI)
- Robust power delivery: Optimized power solution with 16 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors
- Cooling & Performance: OptiMem III, CrossChill EK III, 16 teamed power stages with extended heatsink, high conductive thermal pad, ROG water cooling zone, M.2 heatsink and backplate
- Connectivity: Intel Wi-Fi 6, 10 Gb Ethernet and Intel 2.5 Gb Ethernet, triple M.2 slots
- Customization: 2″ LiveDash OLED, 2X addressable header + 2X 4-pin RGB header
Product Specifications
| CPU | Intel Socket 1200for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Supports Intel 14nm CPU |
|---|---|
| Chipset | Intel Z490 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory OptiMem III * 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively Supports Intel Extreme Memory Profile (XMP) Dual Channel Memory Architecture |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
| Expansion Slots | 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 Intel 10th Gen Processors Intel Z490 Chipset |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Intel Z490 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Intel Rapid Storage Technology supports Support Raid 0, 1, 5, 10 Intel Optane Memory Ready 6 x SATA 6Gb/s port(s) |
| LAN | Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard |
| Wireless Data Network | Intel Wi-Fi 6 AX201 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports dual band frequency 2.4/5 GHz |
| Bluetooth | Bluetooth v5.1 *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio | – Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 – Premium Japanese audio capacitors – Audio Cover – SupremeFX Shielding Technology – Supports up to 32-Bit/192kHz playback – Gold-plated jacks – High quality120dBSNR stereo playback outputand113dBSNR recording input – Impedance sense for front and rear headphone outputs – Optical S/PDIF out port(s) at back panel Audio Feature : |
| USB Ports | 4 x USB 3.2 Gen 2 port(s)(3 x Type-A + USB Type-C) Front USB Port ( Total 9 ) Rear USB Port ( Total 10 ) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) |
| Operating System Support | Windows 10 64-bit |
| Software Features | ROG Exclusive Software – Mem Tweakit – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS Sound Unbound – Overwolf – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – 5-way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app – EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
| ASUS Special Features | ROG Extreme OC kit – FlexKey button – ReTry button – Start button ASUS Q-Design – ASUS Q-Code – ASUS Q-Connector – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink – CrossChill EK III – Steel backplate ASUS EZ DIY – BIOS Flashback button – Clear CMOS button – Procool II – Pre- mounted I/O shield – SafeSlot AURA Sync – ROG Aura sync Armor – Standard RGB header(s) – Addressable Gen 2 RGB header(s) LiveDash OLED 2″ |

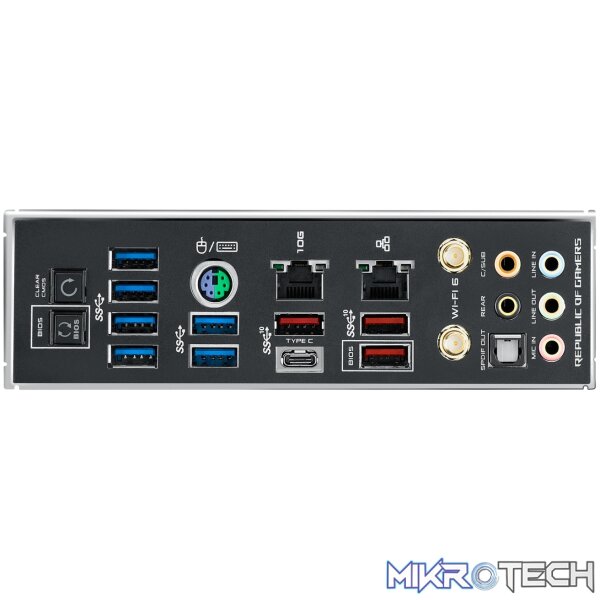

| Back I/O Ports | 1 x Intel I225-V 2.5Gb Ethernet 4 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 1 x USB BIOS FlashBack Button(s) 1 x Aquantia AQC-107 10G LAN port 5 x Gold-plated audio jacks 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 1 x Optical S/PDIF out 1 x PS/2 keyboard/mouse combo port(s) |
| Internal I/O Ports | 3 x W_FLOW header 3 x M.2 Socket 3 1 x FlexKey button 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 2 x W_OUT header 1 x Thunderbolt header(s) 1 x W_IN header 1 x ReTry button 1 x Start button 1 x H_AMP fan connector 1 x W_PUMP+ connector 2 x Addressable Gen 2 header(s) 1 x Thermal sensor connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x CPU Fan connector(s) 1 x AAFP connector 1 x System panel connector 1 x Speaker connector 2 x Aura RGB Strip Headers 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
| Accessories | 1 ROG key chain 1 x Extension Cable for RGB strips (40 cm) Addressable LED extension cable 2 x M.2 Screw Package 1 x ROG logo plate sticker 1 x ROG big sticker 1 x Q-Connector 2 x ROG weave SATA 6G cable 1 x Wi-Fi Antenna(s) 1 x ROG Thank you card 4 x SATA 6Gb/s cable(s) User’s manual 1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Note | *1 Support PCIe bifurcation for RAID on CPU function. *2 The PCIEX16_3 shares bandwidth wih M.2_3. When M.2_3 runs x4 mode, PCIEX16_3 will be disabled. When M.2_3 and PCIEX16_3 are both occupied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode. *3 The PCIEX1 shares bandwidth with M.2_1. When M.2_1 runs x4 mode, PCIEX1 will be disabled. *4 M.2_1 shares bandwidth with PCIEX1. When PCIEX1 is occuppied, M.2_1 runs x2 or SATA mode (when M.2_1 runs SATA mode, SATA6G_2 will be disabled). *5 M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default. *6 M.2_3 shares bandwidth with PCIEX16_3. When PCIEX16_3 runs x4 mode, M.2_3 will be disabled. When M.2_3 and PCIEX16_3 are both occoppied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode. |
