Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE
ASUS GeForce RTX 3050 Phoenix V2 8GB GDDR6 128-bit PCI Express 4.0 Graphics Card
KEY FEATURES:
– Base Clock: 1552MHz
– Boost Clock (OC Mode): 1807 MHz
– CUDA Cores: 2560
– 2nd Gen Ray Tracing Cores
– 3rd Gen Tensor Cores
– Memory: 8GB GDDR6
– Memory Clock: 14Gbps
– NVIDIA Ampere Architecture
– Real-Time Ray Tracing Technology
– NVIDIA DLSS Ground-breaking AI Rendering Technology
– 1 x DisplayPort 1.4a, 1 x HDMI 2.1, 1x DVI-D
– Multi-Display Capability: 3 Displays
– Maximum Digital Resolution: 7680×4320
– Axial-Tech Fan Design
– Dual Ball Fan Bearings
– Auto-Extreme Technology
– 3 Year Warranty
Description
ASUS GeForce RTX 3050 Phoenix V2 8GB GDDR6 128-bit PCI Express 4.0 Graphics Card
PH-RTX3050-8G-V2
90YV0GH8-M0NA00
ASUS Dual GeForce RTX 3050 OC Edition 6GB GDDR6 with two powerful fans AAA gaming performance and ray tracing
Features
- NVIDIA Ampere Streaming Multiprocessors: The all-new Ampere SM brings 2x the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2x the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray-tracing performance.
- 3rd Generation Tensor Cores: Get up to 2x the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- OC edition: Boost Clock 1537 MHz (OC Mode)/ 1507 MHz (Default Mode)
- IP5X dust resistance offers protection from particle ingress for better durability.
- A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- A stainless steel bracket is harder and more resistant to corrosion.
- Auto-Extreme technology uses automation to enhance reliability.
- GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.
2x Fans. 2x Fun.
Featuring the latest NVIDIA Ampere architecture, ASUS Dual GeForce RTX 3050 6G fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
IP5X Dust Resistance
Keep it clean
Dust is enemy number one for fans. It’s easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. Passing the IP5X certification means the housing is safe from nasty particulates, so you’ll never need that deep clean.
2-slot Design
Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Stainless Steel Bracket
Steel yourself
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
144-hour Validation Program
“Extensive” may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
Get Faster Performance with NVIDIA DLSS
Max FPS. Max Quality. Powered by AI.
Get a performance boost with NVIDIA DLSS (Deep Learning Super Sampling). AI-specialized Tensor Cores on GeForce RTX GPUs give your games a speed boost with uncompromised image quality. This lets you crank up the settings and resolution for an even better visual experience.
Ray Tracing
Ray tracing simulates how light behaves in the real world to produce the most realistic and immersive graphics for gamers and creators. GeForce RTX 30 Series has RT Cores for enhanced ray tracing performance.
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ASUS Phoenix |
| Model | RTX 3050 V2 (PH-RTX3050-8G-V2) |
| Chipset | |
| GPU | GeForce RTX 3050 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCI-E 4.0 x8 |
| Base Clock | 1552 MHz |
| Boost Clock | OC mode: 1807 MHz |
| Gaming mode: 1777 MHz | |
| CUDA Cores | 2560 |
| GPU Architecture | NVIDIA Ampere |
| Memory | |
| Effective Memory Clock | 14Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |

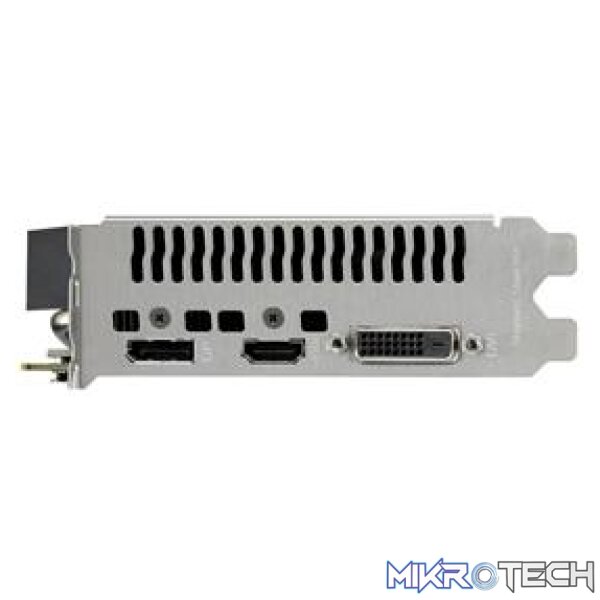

| Ports | 1x DisplayPort 1.4a |
| 1x HDMI 2.1 | |
| 1x DVI-D | |
| HDCP Support | Yes, v2.3 |
| Multi-Monitor Support | 3 |
| Maximum Digital Resolution | 7680 x 4320 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | Dual Ball Fan Bearings |
| GPU Tweak III | |
| Axial-Tech Fan Design | |
| Auto-Extreme Technology | |
| 2nd Gen Ray Tracing Cores | |
| 3rd Gen Tensor Cores | |
| PCI Express Gen 4 | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS | |
| NVIDIA GeForce Experience | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA G-SYNC | |
| Game Ready Drivers | |
| NVIDIA Studio Drivers | |
| NVIDIA GPU Boost | |
| NVIDIA Encoder, 7th Generation | |
| NVIDIA Decoder, 5th Generation | |
| Power Requirements | |
| Recommended Power Supply | 550W |
| Power Connector | 1x 6-pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | Dual Slot |
| Dimensions | 178mm x 128mm x 40mm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
