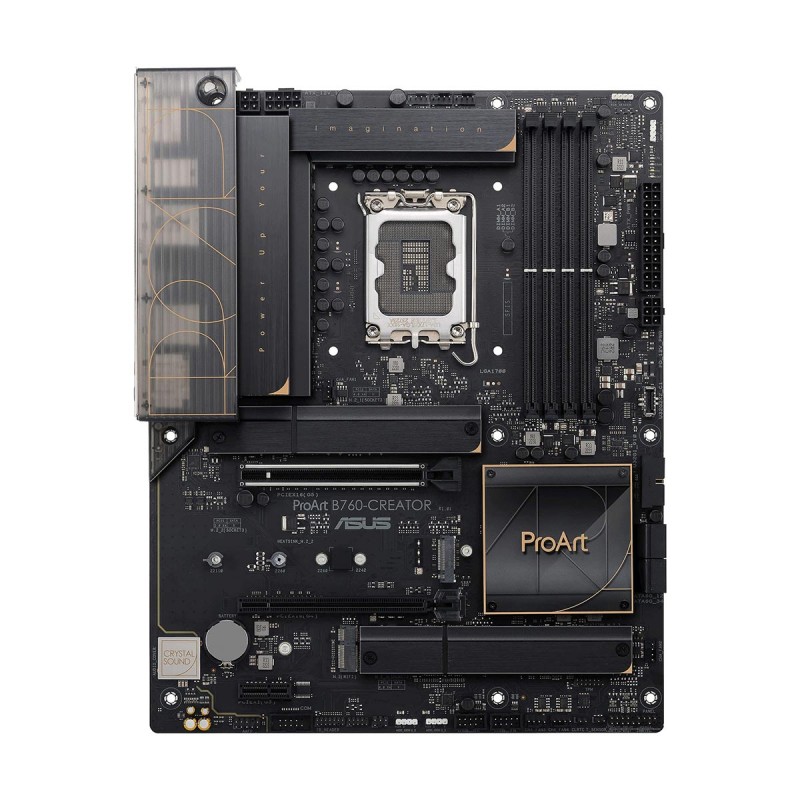

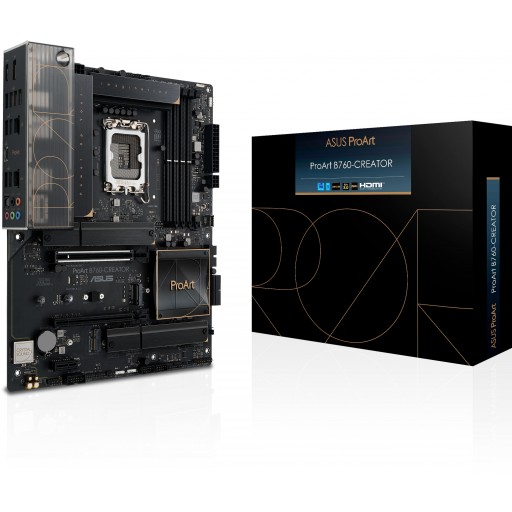

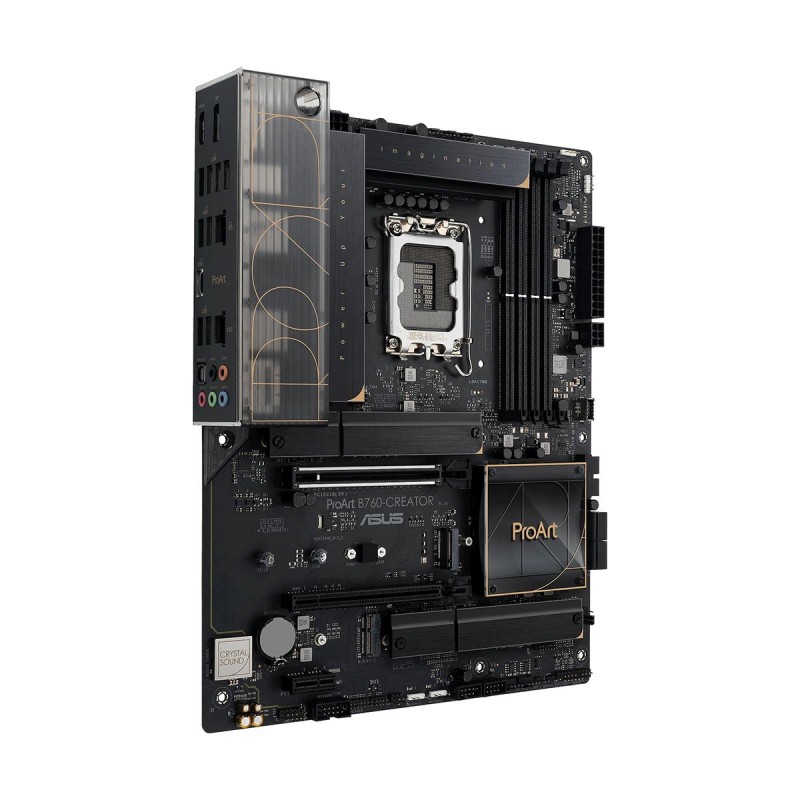

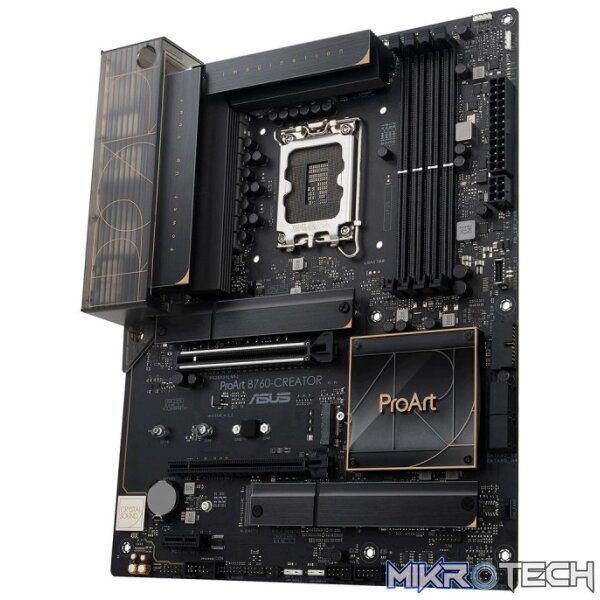

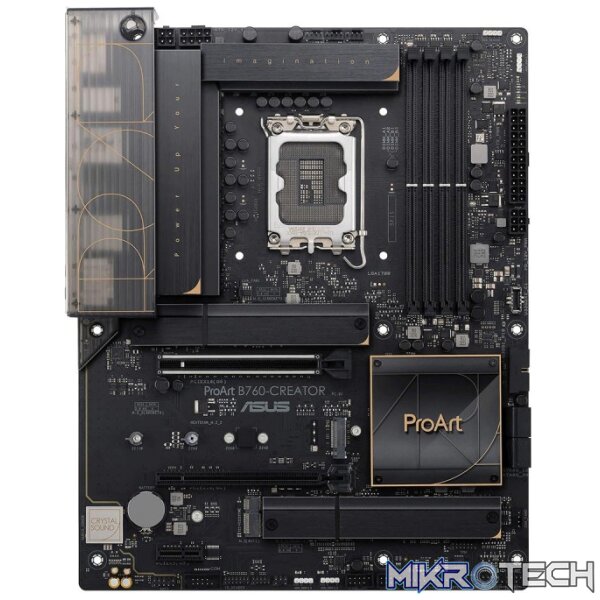

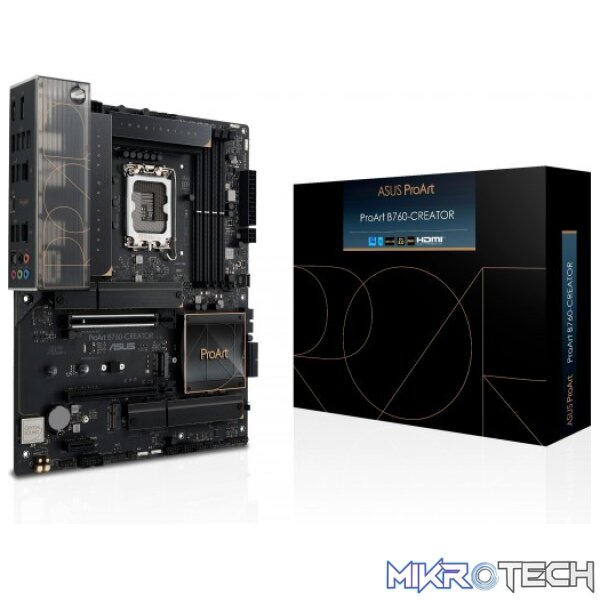

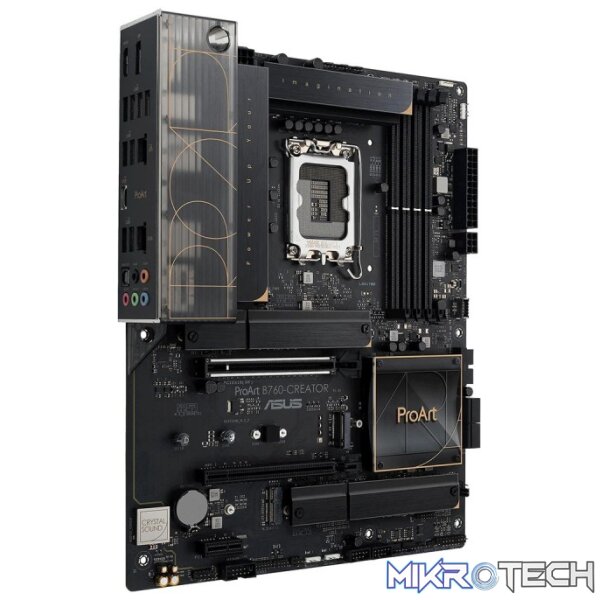

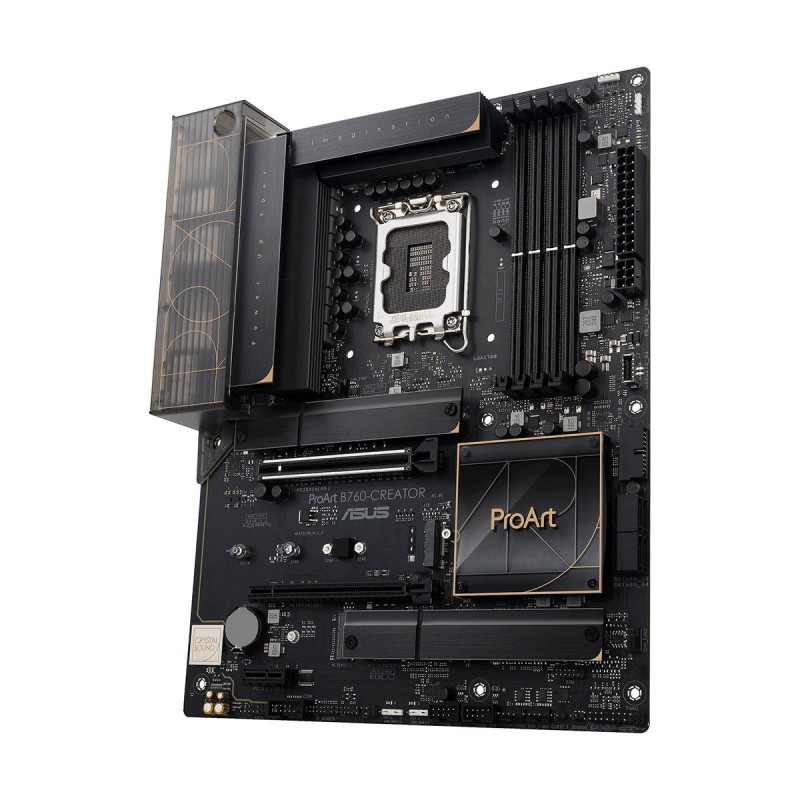

ASUS ProArt B760-CREATOR DDR5 ATX Motherboard
KEY FEATURES:
– ATX Form Factor
– Intel B760 Chipset
– Socket LGA 1700
– 4x DDR5 DIMM Slots, Supports Up To 192GB
– ASUS OptiMem II
– Supports Intel Extreme Memory Profile (XMP)
– 1x PCIe 5.0 X16 Slot
– 1x PCIe 4.0 x16 Slot (Supports X4 Mode)
– 1x PCIe 3.0 x1 Slot
– 3x M.2 slots, 4x SATA 3.0 6.0Gbps Ports
– 1x USB 3.2 Gen 2 Type-C Port
– 4x USB 3.2 Gen 1 Type-A Ports, 4x USB 2.0 Type-A Ports
– M.2 E-Key Slot (Wi-Fi module is sold separately.)
– 12+1 Power Stages (50A)
– ASUS 5X PROTECTION III
– ASUS Q-Design
– ASUS Thermal Solution
– ASUS EZ DIY
– AURA Sync
– Q-LED
– M.2 Q-Latch
– 5 Year Warranty
Description
ASUS ProArt B760-CREATOR DDR5 ATX Motherboard
ASUS PROART B760-CREATOR
90MB1F20-M0EAY0
Elevate your creative workload with the ASUS ProArt B760?CREATOR DDR5 ATX motherboard, expertly designed for content creators and professionals. Built to unleash the power of 12th, 13th, and even 14th Gen Intel Core processors, this board features support for ultra-fast DDR5 memory, PCIe 5.0 graphics compatibility, and a comprehensive I/O suite—including 2.5 Gb and 1 Gb Ethernet. Whether you’re editing 4K/8K footage, working with complex render engines, or driving multiple high-bandwidth peripherals, the B760?CREATOR delivers the stability, speed, and creative control you need.
SPECIFICATIONS | |
| Brand | ASUS |
| Series | ProArt B760 |
| Model | ProArt B760-CREATOR DDR5 |
| CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 10 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel B760 Chipset |
| Memory | 1 x HDMTM port** |
| 1 x DisplayPort port*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Support 4K@60Hz as specified in HDMI 2.1. | |
| *** Support max. 8K@60Hz as specified in DisplayPort 1.4. | |
| Expansion Slots | Intel 13th & 12th Gen Processors |
| 1 x PCIe 5.0/4.0/3.0 x16 slot | |
| Intel B760 Chipset* | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot** | |
| ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. | |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* |
| Intel 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| – Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel B760 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports*** | |
| * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| 1 x Intel 1Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* |
| *Wi-Fi module is sold separately. | |
| USB | Rear USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2 (10G) Type-C port | |
| 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2×2 (20G) connector (supports USB Type-C with 60W PD/QC4+) | |
| 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| – Audio cover | |
| – Unique de-pop circuit | |

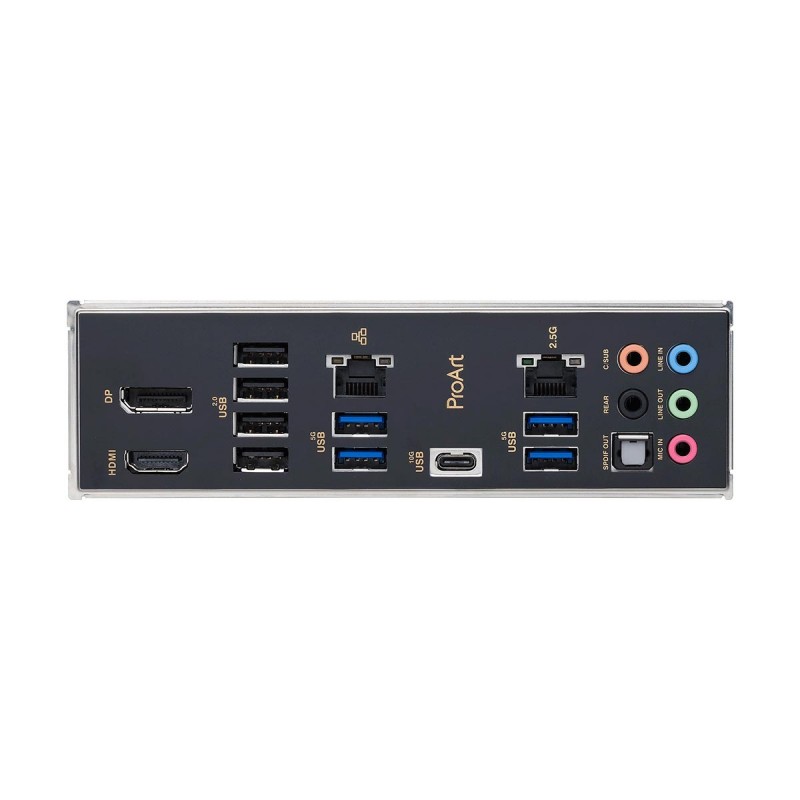

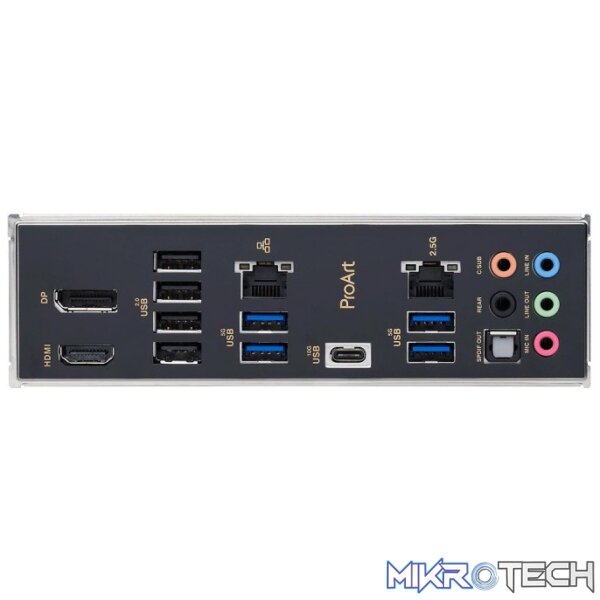

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 (10G) port (1 x USB Type-C) |
| 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 1 x Intel 1Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| 1 x 6-pin PD_12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2×2 (20G) connector (supports USB Type-C with 60W PD/QC4+) | |
| 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x M.2 slot (Key E) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Special Features | ASUS 5X PROTECTION III |
| – DIGI+ VRM (- Digital power design with DrMOS) | |
| – Enhanced DRAM Overcurrent Protection | |
| – ESD Guards | |
| – LANGuard | |
| – Overvoltage Protection | |
| – SafeSlot | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – Q-Connector | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – Flexible M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – ProCool | |
| – Pre-mounted I/O shield | |
| AURA Sync | |
| – AURA RGB header | |
| – Addressable Gen 2 headers | |
| BIOS | 128 Mb |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm | |
| Warranty Information | |
| Warranty | 5 Year Warranty |
