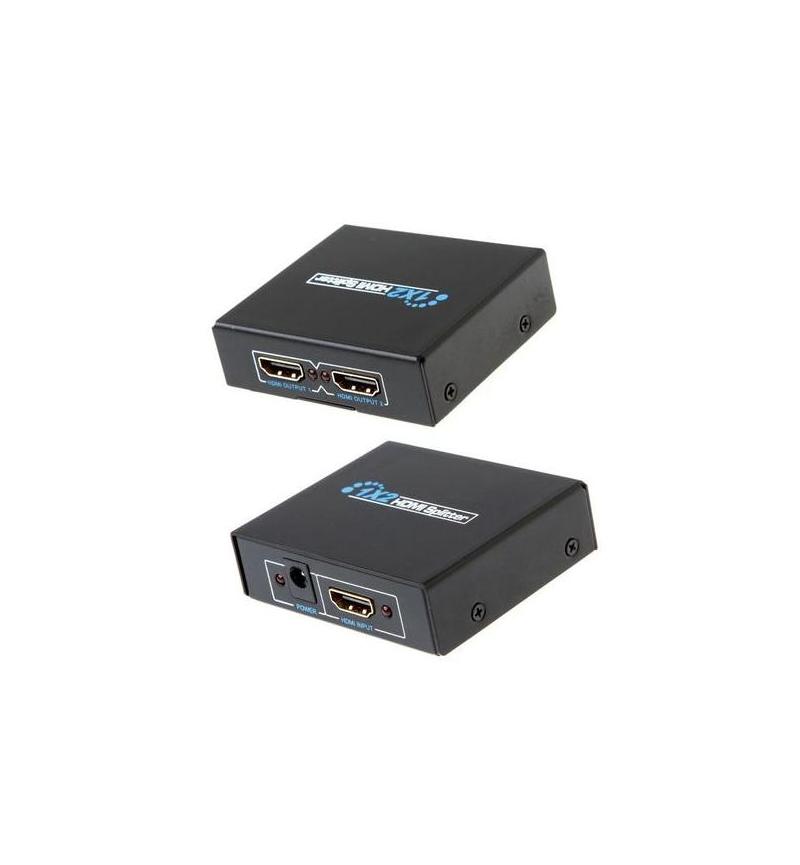

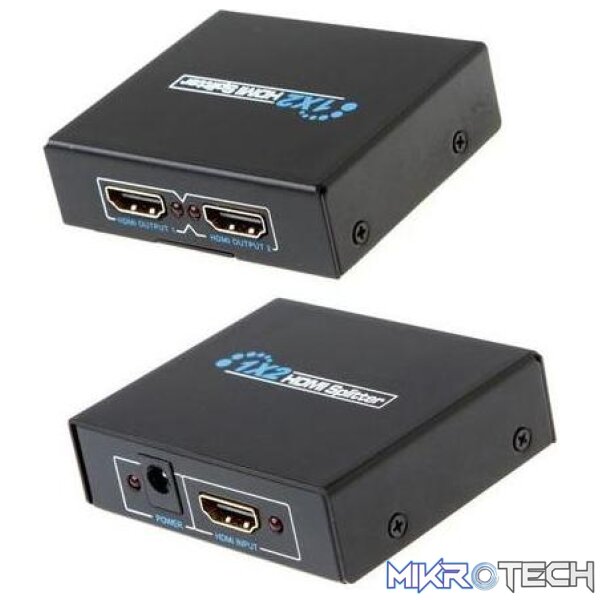

2 Port Hdmi Splitter

2 PORT HDMI SPLITTER – 1IN2OUTHDMI

FY1409E 1 x 2 HDMI 4K x 2K Splitter

This 1 x 2 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks

It allows one HDMI Device to be Split easily to four HDMI Compatible Monitors or Projectors

In addition,It can also be placed at the end of a long HDMI Cable to regenerate the HDMI Signal

The Resolution of this HDMI Splitter can be up to 3840 x 2160/30HZ

Features

Support HDMI 1.4b Version

Support 3D Video Format

Support High Resolution up to 3840 x 2160/30HZ

Support Highest Rate of 3.2 G and TMDS Clock can be up to 320 MHz

Support 8/10/12 Bit deep color

Support AWG26 HDMI Standard Cable: Input up to 15 Meters, Output up to 25 meters

 (when the Resolution is 4K, Input up to 12 Meters, Output up to 15 Meters)

Support one single HDMI source accessing to multiple HDMI sinks

The source can be DVD Player, A/V receiver, set top box and etc.

5V/2A Power Adapter

Specifications:

Specifications:

HDMI Version: HDMI 1.4b

HDMI Resolution: Up to 3840 x 2160/30Hz

Support Video Format: 8/10/12 bit deep color

Support Audio Format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD

Max Bandwidth: 320MHz

Max Band Rate: 3.2Gbps

Input Cable Distance: (1080p resolution) =15m, (4K resolution)=12m AWG26 HDMI standard cable

Output Cable Distance: (1080p resolution) =25m, (4K resolution)=15m AWG26 HDMI standard cable

Max Working Current: 500mA

Power Adapter Format: Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A

Operating Temperature Range:  (-15 to +55?)

Dimension (L x W x H): 178x66x20 (mm)

Weight: 220g

Connection and Operation

Connect the HD source to the Splitter input with one HDMI Cable

Connect the splitter output to the displays with 4 HDMI Cables

Connect 5V/2A Power Adapter to the Splitter

Package Include

HDMI Splitter

Power Adapter

User Manual
