Product Description
Overview:

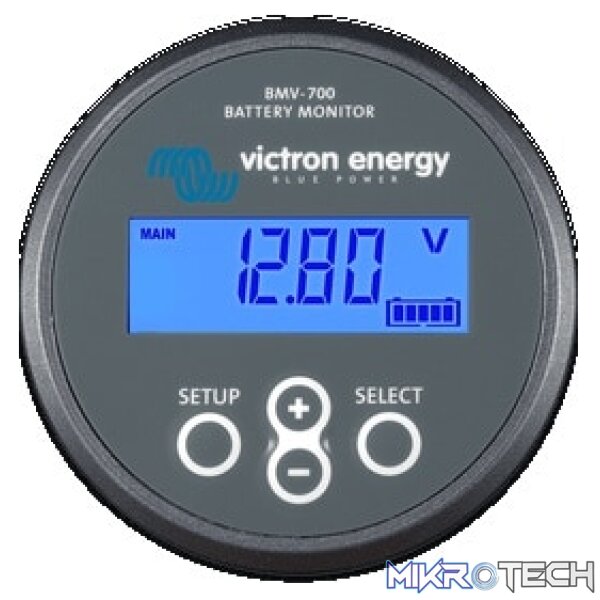

BMV-700 series
The BMV-700 is our newest high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Features:
Standard features
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10.000 Amps
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6,5 – 95V
- High current measurement resolution: 10 mA (0,01A)
- Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
Product Specifications
| Weight | 1.80 kg |
|---|---|
| Dimensions | 28.000000 × 23.000000 × 7.000000 cm |
| Supply voltage range | 6,5 – 95 VDC |
| Current draw, back light off | 4mA |
| Input voltage range, auxiliary battery | n. a. |
| Battery capacity (Ah) | 1 – 9999 Ah |
| Operating temperature range | -40 +50°C (-40 – 120°F) |
| Measures voltage of second battery, or temperature, or midpoint | No |
| Temperature measurement range | -20 +50°C |
| VE.Direct communication port | Yes |
| Relay | 60V / 1A normally open (function can be inverted) |
| Current | ± 0,01A |
| Voltage | ± 0,01V |
| Amp hours | ± 0,1 Ah |
| State of charge (0 - 100%) | ± 0,1% |
| Time to go | ± 1 min |
| Temperature (0 - 50°C or 30 - 120°F) | n. a. |
| Accuracy of current measurement | ± 0,4% |
| Accuracy of voltage measurement | ± 0,3% |
| Installation | Flush mount |
| Front | 63mm diameter |
| Front bezel | 69 x 69mm (2.7 x 2.7 inch) |
| Body diameter | 52mm (2.0 inch) |
| Body depth | 31mm (1.2 inch) STANDARDS |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Automotive | ECE R10-4 / EN 50498 ACCESSORIES |
| Shunt (included) | 500A / 50mV |
| Cables (included) | 10 meter 6 core UTP with RJ12 connectors |
| Temperature sensor | and cable with fuse for ‘+’ connection Optional (ASS000100000) |
