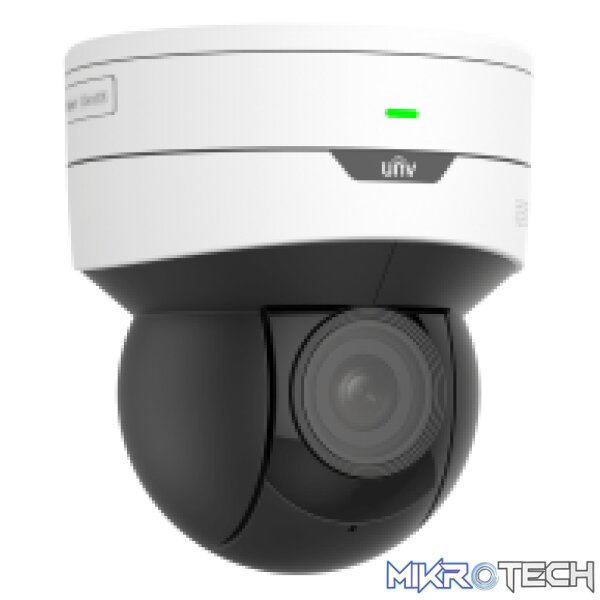

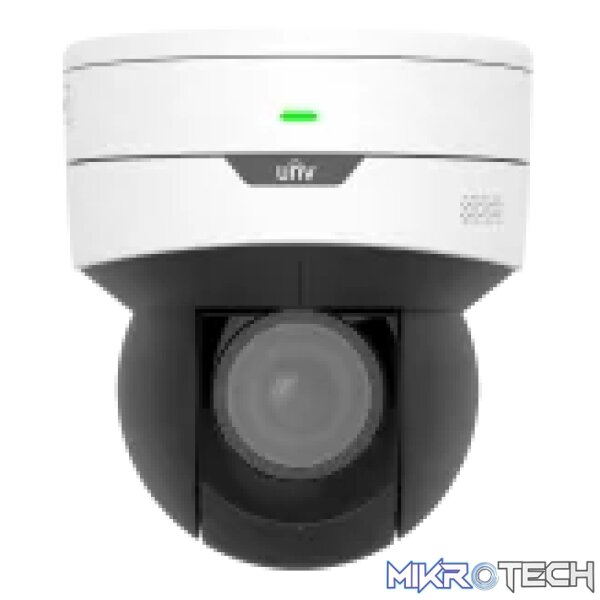

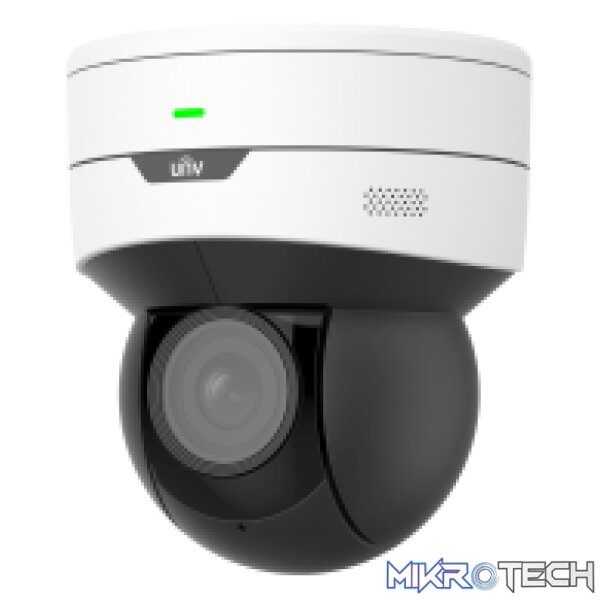

Uniview UNV – Ultra H.265 5MP WDR starlight IR Network indoor mini PTZ with 5x optical Zoom

R4,349.99 incl. VAT

Out of stock

Compare

Join the waitlist to be emailed when this product becomes available

Product ID: 219929 Category:
Product Description

Overview:

IPC6415SR-X5UPW
5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera

  • 1/2.7″,progressive scan,CMOS
  • 2592×1944 resolution,30fps
  • 2.7~13.5mm, AF automatic focusing and motorized zoom lens
  • Ultra 265,H.265, H.264, MJPEG
  • Built-in microphone & speaker
  • Smart IR, up to 30m IR distance
  • 2D/3D DNR, ROI
  • Support 1/1 Alarm in/out,1 Serial port RS485
  • DC12V, Wide voltage range of ±25%,PoE
  • Support WIFI

Features:

Optics

  • Starlight illumination
  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Built-in microphone & speaker
  • Triple streams
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -10°C to 50°C (14°F to 122°F)
  • Wide voltage range of ±25%
Product Specifications
Product Specifications
Item

IPC6415SR-X5UPW

Sensor

1/2.7" progressive scan, 5.0 megapixel, CMOS

Lens

2.7~13.5mm, AF automatic focusing and motorized zoom lens

Angle of View (H)

27.9°~98.3°

Angle of View (V)

20.6°~70.3°

Angle of View (O)

30.0°~136.9°

Shutter

Auto/Manual, shutter time: 1 s ~ 1/100000 s

Minimum Illumination

Colour: 0.002 lux (F1.2, AGC ON)
0 lux with IR

Iris

F1.2

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

55 dB

IR Range

UP to 30m (98ft)

WDR

120dB

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream:5M (2592*1944):Max. 30 fps
Sub Stream: 720P (1280×720):Max. 30 fps
Third Stream: D1 (720×576): Max. 30 fps

BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8 KHZ

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL

Compatible Integration

ONVIF(Profile S, Profile G), API

Pan Range

350°

Pan Speed

0.1°/s ~ 60°/s
Preset speed: 60°/s

Tilt Range

0° ~ 90°

Tilt Speed

0.1° ~ 50°/s
Preset speed: 50°/s

Number of Presets

1024

Home Position

Supported

Alarm I/O

01-Jan

Serial Port

1 RS485

Network

1 RJ45 10M/100M Base-TX Ethernet

Built-in Mic

Supported

Built-in Speaker

Supported

WIFI

Supported

Power

DC 12V±25%, PoE (IEEE802.3 at)
Power consumption: Max 16W

Dimensions (Ø x H)

Ø129mmx143mm(Ø5.07" x5.63")

Weight

0.75kg(1.65lb)

Working Environment

-10°C ~ +50°C (14°F ~ 122°F), Humidity:?95% RH(non-condensing)

Reset Button

Supported

Weight

0.96 kg

Dimensions

15.000000 × 14.000000 × 18.000000 cm
