Product Description
Overview:
IPC3635SB-ADZK-I0

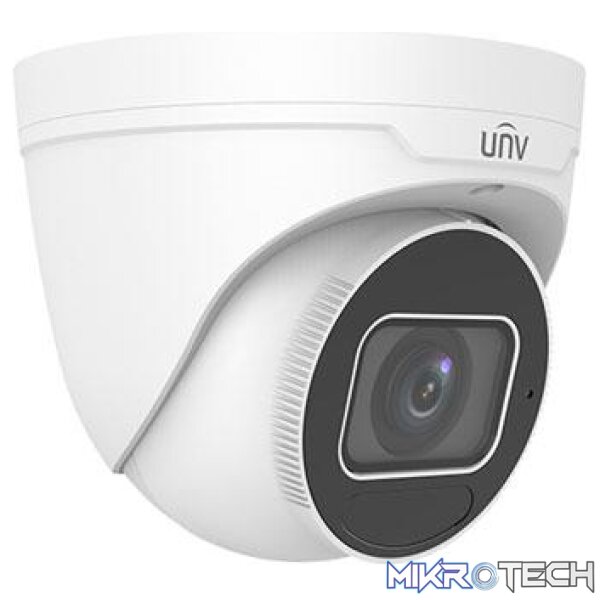

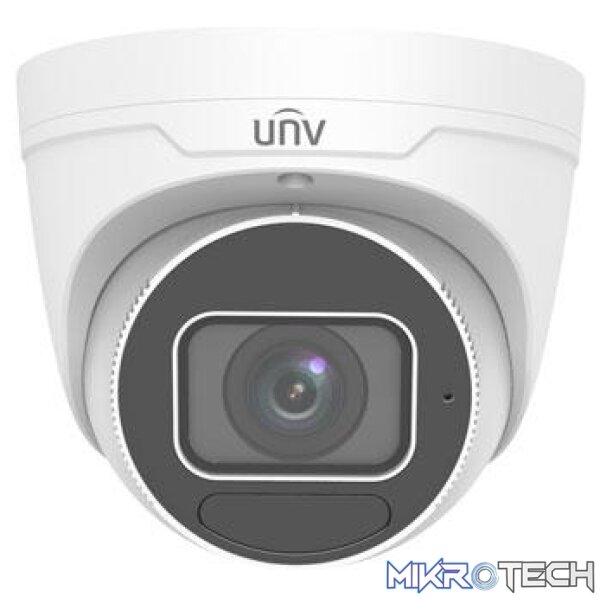

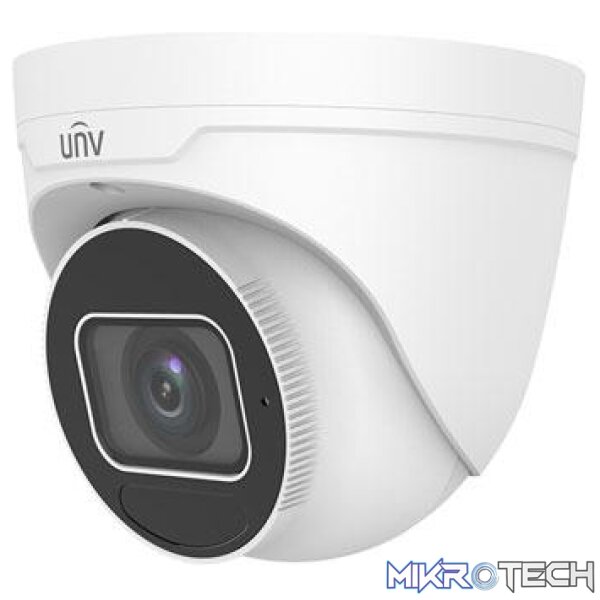

5MP HD LightHunter IR VF Eyeball Network Camera
- High quality image with 5MP, 1/2.7″CMOS sensor
- 5MP (28801620)@25fps; 4MP (25601440)@25fps; 3MP (23041296) @25fps; 2MP (19201080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
Product Specifications
| Weight | 0.82 kg |
|---|---|
| Dimensions | 14.000000 × 14.000000 × 15.000000 cm |
| Item | IPC3635SB-ADZK-I0 |
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens |
| Angle of view (H) | 106.25°~ 30.42° |
| Angle of View (V) | 56.36°~ 17.22° |
| Angle of View (O) | 110.34°~34.18° |
| Adjustment angle | Pan: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N | 56dB |
| IR Range | Up to 40m (131ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream:5MP (2880*1620), Max 25fps, 4MP (2560*1440), Max 25fps, 3MP (2304*1296), Max 25fps, 1080P (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps, D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR | Support |
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet”3″ style=”bord |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 7.0 W |
| Dimensions (Ø x H) | Ø129 x 110mm (Ø5.1″ x 4.3″) |
| Net Weight | 0.70kg (1.52lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Surge Protection | 6KV |
| Ingress Protection | IP67 |
| vandal resistant | IK10 |
| Reset Button | Supported |
