Product Description
Overview:
PC2225SE-DF40(60)K-WL-I0

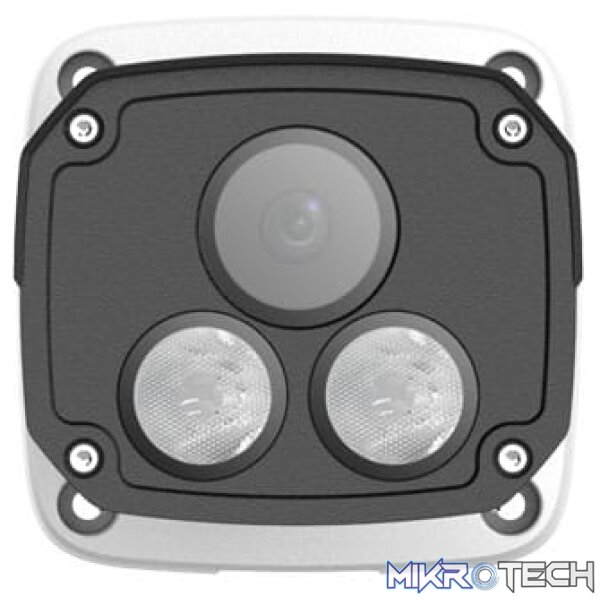

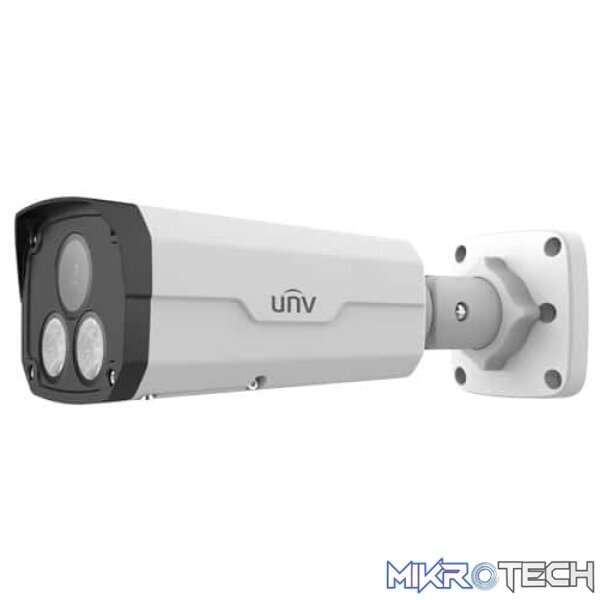

5MP HD ColorHunter Fixed Bullet Network Camera
- High quality image with 5MP, 1/2.7″CMOS sensor
- 5MP (28801620)@30/25fps; 4MP (25601440)@30/25fps;3MP (23041296)@30/25fps; 2MP (19201080)@ 30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter technology ensures 24-hour full-color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Supports 256 G micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
Product Specifications
| Weight | 1.10 kg |
|---|---|
| Dimensions | 30.000000 × 13.000000 × 13.000000 cm |
| Camera | IPC2225SE-DF40K-WL-I0 |
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.0 |
| Angle of View (H) | 80.2° |
| Angle of View (V) | 43.0° |
| Angle of View (O) | 94.7° |
| Adjustment angle | Pan: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.001Lux (F1.0, AGC ON) |
| S/N | 56dB |
| Defog | Digital Defog |
| WDR | 120dB |
| LEDs Number | 2 |
| LED Distance | Up to 30m (98ft) |
| Video Compression | Ultra265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps, 4MP (2560*1440), Max 30fps, 3MP (2304*1296), Max 30fps, 2MP (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps, D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF (704*288), Max 30fps, CIF (352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF (704*288), Max 30fps, CIF (352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise |
| Dewarping | NA |
| HLC | Support |
| BLC | Support |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Audio I/O | Input: impedance 35k?, amplitude 2V [p-p] Output: impedance 600?, amplitude 2V [p-p] |
| Alarm I/O | 01-Jan |
| Network | 1 RJ45 10M/100M Base-TX Ethernet”3″ style=”bord |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W |
| Dimensions (L x W x H) | 246x 86 x 85mm (9.7″ x 3.4″ x 3.3″) |
| Net Weight | 0.92kg (2.02lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| surge protection | 4KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | NA |
