Product Description
Overview:

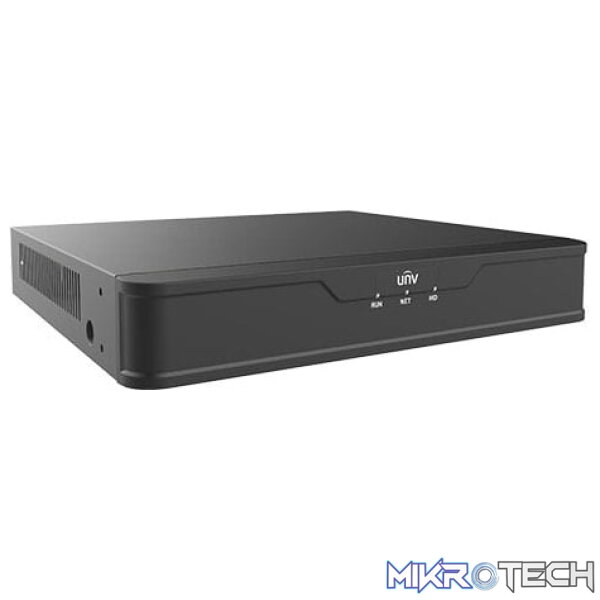

NVR301-S3-P Series – 4/8 Channel 1 HDD NVR
- Support Ultra265/H.265/H.264 video formats
- 4/8-channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- Up to 4K resolution recording
- 1 SATA HDDs, up to 6 TB
- Support cloud upgrade
Product Specifications
| Weight | 1.80 kg |
|---|---|
| Dimensions | 44.000000 × 8.000000 × 29.000000 cm |
| Model | NVR301-04S3-P4 |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| HDMI/VGA Output | HDMI: 3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 04-Mar |
| Decoding format | Ultra265/H.265/H.264 |
| Live view/Playback | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 |
| SATA | 1 SATA interfaces |
| Capacity | Up to 6TB for each disk |
| Network Interface | 1 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Interface | 4 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Power Supply | 48V DC Power Consumption: ?9 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing) |
| Dimensions (WxDxH) | 260mm x240mm x 46 mm (10.2″ x 9.4″ x1.8″) |
| Weight (without HDD) | ?1.1kg (2.43lb) |
