Product Description
Overview:
IPC322SB-DF28(40)K-I0

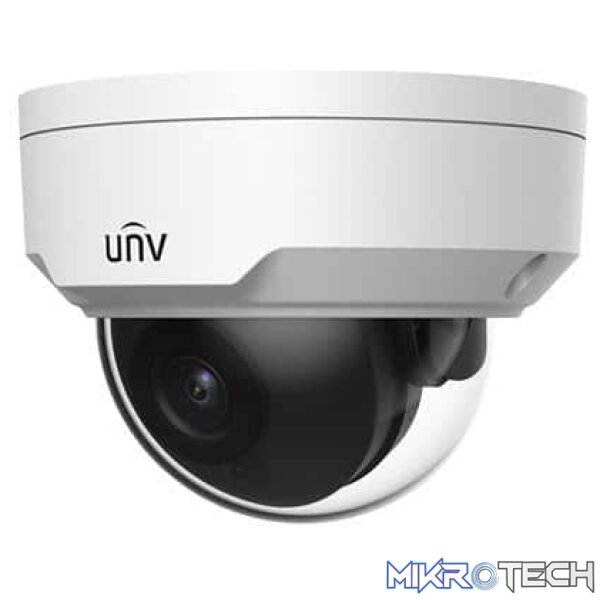

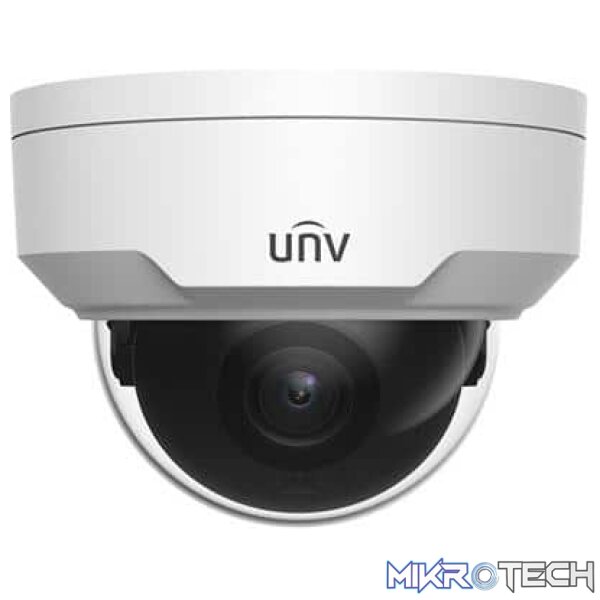

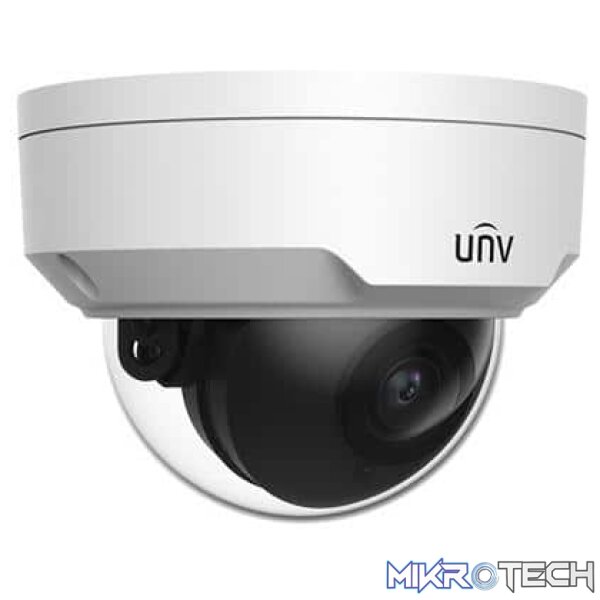

2MP HD LightHunter IR Fixed Dome Network Camera
- High quality imaging with 2MP, 1/2.8″CMOS sensor
- 2MP (19201080)@30/25fps; 720P (1280720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
Product Specifications
| Weight | 0.58 kg |
|---|---|
| Dimensions | 14.000000 × 13.000000 × 14.000000 cm |
| Item | IPC322SB-DF40K-I0 |
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.6 |
| Angle of View (H) | 87.5° |
| Angle of View (V) | 46.3° |
| Angle of View (O) | 92.4° |
| Adjustment angle | Pan: 3° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour:0.001 Lux (F1.6, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | 52dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps, 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps, D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Audio I/O | 1 Input: impedance 35k?, amplitude 2V [p-p] 1 Output: impedance 600?, amplitude 2V [p-p] |
| Alarm I/O | 01-Jan |
| Network | 1 RJ45 10M/100M Base-TX Ethernet”3″ style=”bord |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
| Dimensions (Ø x H) | Ø108.7 x 81.1mm (Ø4.3″ x 3.2″) |
| Net Weight | 0.42kg (0.93lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
