Product Description
Overview:

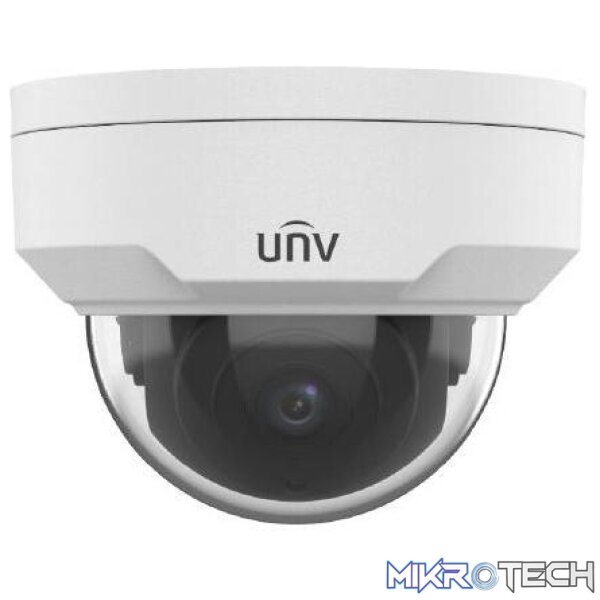

UNV – Ultra H.265 – 2MP Vandal-resistant Mini Fixed Dome Camera (Supports up to 30 FPS)
- High quality image with 2MP, 1/2.8″CMOS sensor
- 2MP (19201080)@30/25fps; 720P (1280720)@30/25fps
- Ultra 265, H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- IP67 protection
- IK10 vandal resistant
- Support PoE power supply
- 2-Axis
Product Specifications
| Weight | 0.48 kg |
|---|---|
| Dimensions | 14.000000 × 14.000000 × 14.000000 cm |
| Camera | IPC322LB-SF40-A |
| Sensor | 1/2.8″, progressive scan, 2.0 megapixel, CMOS |
| Lens | 4.0mm@F2.0 |
| Angle of View (H) | 87.5° |
| Angle of View (V) | 46.3° |
| Adjustment angle | Pan: 3°~ 360° Tilt: 0°~ 68° Rotate: 3°~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | 52dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | DWDR |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps, 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps, 640*360, Max 30fps, 2CIF(704*288), Max 30fps, CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| Compatible Integration | API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Network | 10/100M Base-TX Ethernet |
| - | CE: EN 60950-1 |
| Certifications | UL: UL60950-1 FCC: FCC Part 15 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
| Dimensions (Ø x H) | Ø109 x 81mm (Ø4.3″ x 3.2″) |
| Net Weight | 0.35kg (0.77lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | N/A |
