Product Description
Overview:

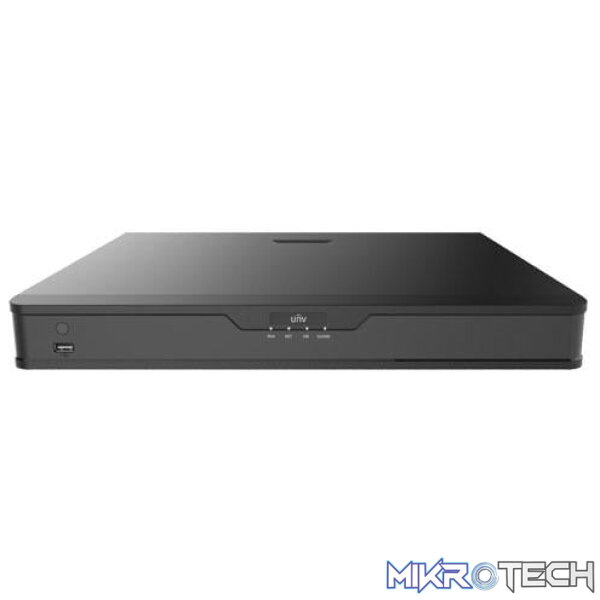

NVR302-09/16S2
9/16 Channel 2 HDD NVR
- Support Ultra265/H.265/H.264 video formats
- 9/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 2 SATA HDDs, up to 6TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Product Specifications
| Weight | 2.90 kg |
|---|---|
| Dimensions | 53.000000 × 11.000000 × 40.000000 cm |
| Model | NVR302-16S2 |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| HDMI/VGA Output | HDMI: 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1280×720@60, 1024×768@60 |
| Audio Output | 1-ch, RCA |
| Recording Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding format | Ultra265/H.265/H.264 |
| Live view/Playback | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30 |
| SATA | 2 SATA interfaces |
| Capacity | up to 6TB for each disk |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0 |
| Power Supply | 12V DC Power Consumption: ? 15 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing) |
| Dimensions (WxDxH) | 380mm x 315mm x53mm (15.0″ x 12.4″ x2.1″) |
| Weight (without HDD) | ? 0.98Kg (2.16lb) |
