Product Description
Overview:

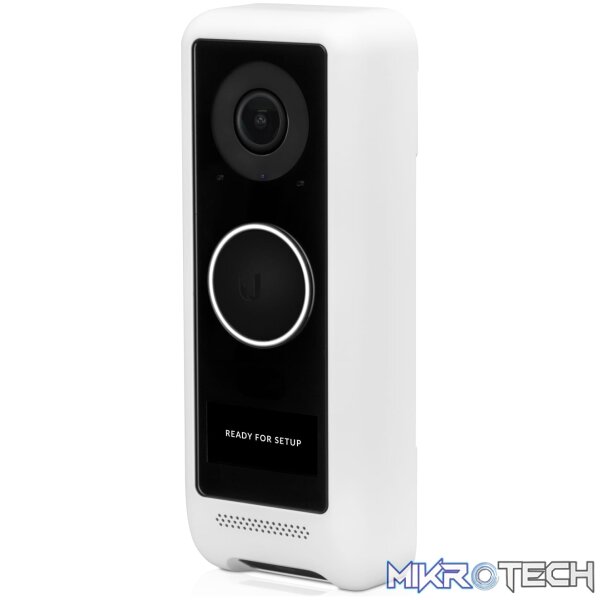

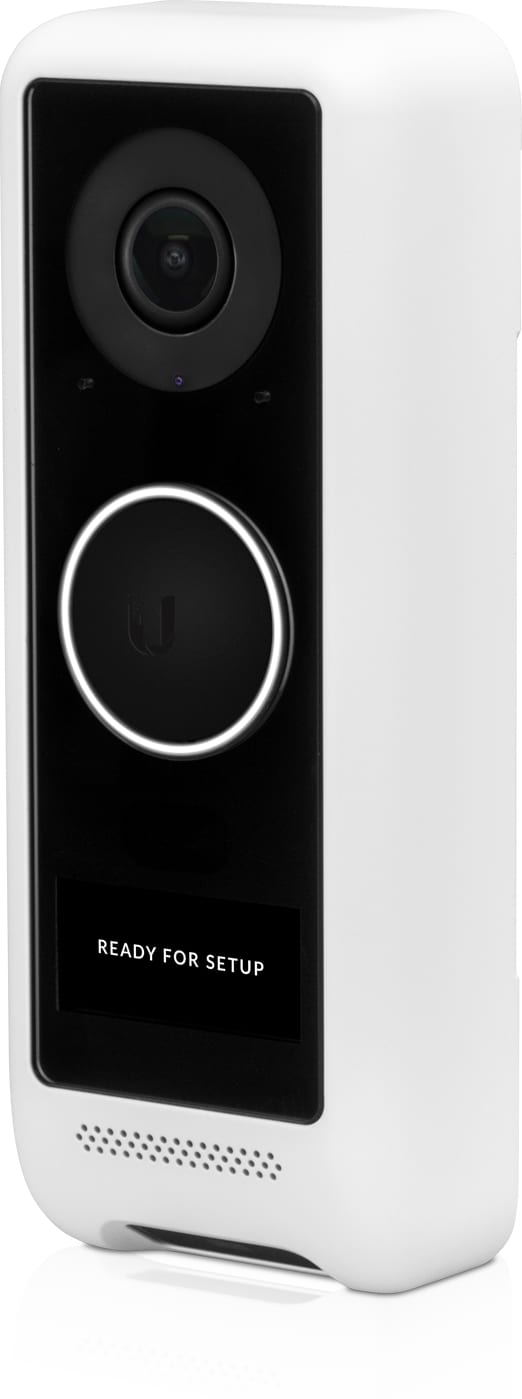

UniFi Protect G4 Doorbell
SKU: UVC-G4-DoorBell
UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.
The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600×1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.
Features:
- 1600×1200 (2MP) HD stream with night vision
- Integrated entrance lighting
- Real-time two-way audio with echo cancellation
- Built-in display
- Dual-band 802.11ac Wi-Fi
- PIR motion detection sensor
- Weather-resistant
- UniFi Protect integration
Product Specifications
| Weight | 0.90 kg |
|---|---|
| Dimensions | 16.000000 × 13.000000 × 9.000000 cm |
| Dimensions | 118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02″) |
| Without Mount | 130 g (4.59 oz) |
| With Flat Wall Mount | 178 g (6.28 oz) |
| With 20° Wedge Mount | 200 g (7.05 oz) |
| Enclosure Material | Polycarbonate |
| Mount Materials | Flat Wall Mount: Aluminum Alloy 20° Wedge Mount: Polycarbonate |
| Weatherproofing | IPX4 |
| Sensor | 5 MP CMOS Sensor |
| Lens | Fixed Focal Length |
| View Angle | H: 138°, V: 114°, D: 155° |
| Night Mode | Built-in IR LED Illumination and IR Cut Filter |
| Video Compression | H.264 |
| Resolution | 1600 x 1200 (4:3) |
| Maximum Frame Rate | 30 FPS |
| Processor Specs | Ambarella Advanced Image Processing SoC |
| Memory Information | 512 MB |
| Mangement Interface | UniFi Protect |
| Networking Interface | 802.11 ac Wi-Fi |
| Flash Memory Support | 256 MB |
| Max. Power Consumption | 12VA |
| Power Requirements | 16-24VAC, 20VA |
| Link/Activity LED | Yes |
| Button | Factory Reset |

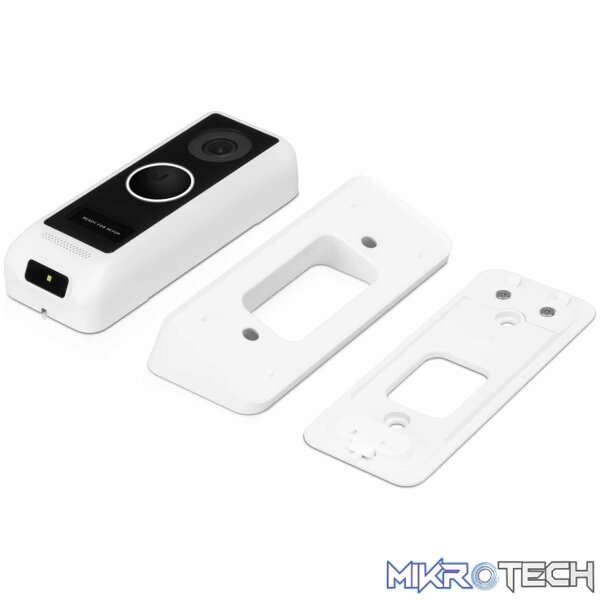

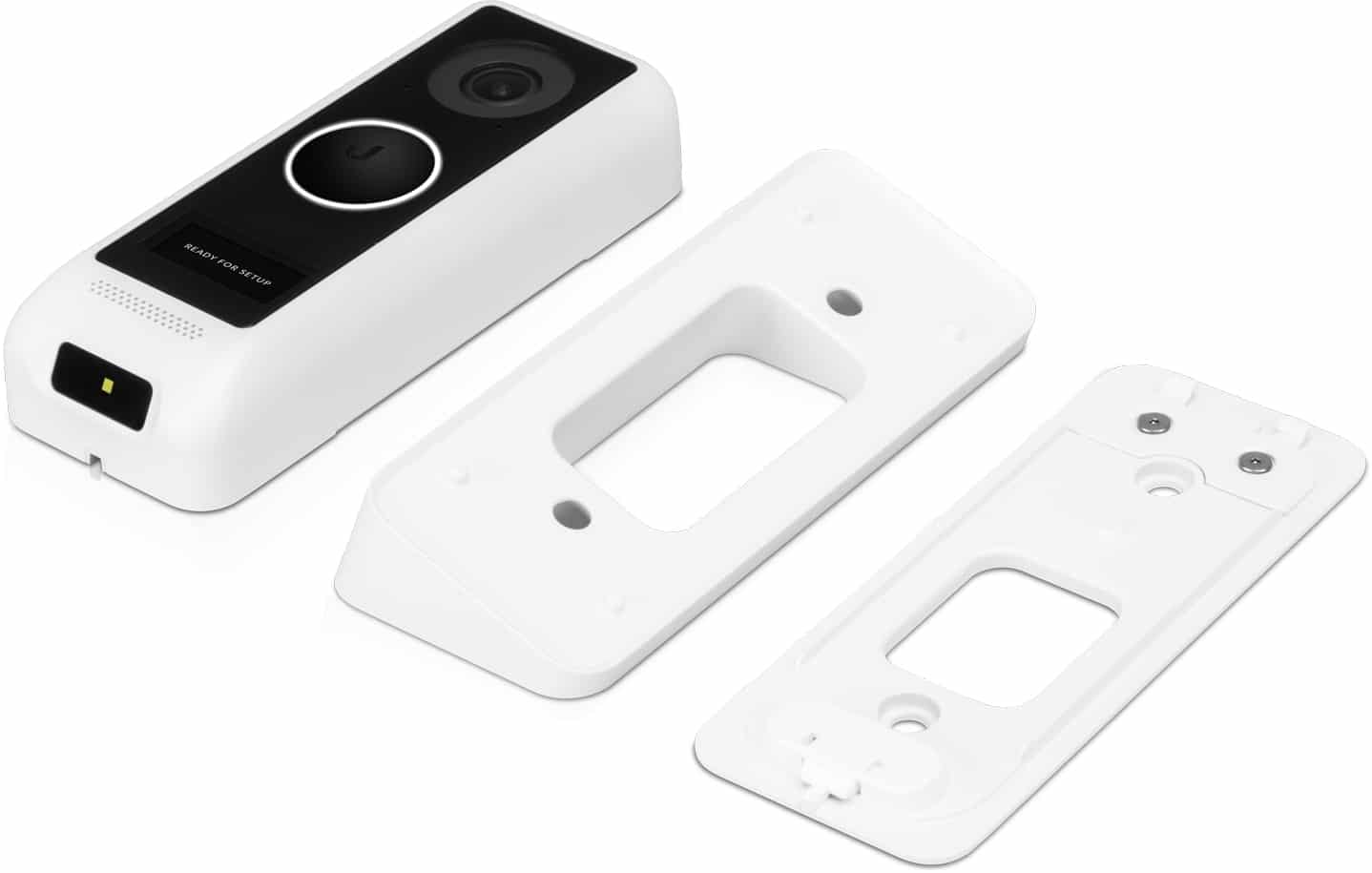

| Mounting | Flat Wall/20° Wedge (Kits Included) |
| Operating Temperature | -10 to 40º C (14 to 104º F) |
| Operating Humidity | 0 to 90% Noncondensing |
| Certifications | FCC, IC, CE |
| Microphone | Yes (Can be Disabled in Software) |
| Speaker | Yes |
| Controller Software | UniFi Protect |
| Mobile Apps | UniFi Protect iOS and Android |
| Heath Zenith | SL-2735 |
| Craftmade | CTPW-RG |
| Newhouse Hardware | CHM3D |
| Manufacturer | Model |
| Broan-NuTone | LA600WH |
| IQ AMERICA | DW-2840 |
